Seat Warmer

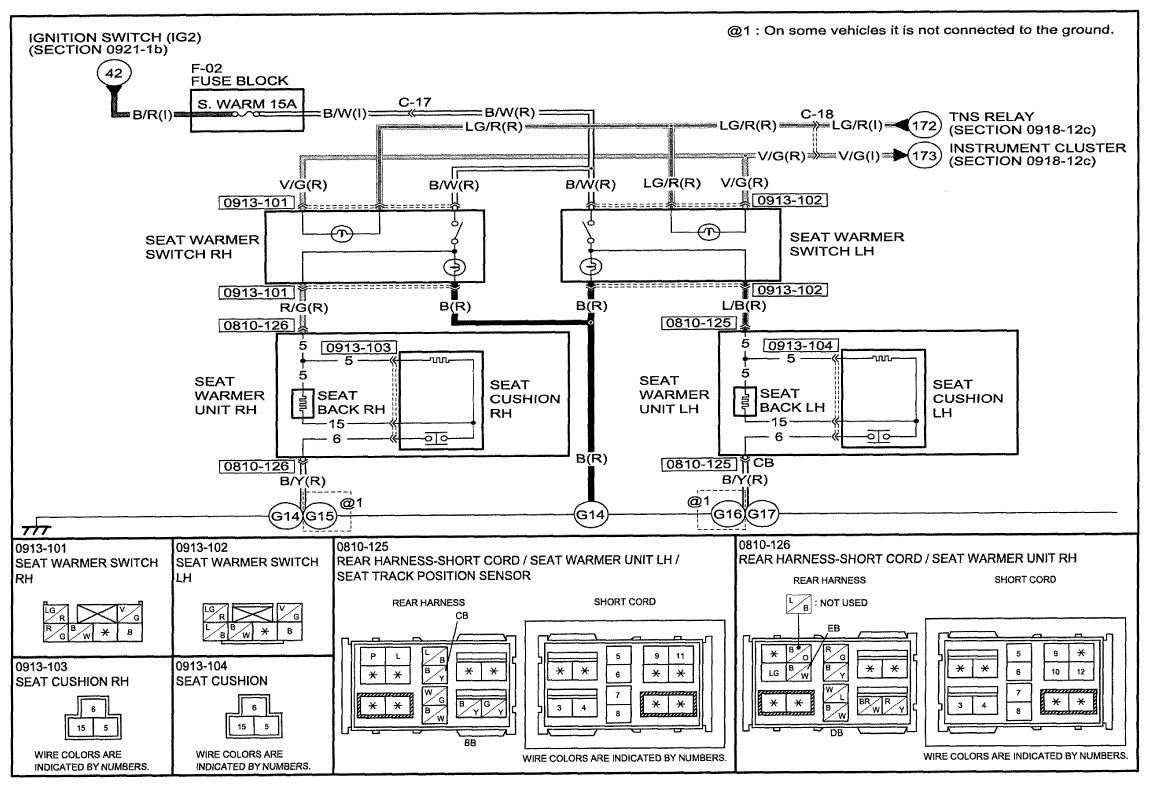

Fig 1: Seat Warmer Wiring Diagram - 0913-1 (1 Of 2)

G09125071

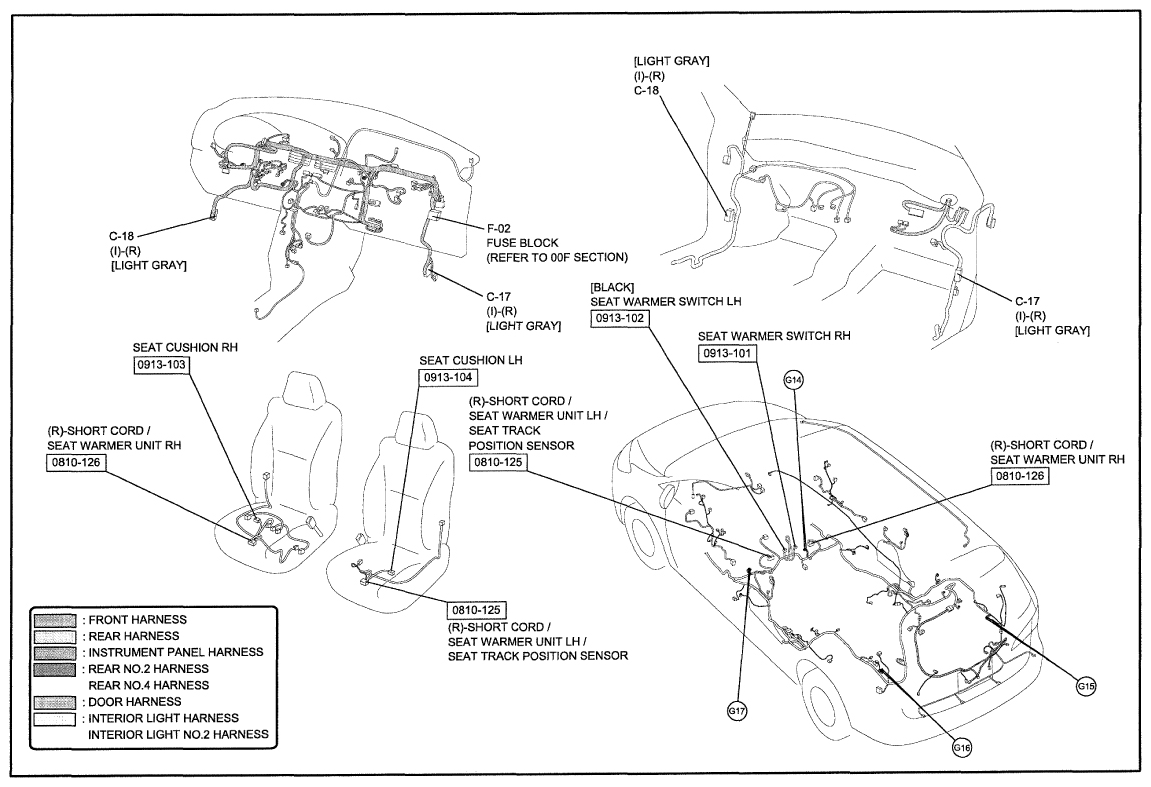

Fig 2: Seat Warmer Wiring Diagram - 0913-1 (2 Of 2)

G09125072
