Mazda
>>
2013
>>
5 Grand Touring
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring System
>>
Heater, Ventilation & Air Conditioning (HVAC)
>>
Control System
>>
Heater And Air Conditioner System
Heater And Air Conditioner System

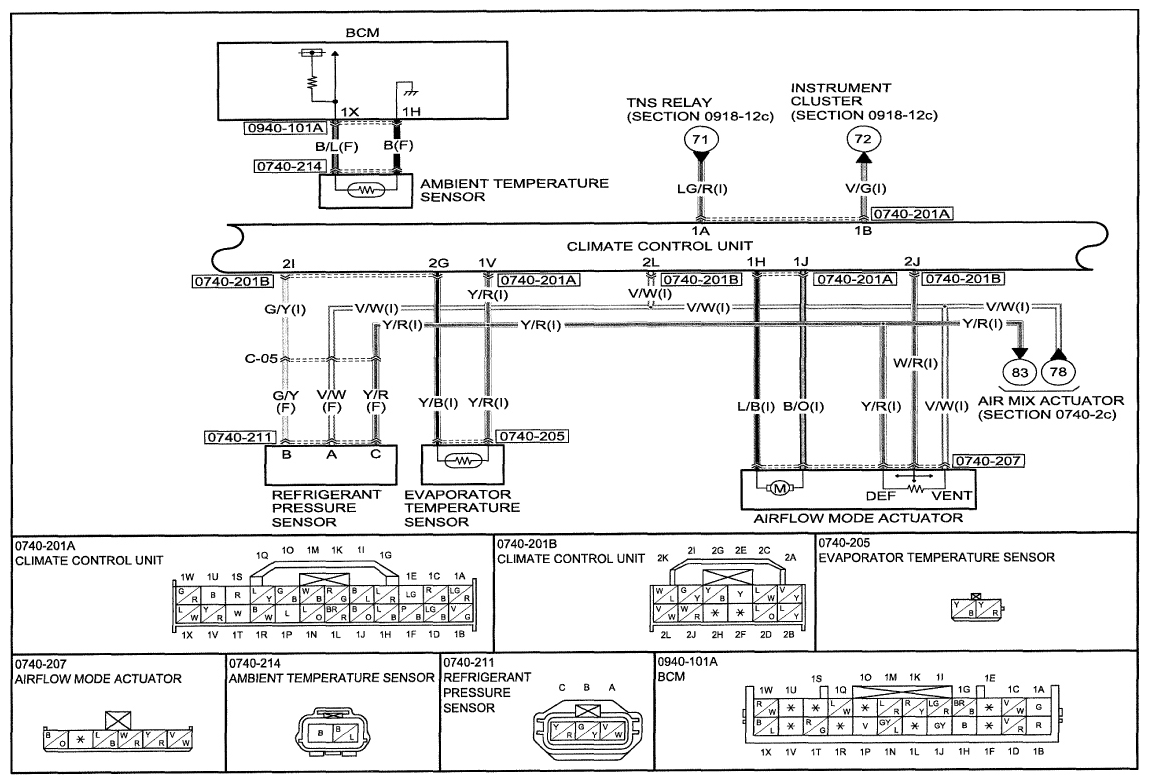

Fig 1: Heater And Air Conditioner System Wiring Diagram - 0740-2a (1 Of 2)

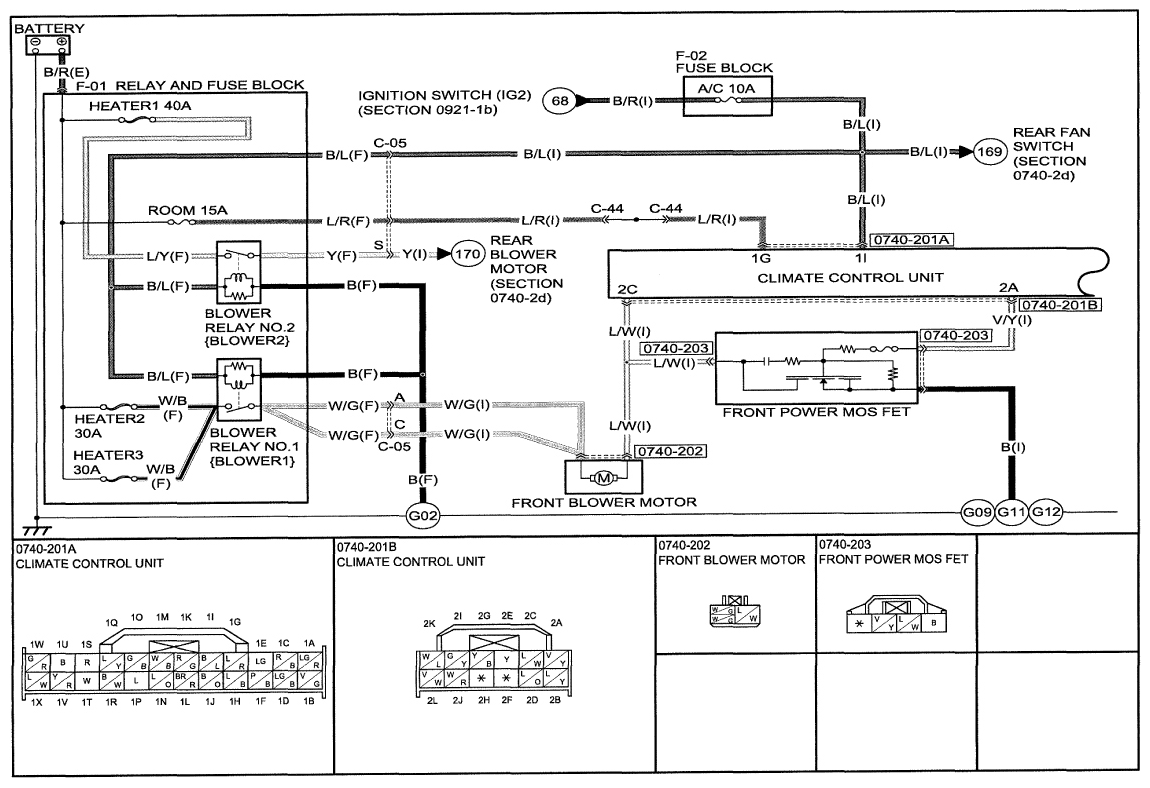

Fig 2: Heater And Air Conditioner System Wiring Diagram - 0740-2a (2 Of 2)

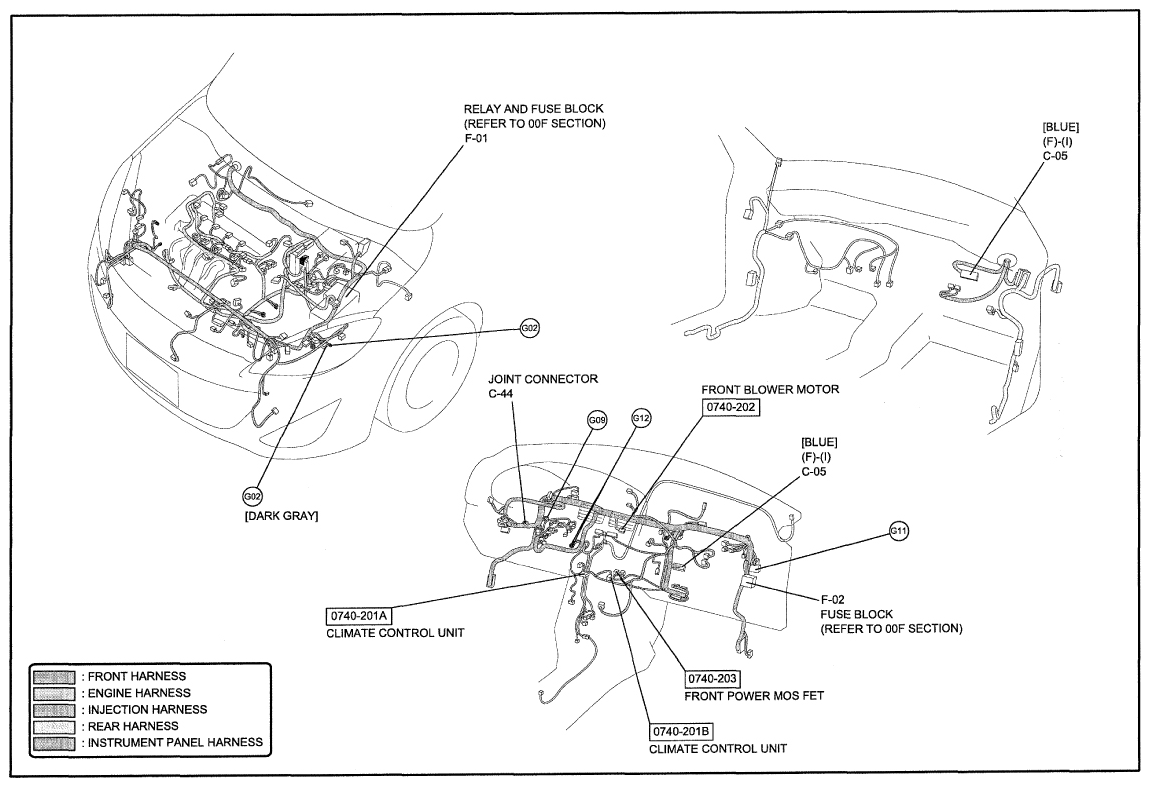

Fig 3: Heater And Air Conditioner System Wiring Diagram - 0740-2b (1 Of 2)

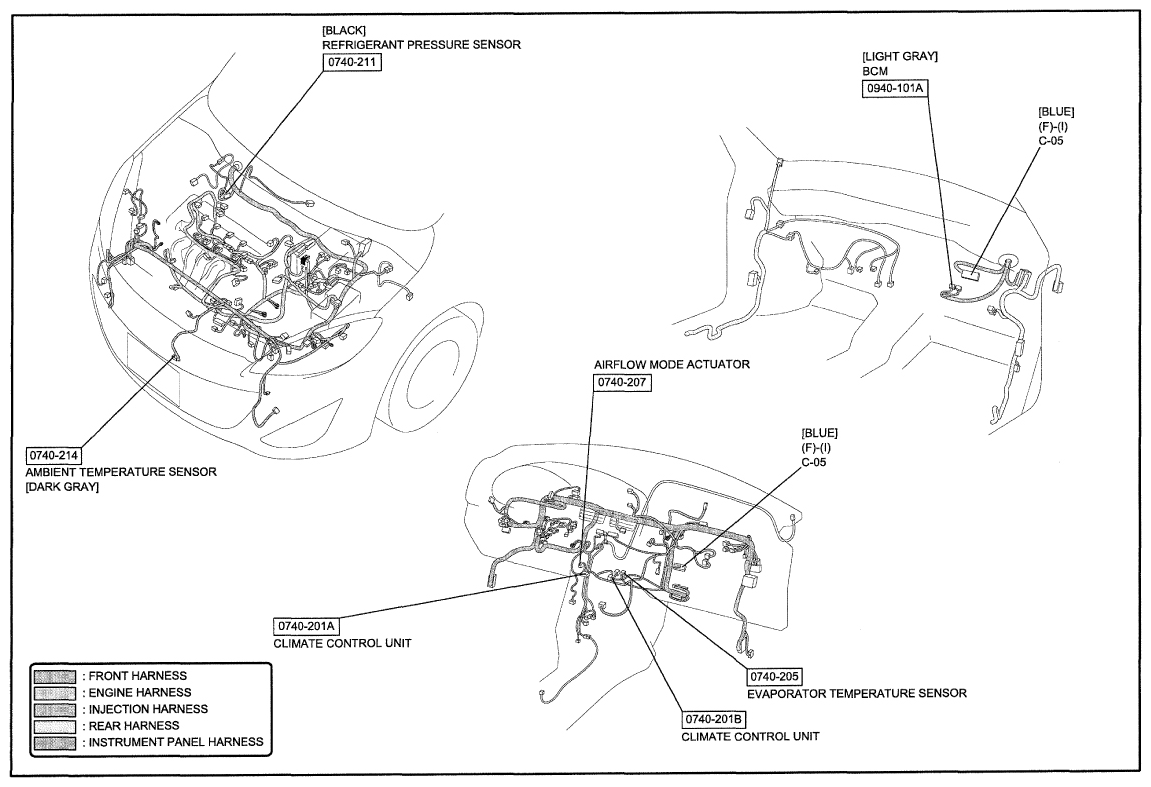

Fig 4: Heater And Air Conditioner System Wiring Diagram - 0740-2b (2 Of 2)

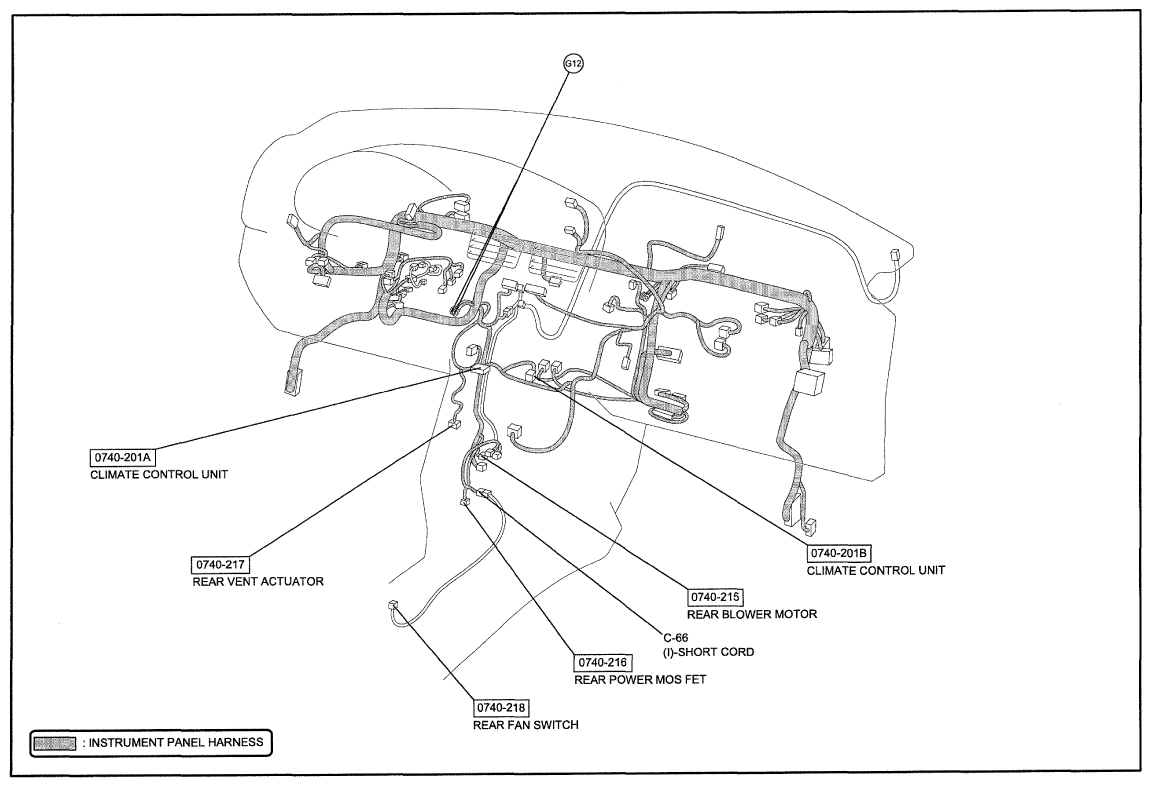

Fig 5: Heater And Air Conditioner System Wiring Diagram - 0740-2c (1 Of 2)

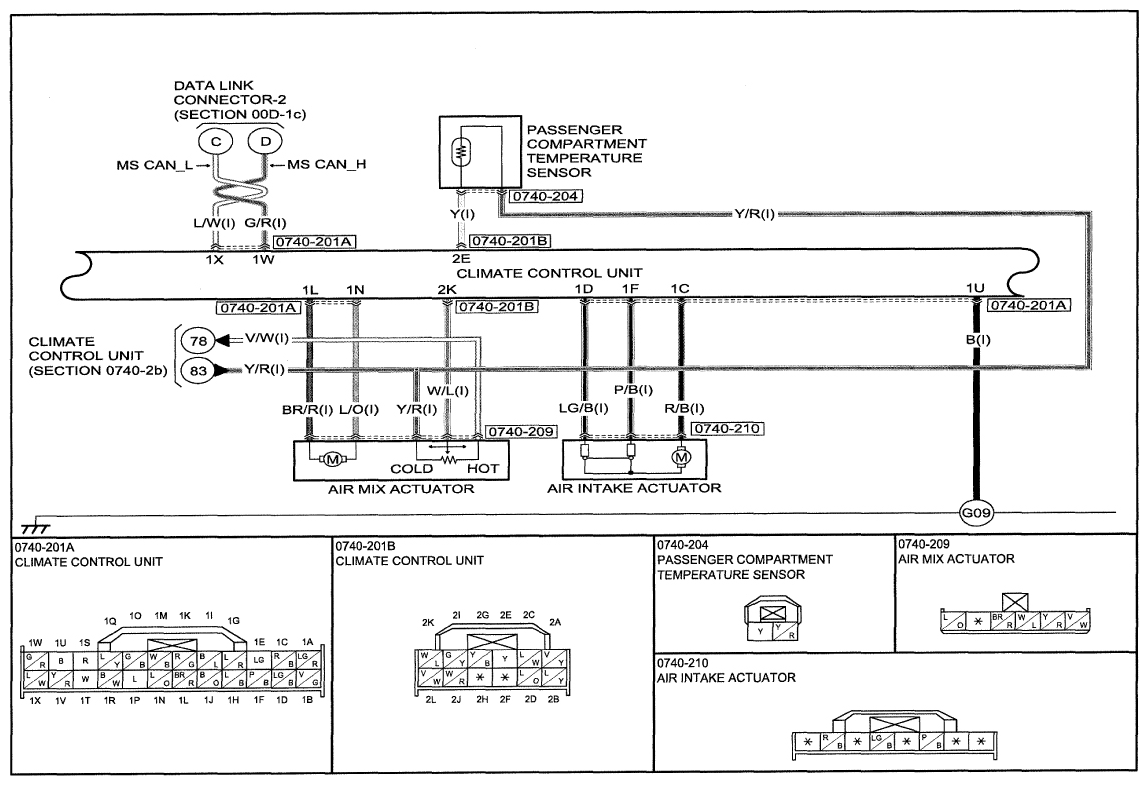

Fig 6: Heater And Air Conditioner System Wiring Diagram - 0740-2c (2 Of 2)

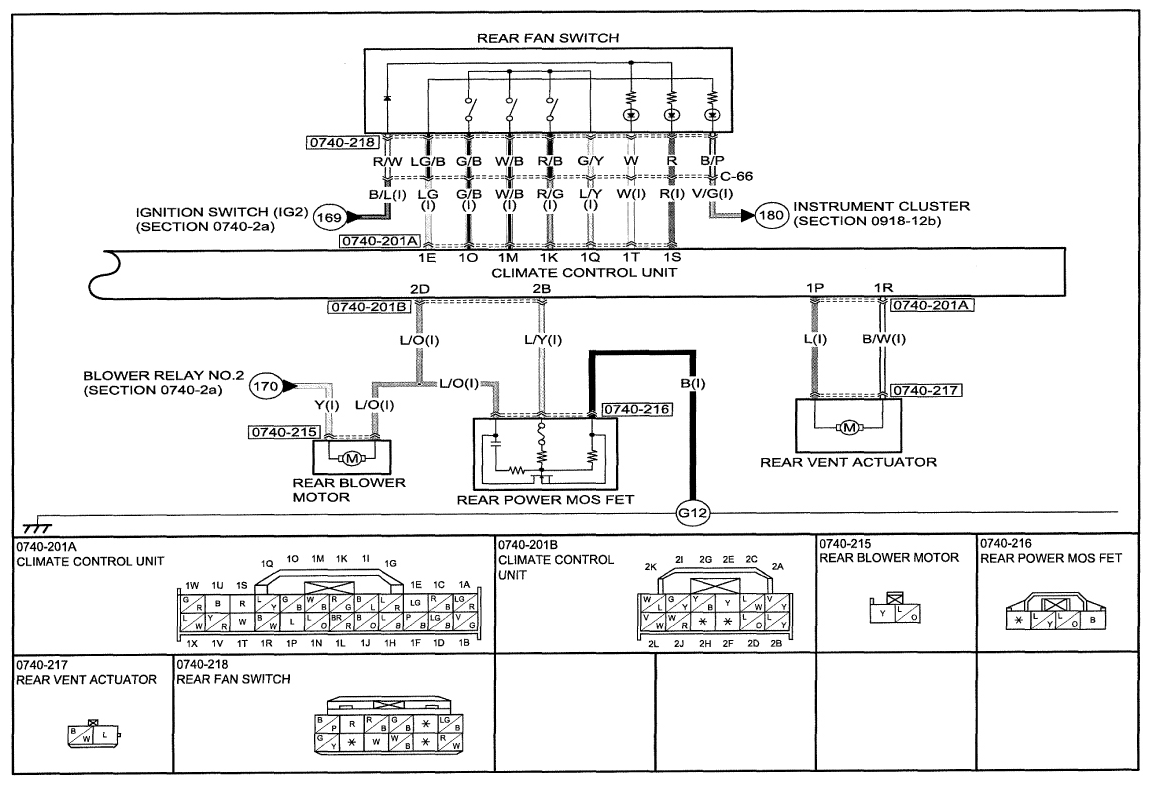

Fig 7: Heater And Air Conditioner System Wiring Diagram - 0740-2d (1 Of 2)

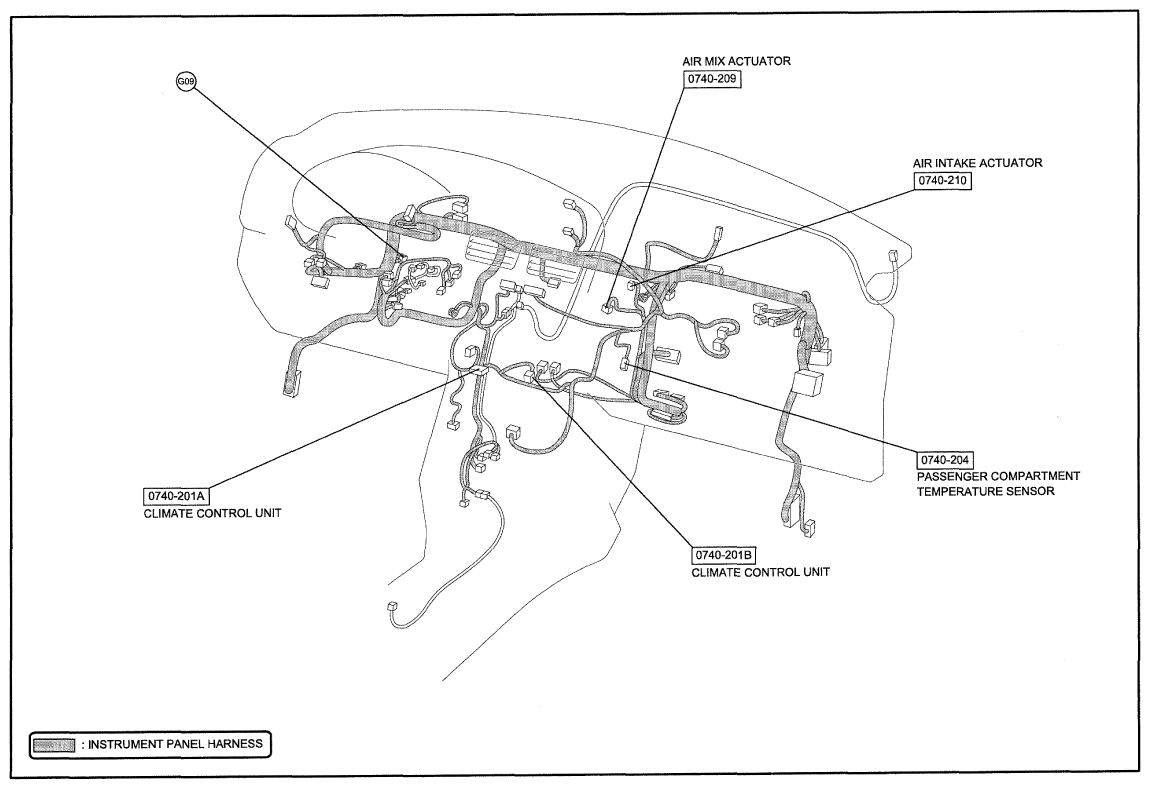

Fig 8: Heater And Air Conditioner System Wiring Diagram - 0740-2d (2 Of 2)
