Mazda
>>
2013
>>
5 Grand Touring
>>
Repair and Diagnosis (Single Page)
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring System
>>
Body & Accessories
>>
Lighting Systems
>>
Illumination Light
Illumination Light

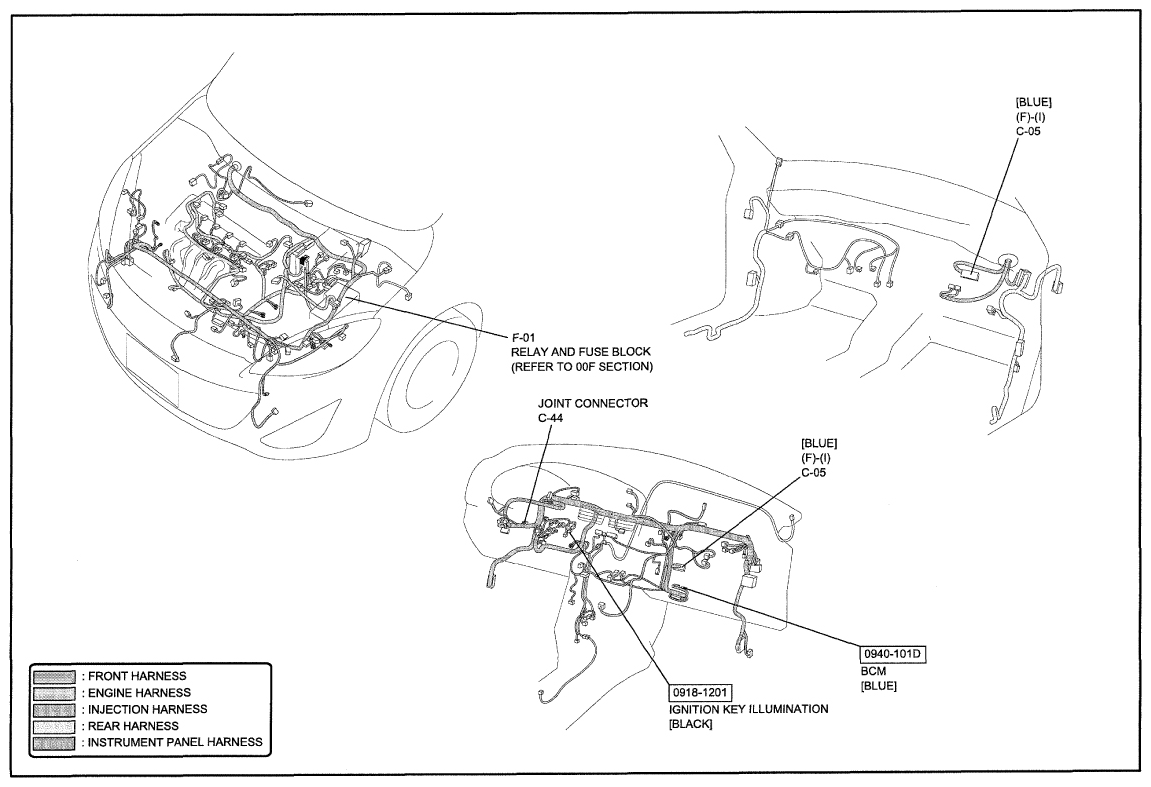

Fig 1: Illumination Light System Wiring Diagram - 0918-12a (1 Of 2)

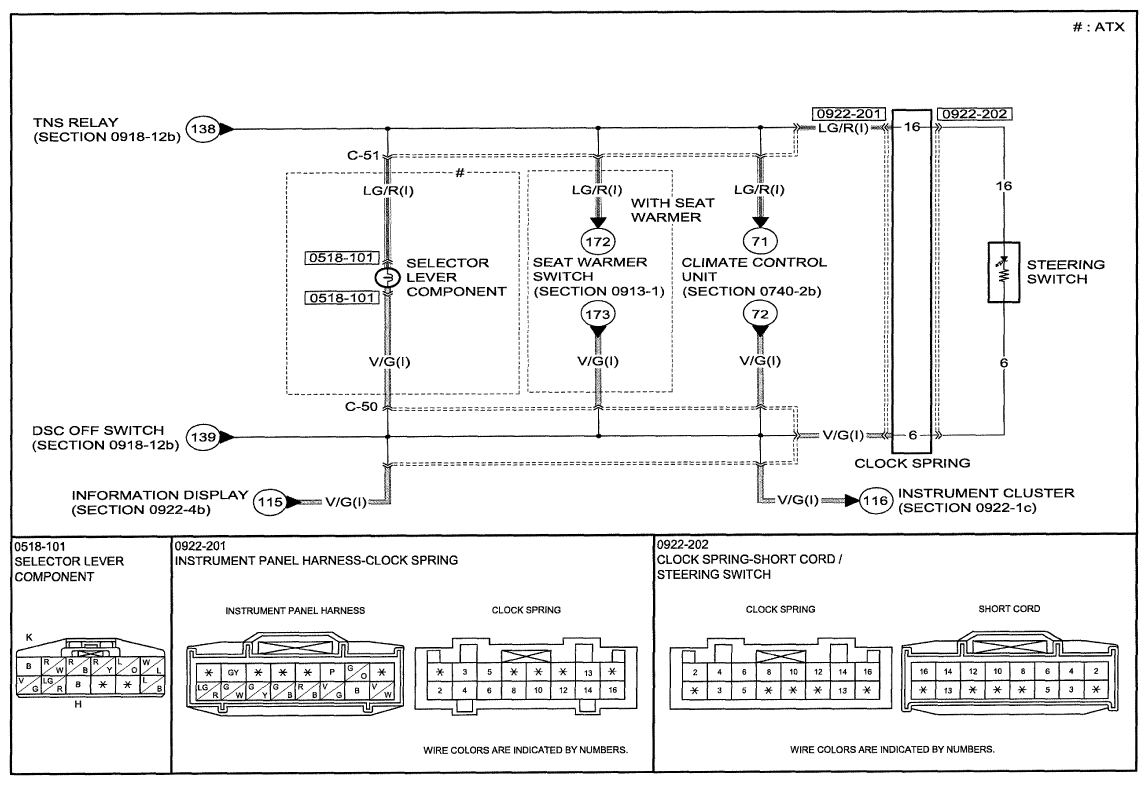

Fig 2: Illumination Light System Wiring Diagram - 0918-12a (2 Of 2)

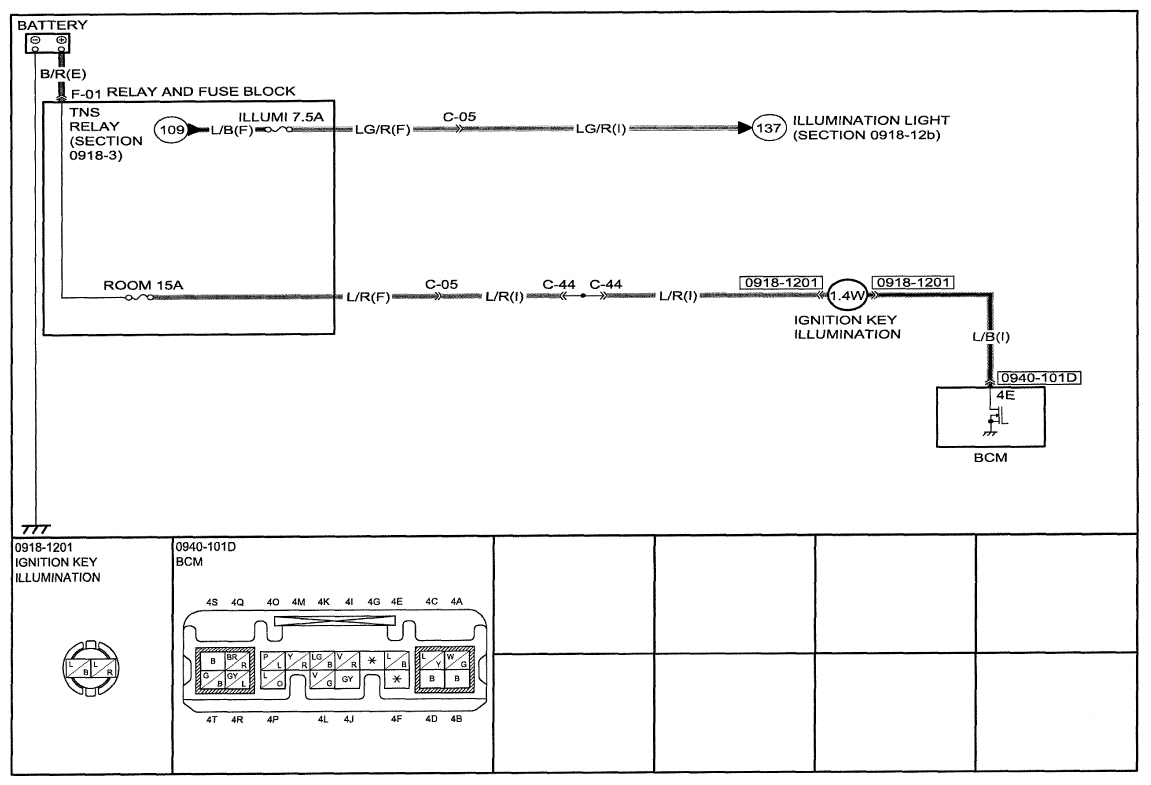

Fig 3: Illumination Light System Wiring Diagram - 0918-12b (1 Of 2)

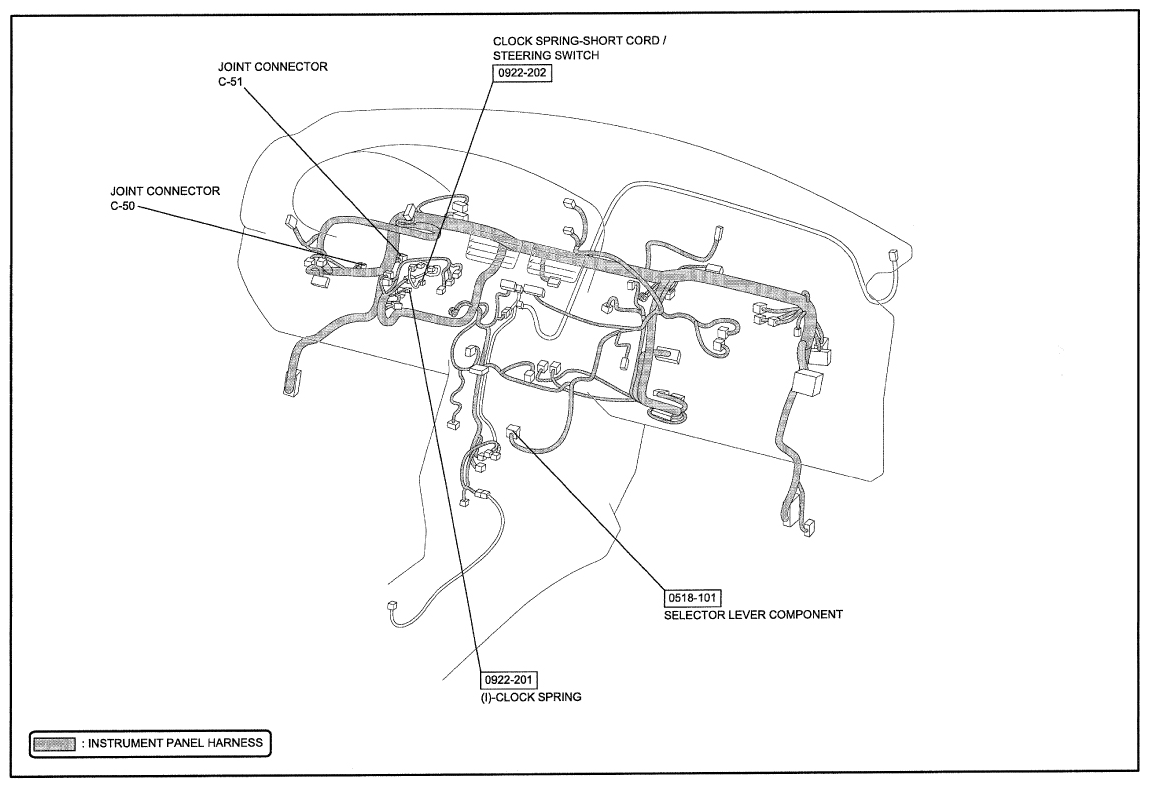

Fig 4: Illumination Light System Wiring Diagram - 0918-12b (2 Of 2)

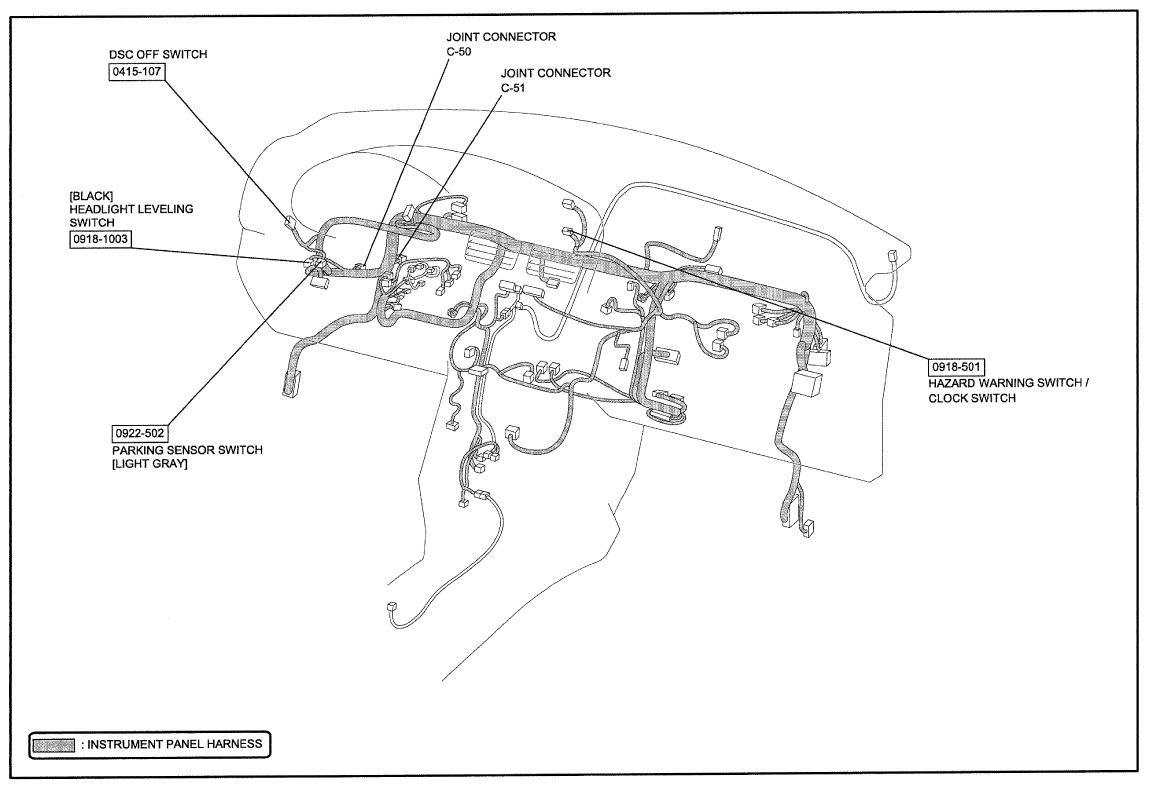

Fig 5: Illumination Light System Wiring Diagram - 0918-12c (1 Of 2)

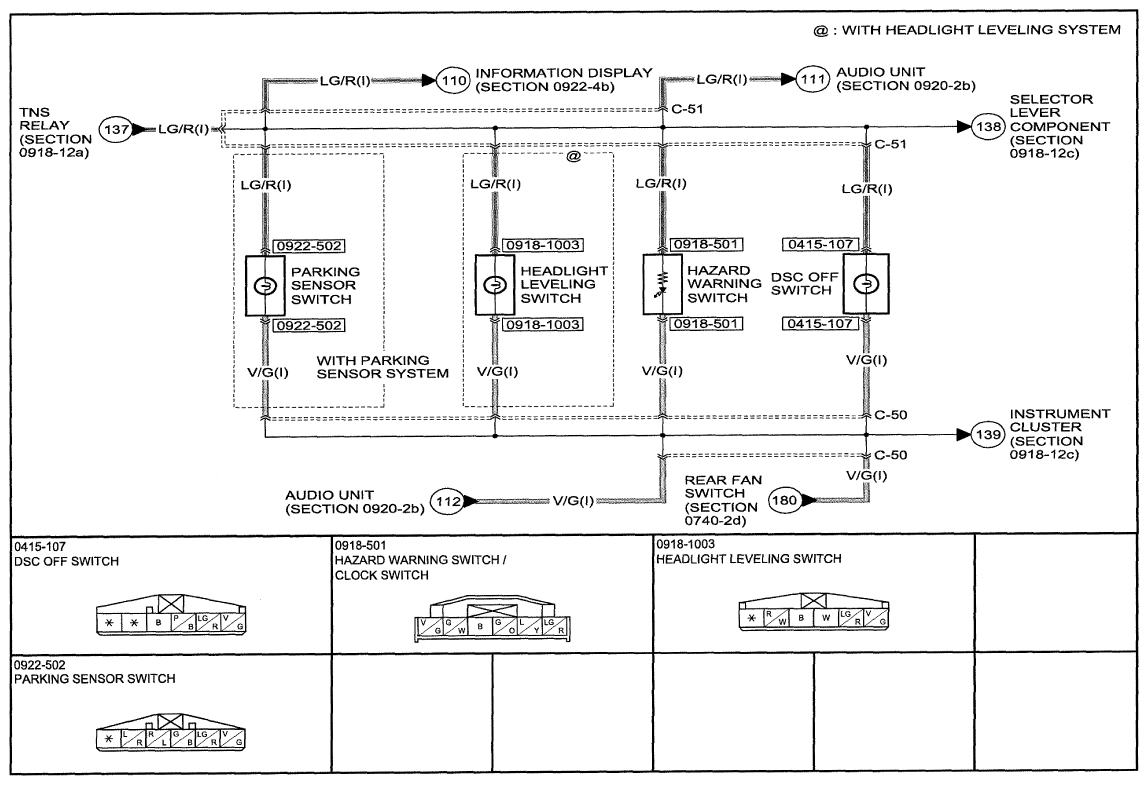

Fig 6: Illumination Light System Wiring Diagram - 0918-12c (2 Of 2)
