Instrument Cluster

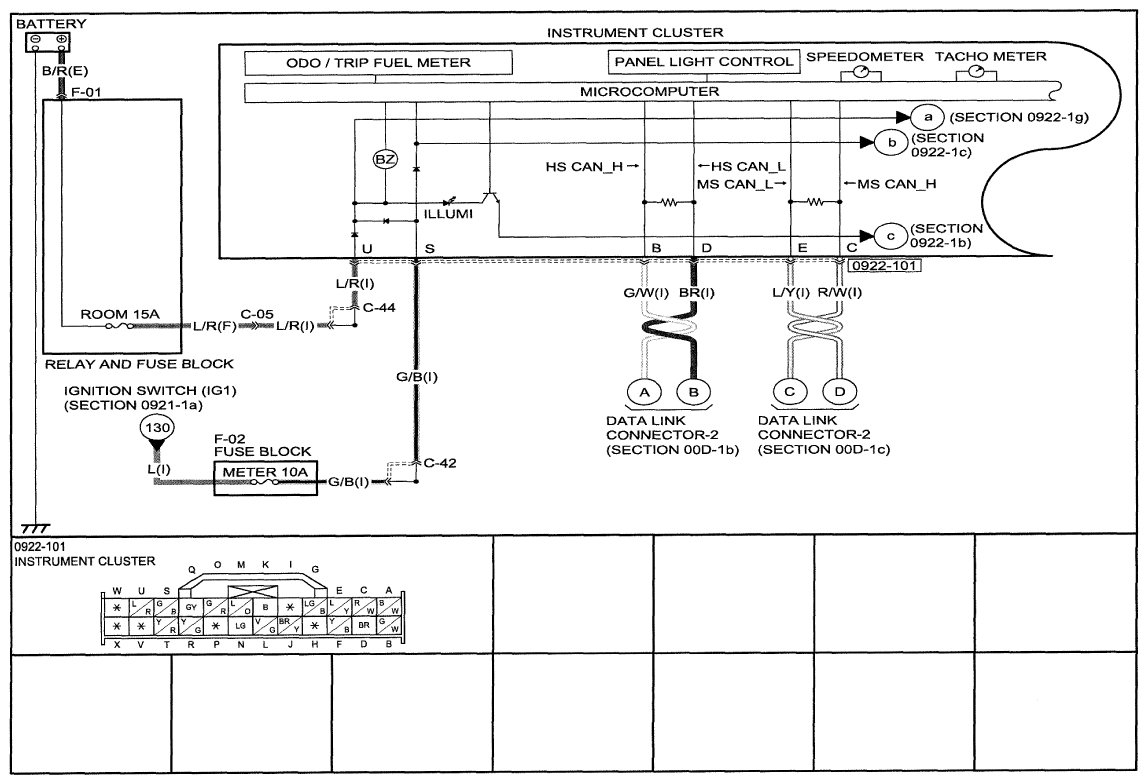

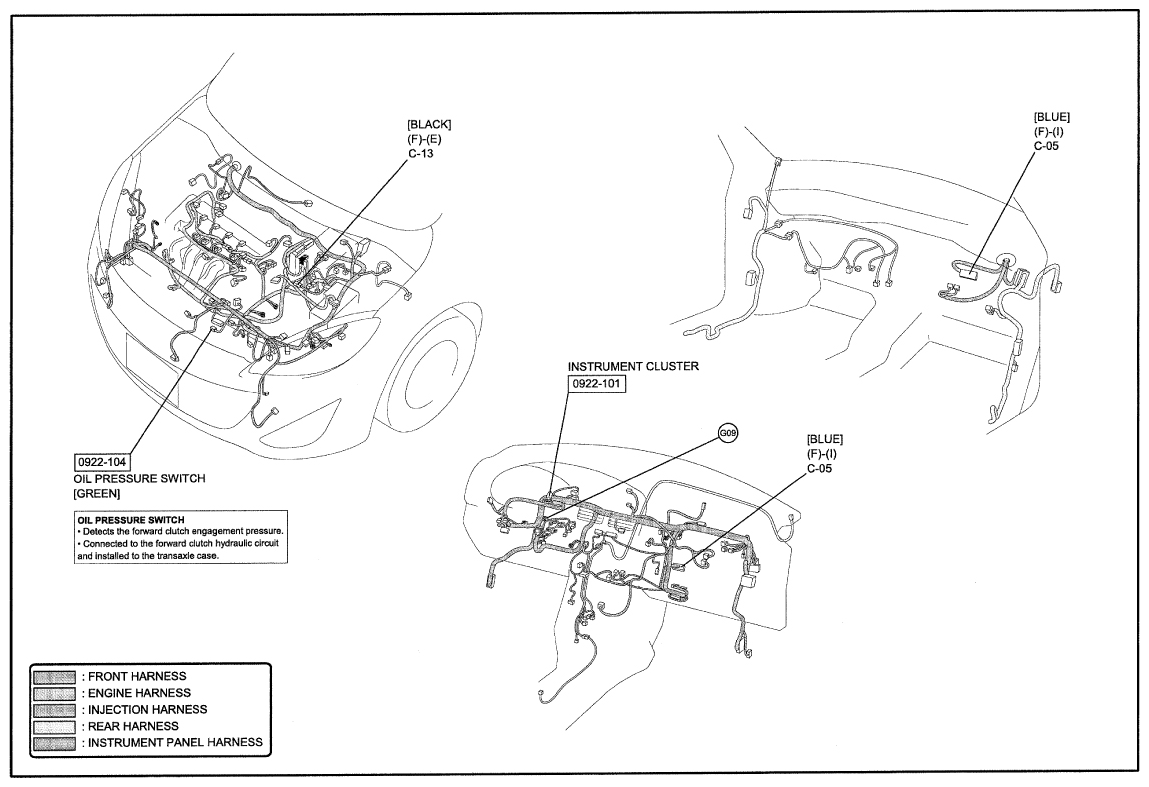

Fig 1: Instrument Cluster System Wiring Diagram - 0922-1a (1 Of 2)

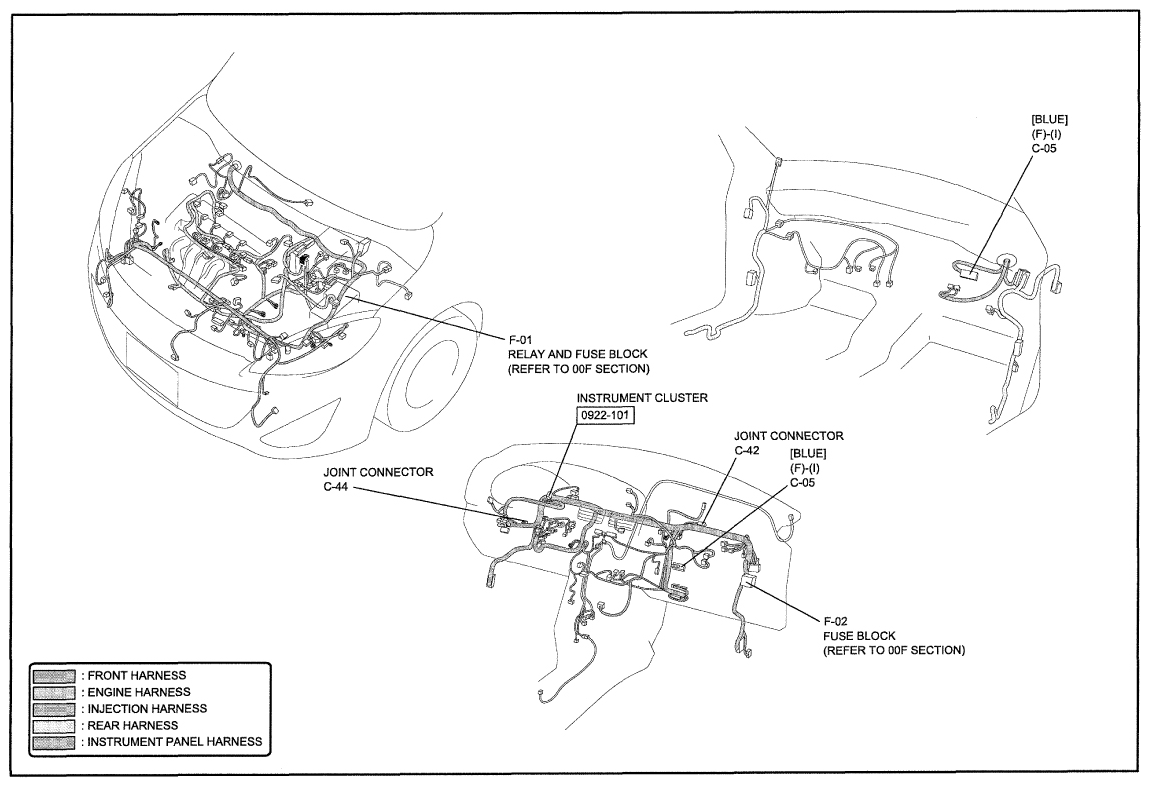

Fig 2: Instrument Cluster System Wiring Diagram - 0922-1a (2 Of 2)

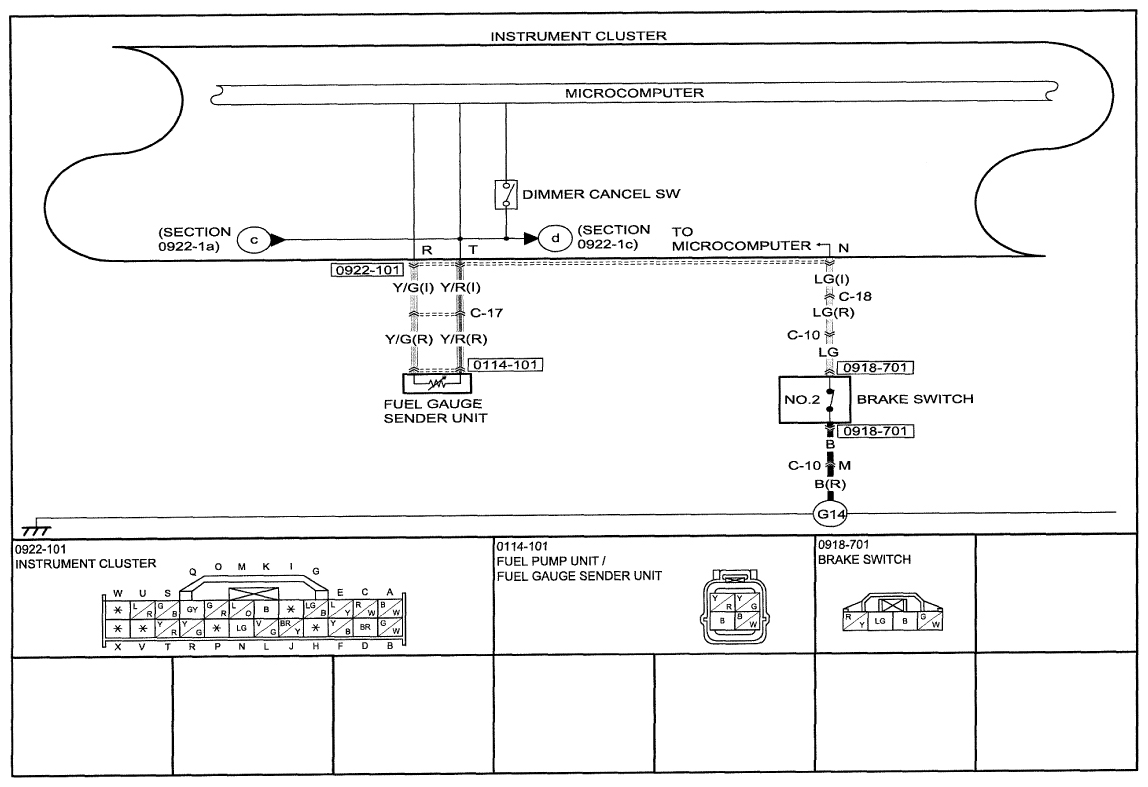

Fig 3: Instrument Cluster System Wiring Diagram - 0922-1b (1 Of 2)

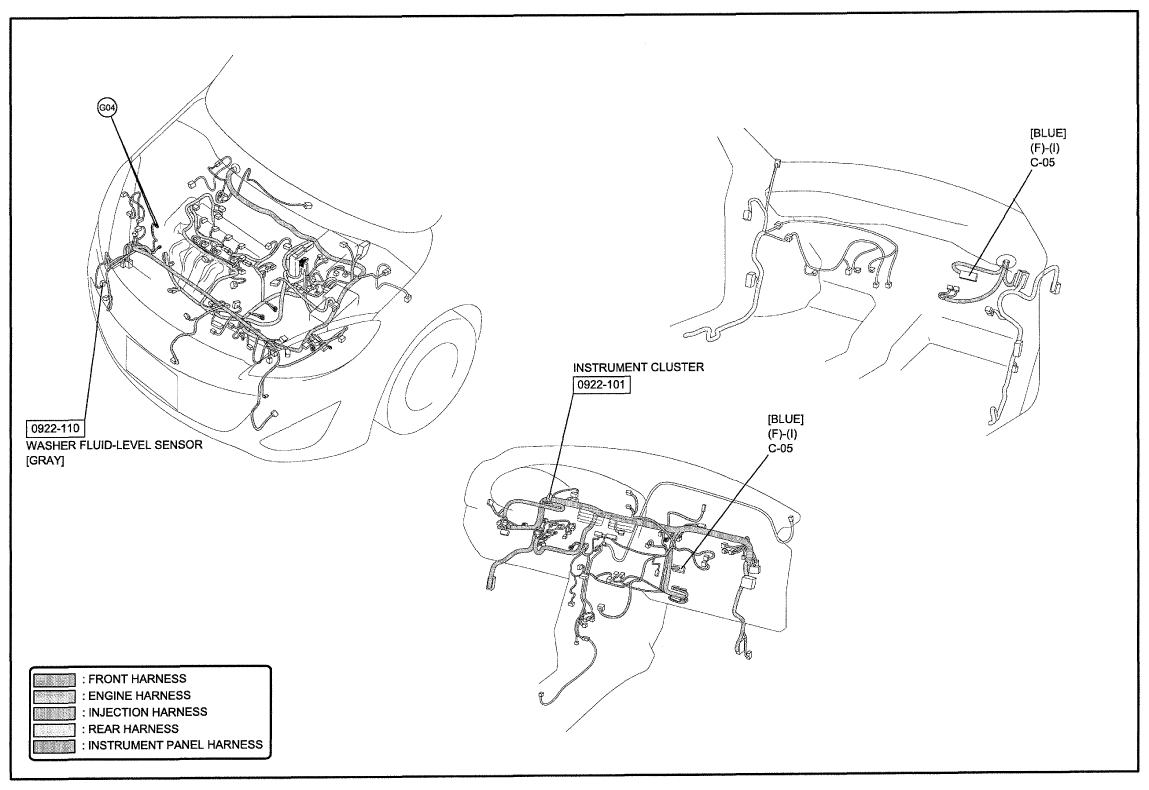

Fig 4: Instrument Cluster System Wiring Diagram - 0922-1b (2 Of 2)

Fig 5: Instrument Cluster System Wiring Diagram - 0922-1c (1 Of 2)

Fig 6: Instrument Cluster System Wiring Diagram - 0922-1c (2 Of 2)

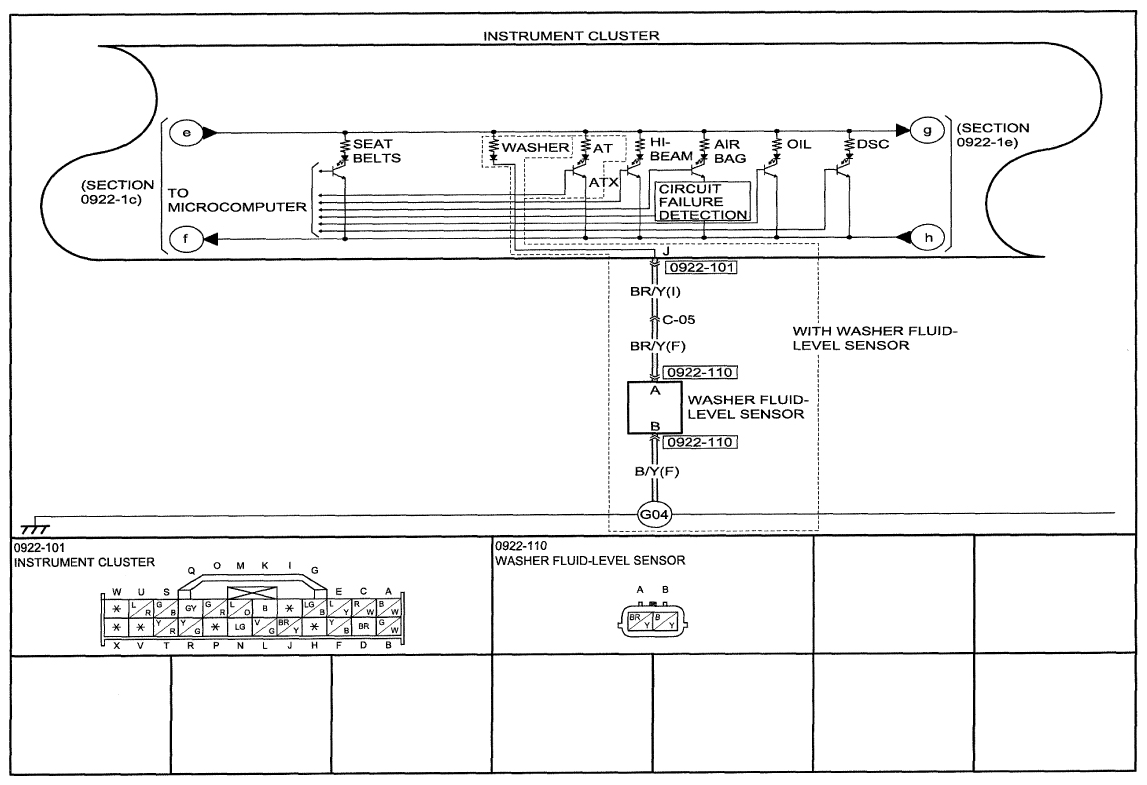

Fig 7: Instrument Cluster System Wiring Diagram - 0922-1d (1 Of 2)

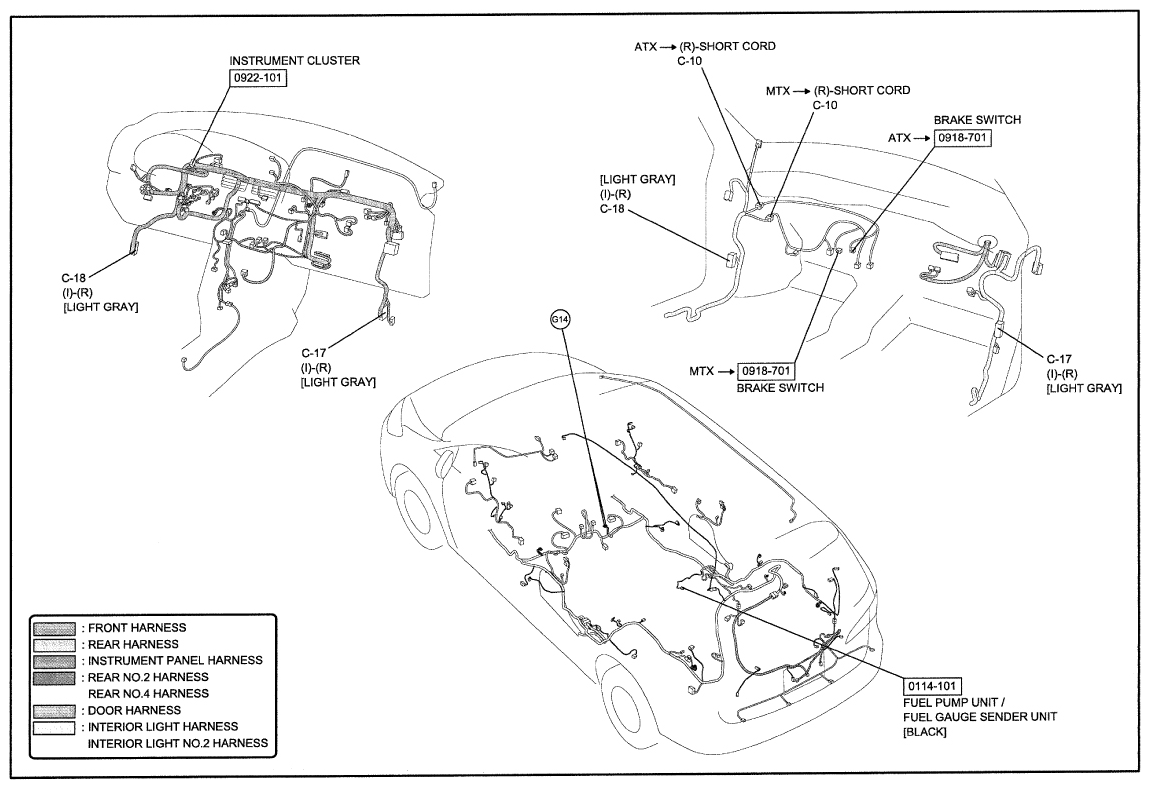

Fig 8: Instrument Cluster System Wiring Diagram - 0922-1d (2 Of 2)

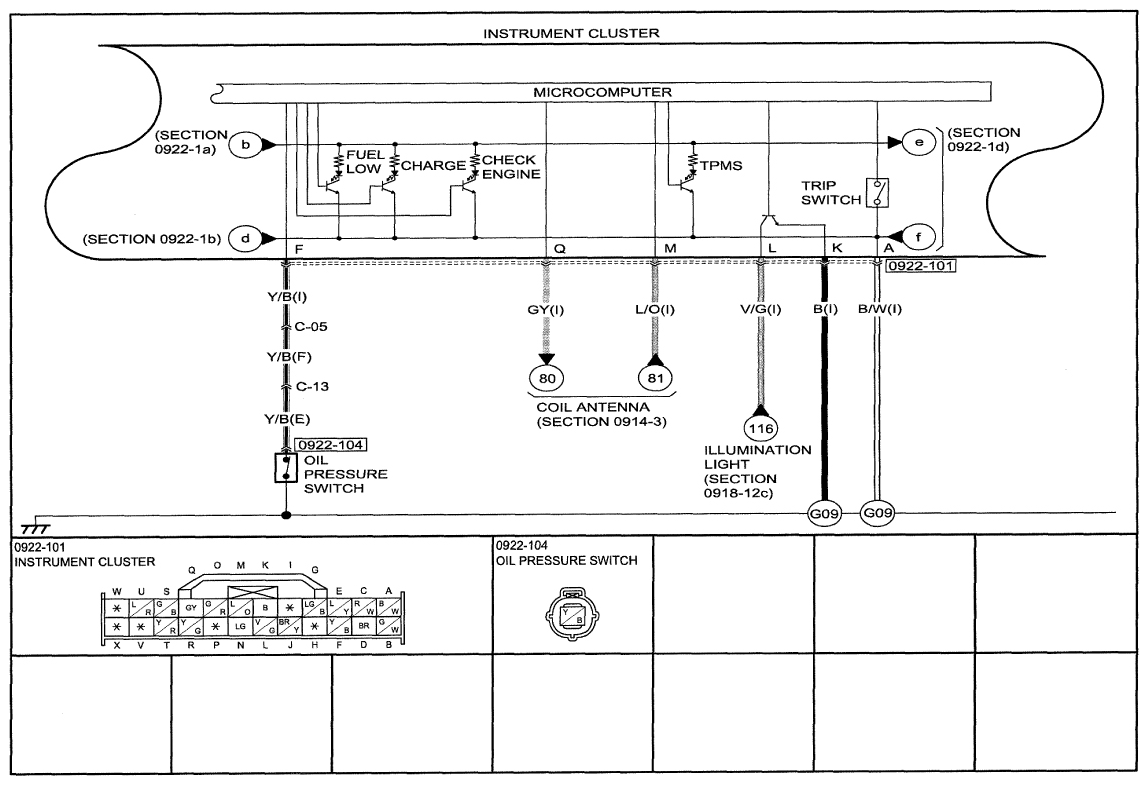

Fig 9: Instrument Cluster System Wiring Diagram - 0922-1e (1 Of 2)

Fig 10: Instrument Cluster System Wiring Diagram - 0922-1e (2 Of 2)

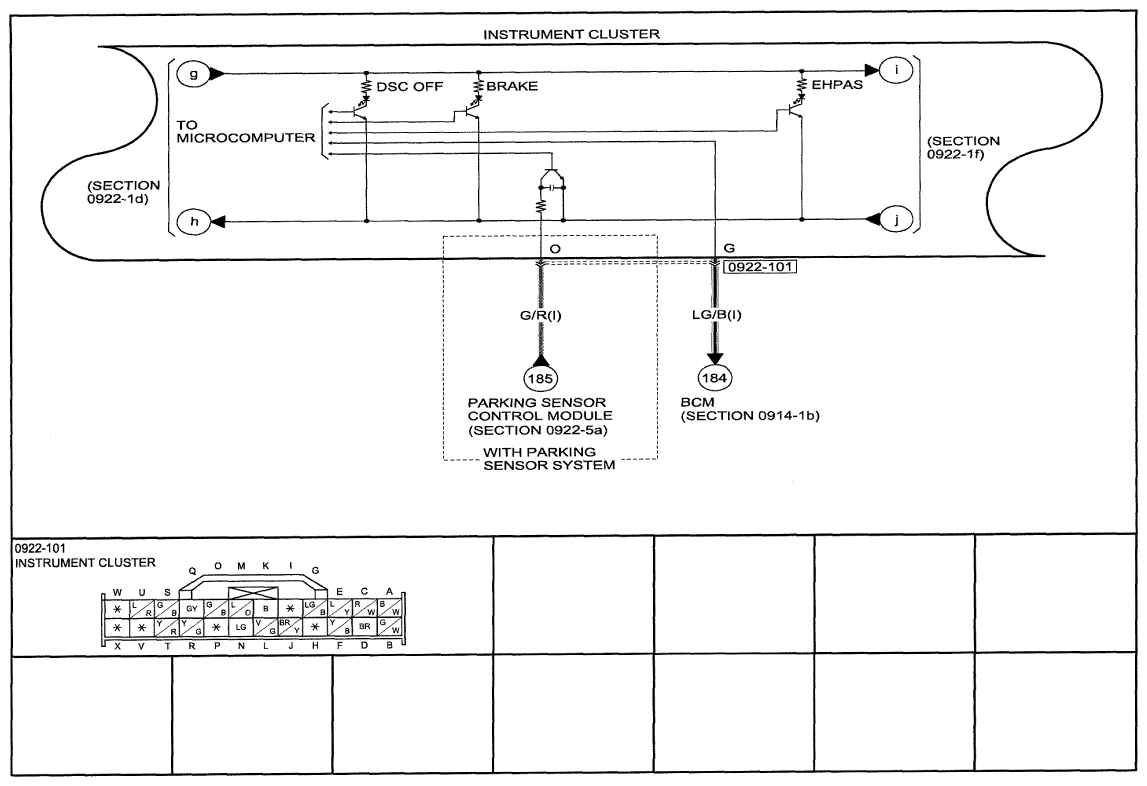

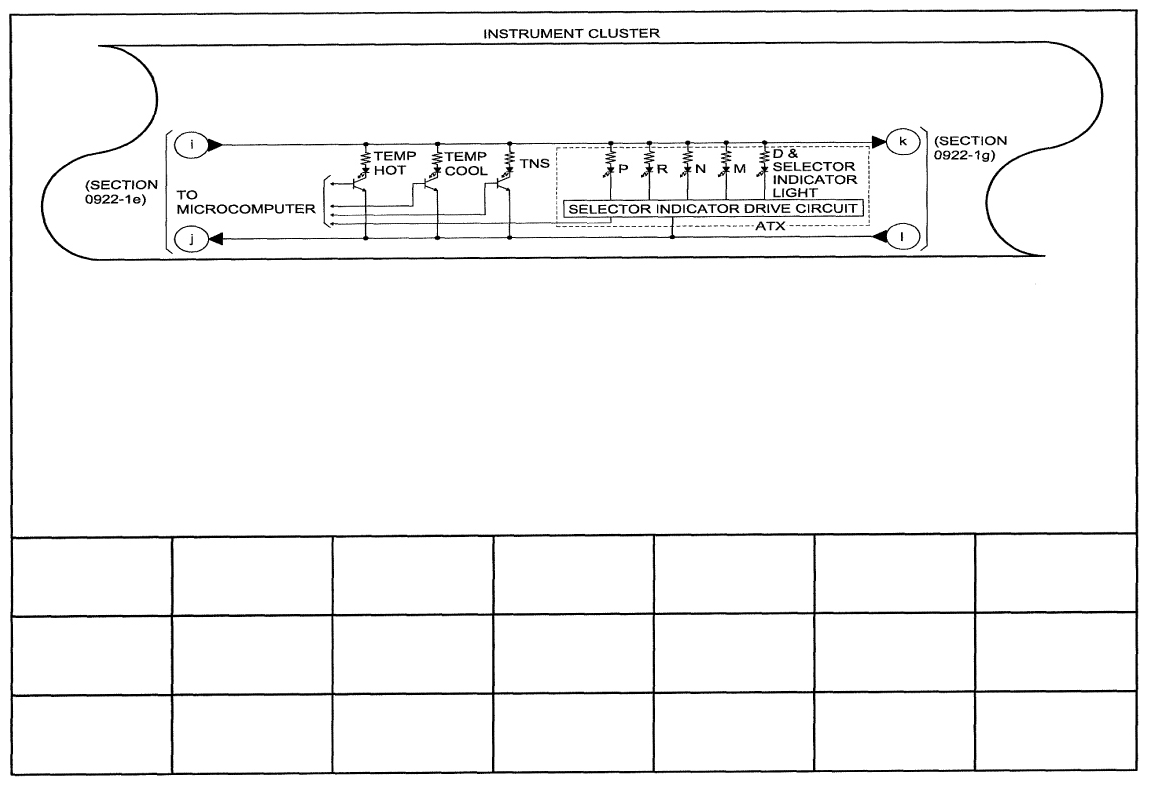

Fig 11: Instrument Cluster System Wiring Diagram - 0922-1f (1 Of 2)

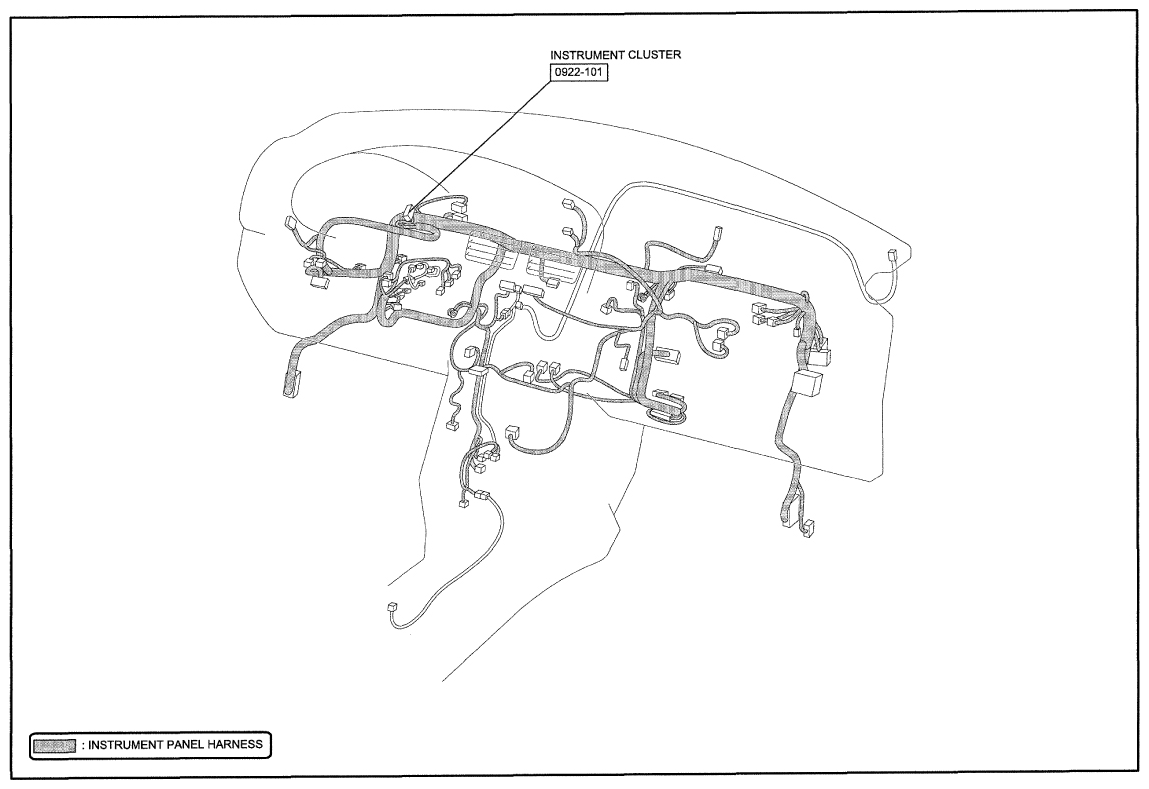

Fig 12: Instrument Cluster System Wiring Diagram - 0922-1f (2 Of 2)

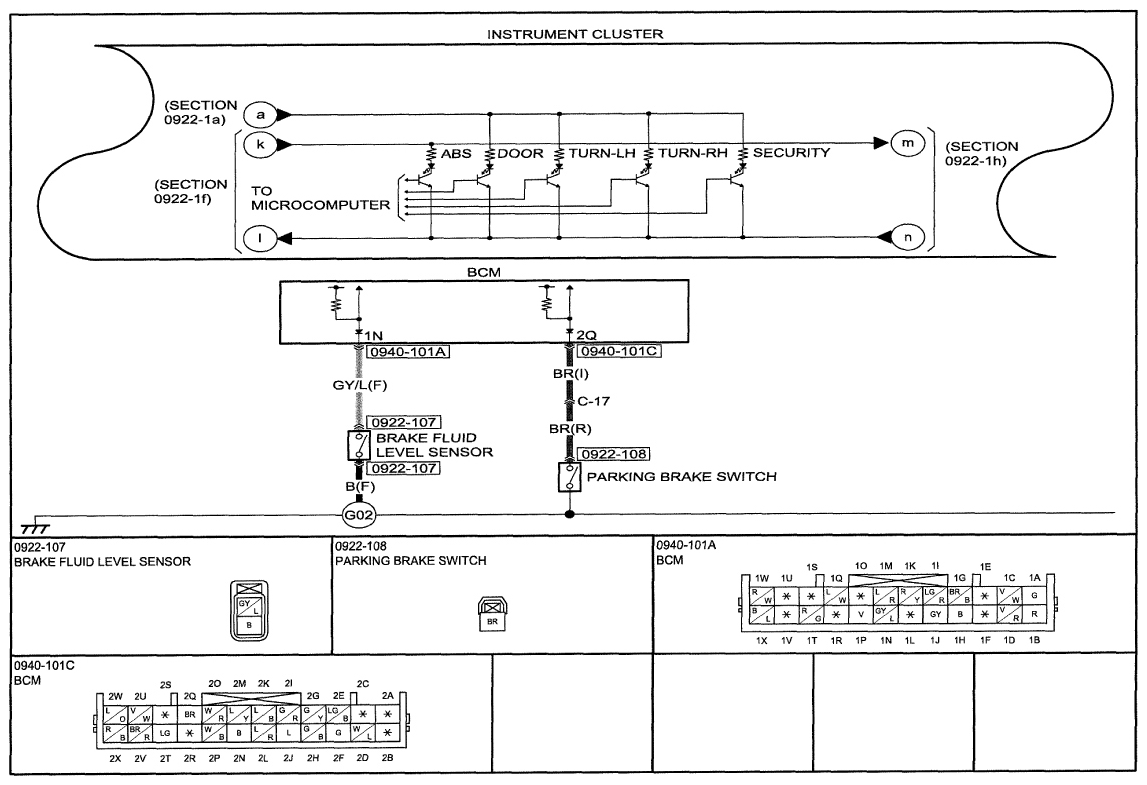

Fig 13: Instrument Cluster System Wiring Diagram - 0922-1g (1 Of 2)

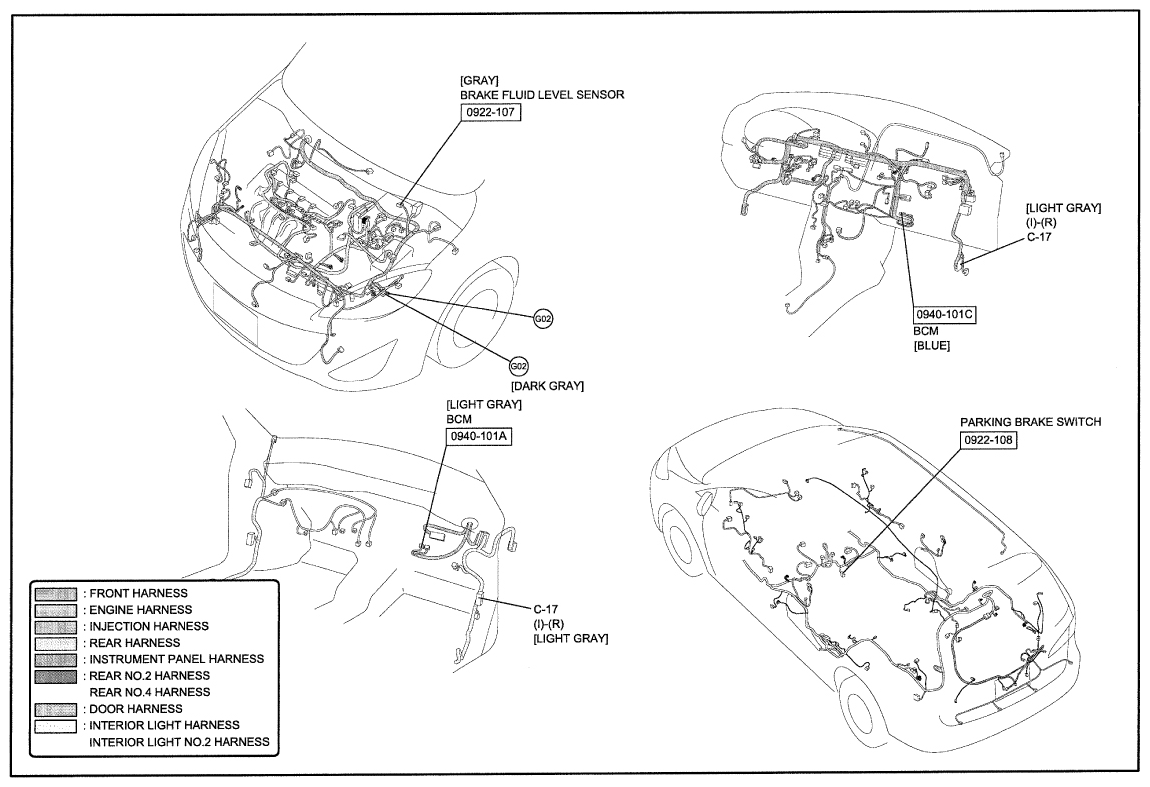

Fig 14: Instrument Cluster System Wiring Diagram - 0922-1g (2 Of 2)

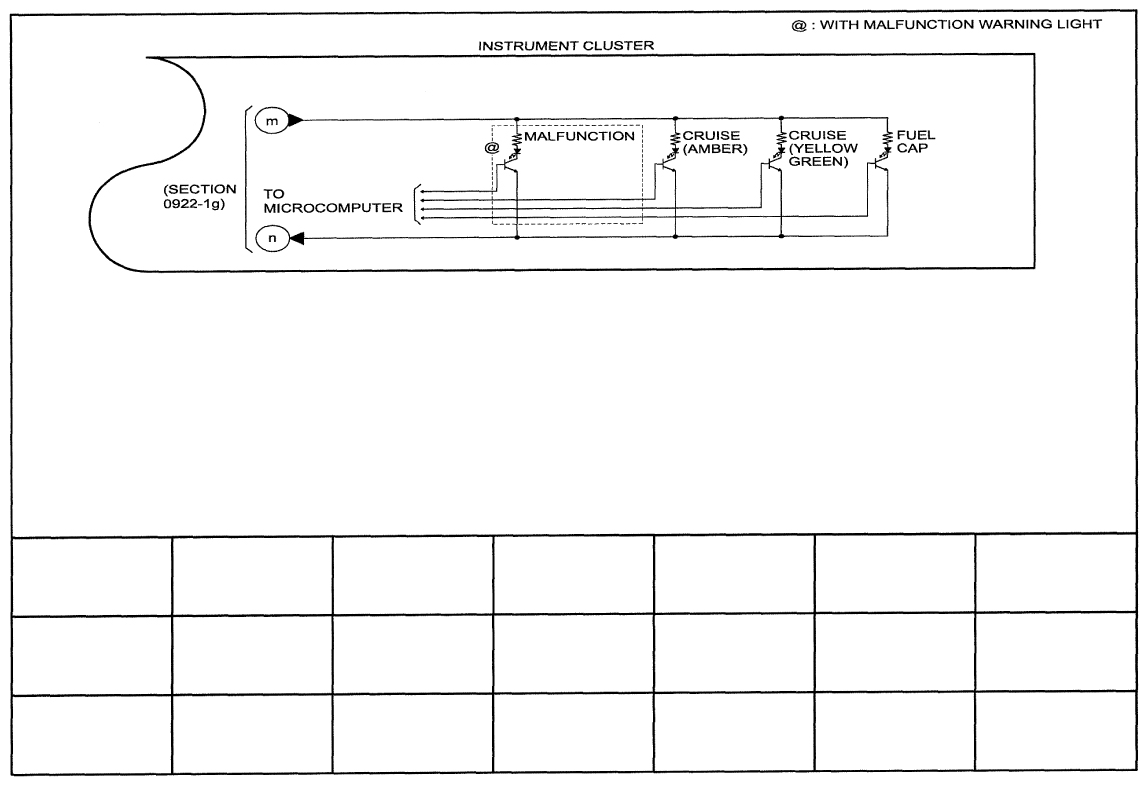

Fig 15: Instrument Cluster System Wiring Diagram - 0922-1h (1 Of 2)

Fig 16: Instrument Cluster System Wiring Diagram - 0922-1h (2 Of 2)
