Reading Wiring Diagrams: Symbols

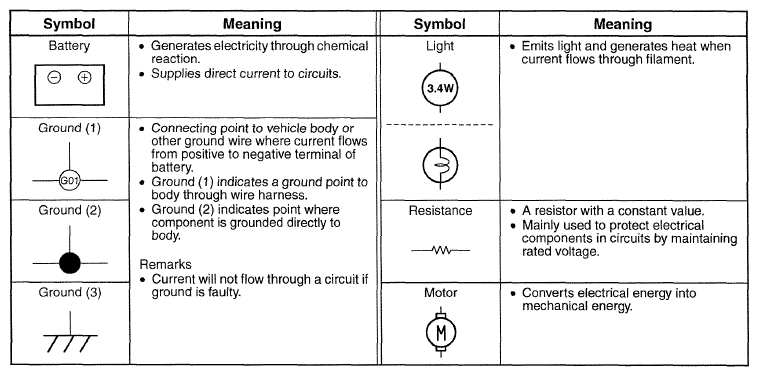

Fig 1: Symbols Chart (1 Of 4)

G09124905

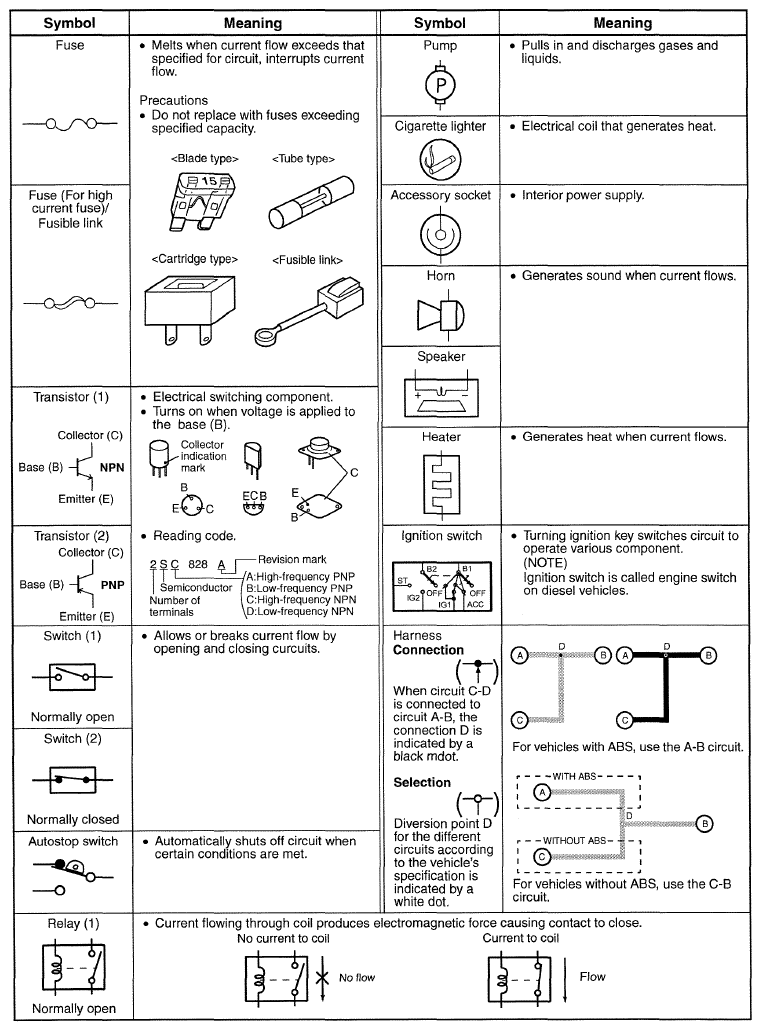

Fig 2: Symbols Chart (2 Of 4)

G09124906

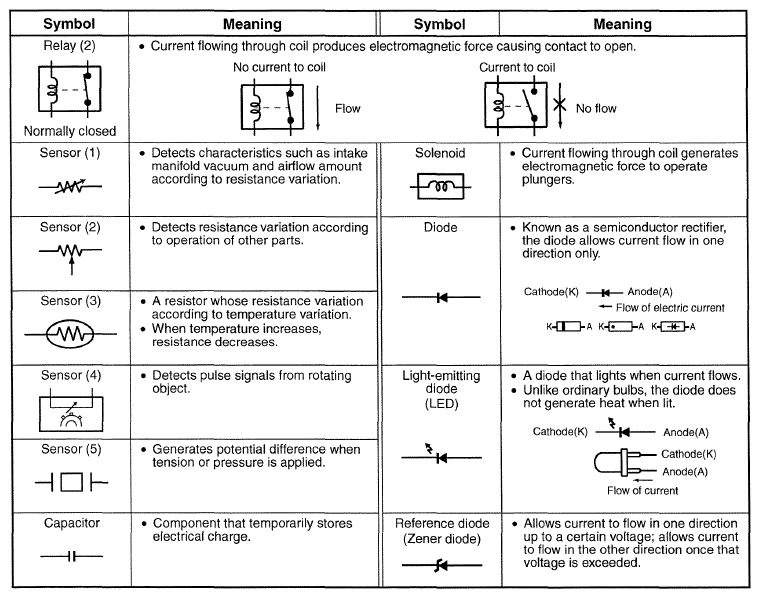

Fig 3: Symbols Chart (3 Of 4)

G09124907

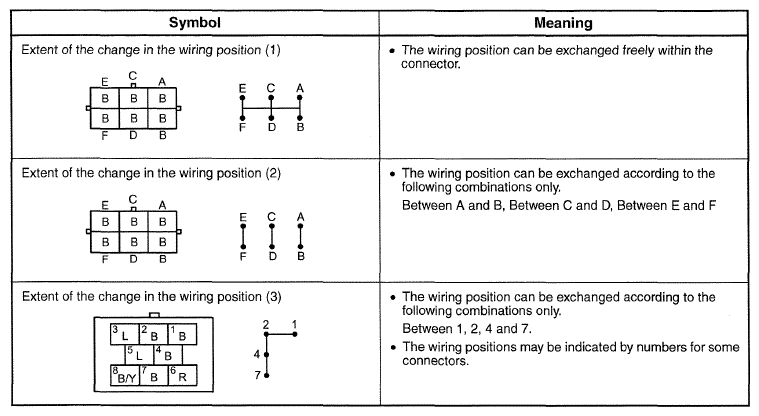

Fig 4: Symbols Chart (4 Of 4)

G09124908
