Door Lock System

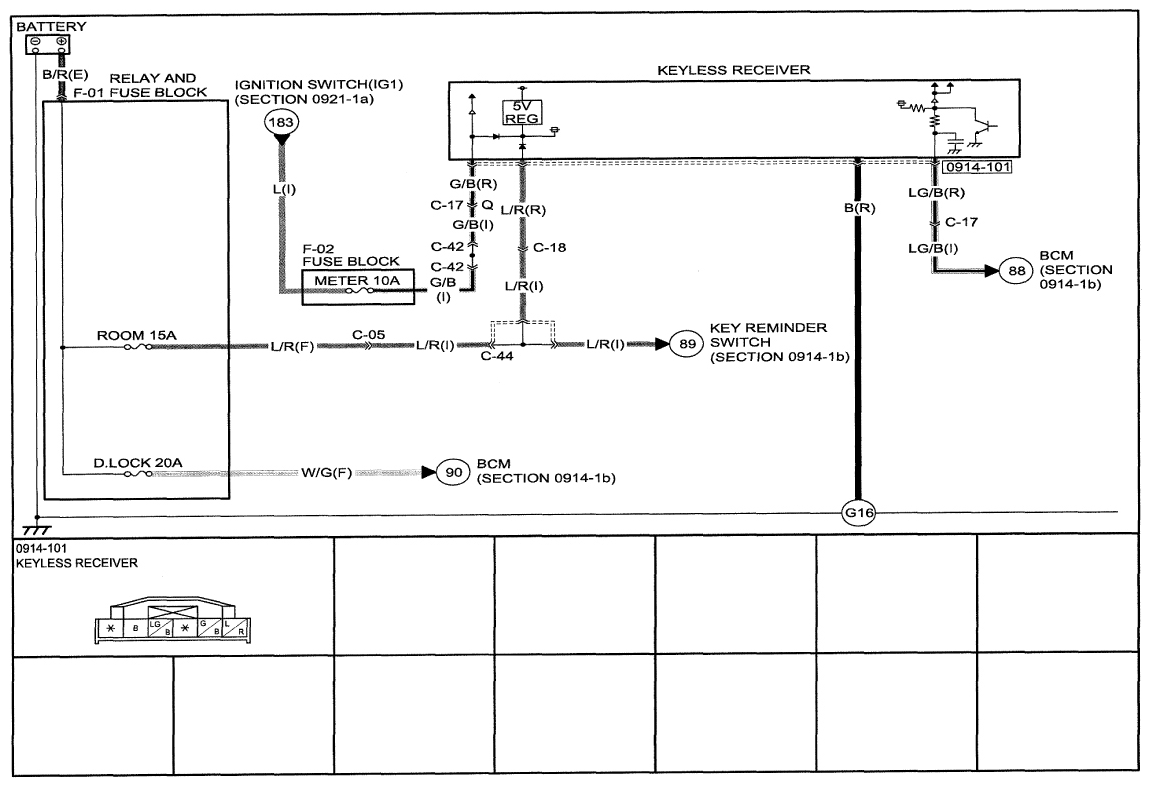

Fig 1: Door Lock System Wiring Diagram - 0914-1a (1 Of 2)

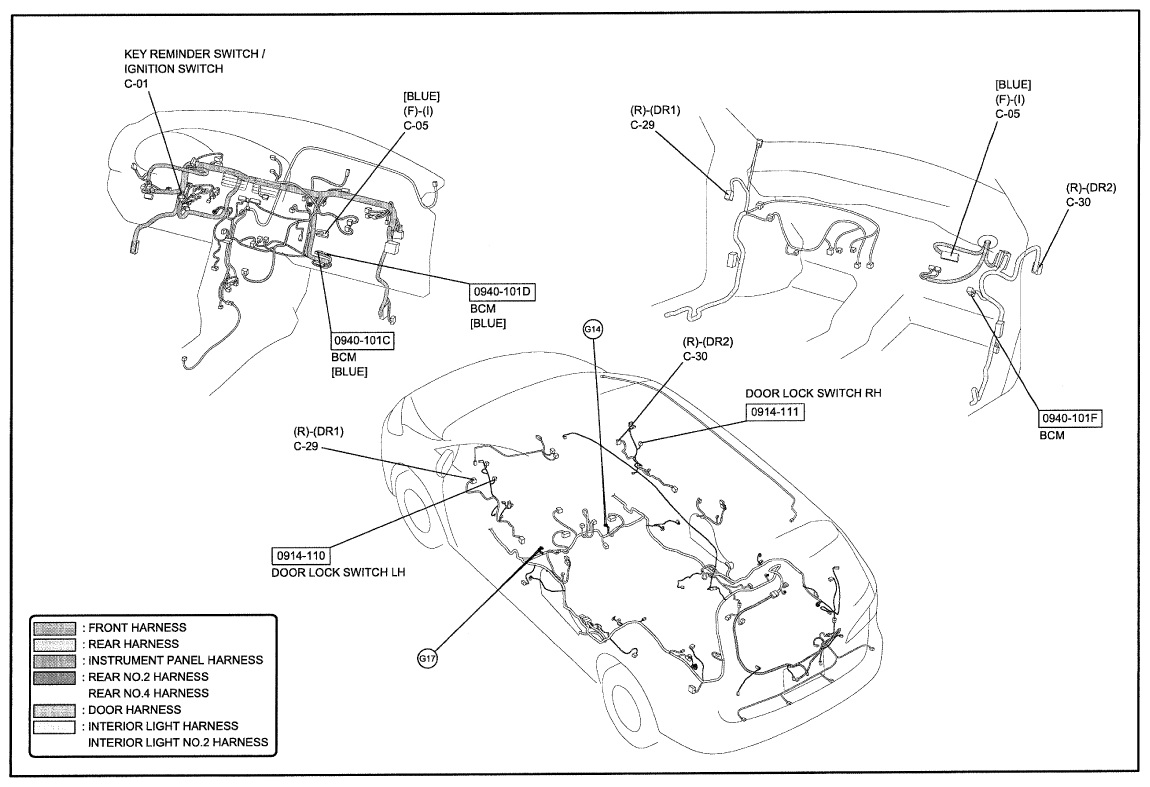

Fig 2: Door Lock System Wiring Diagram - 0914-1a (2 Of 2)

Fig 3: Door Lock System Wiring Diagram - 0914-1b (1 Of 2)

Fig 4: Door Lock System Wiring Diagram - 0914-1b (2 Of 2)

Fig 5: Door Lock System Wiring Diagram - 0914-1c (1 Of 2)

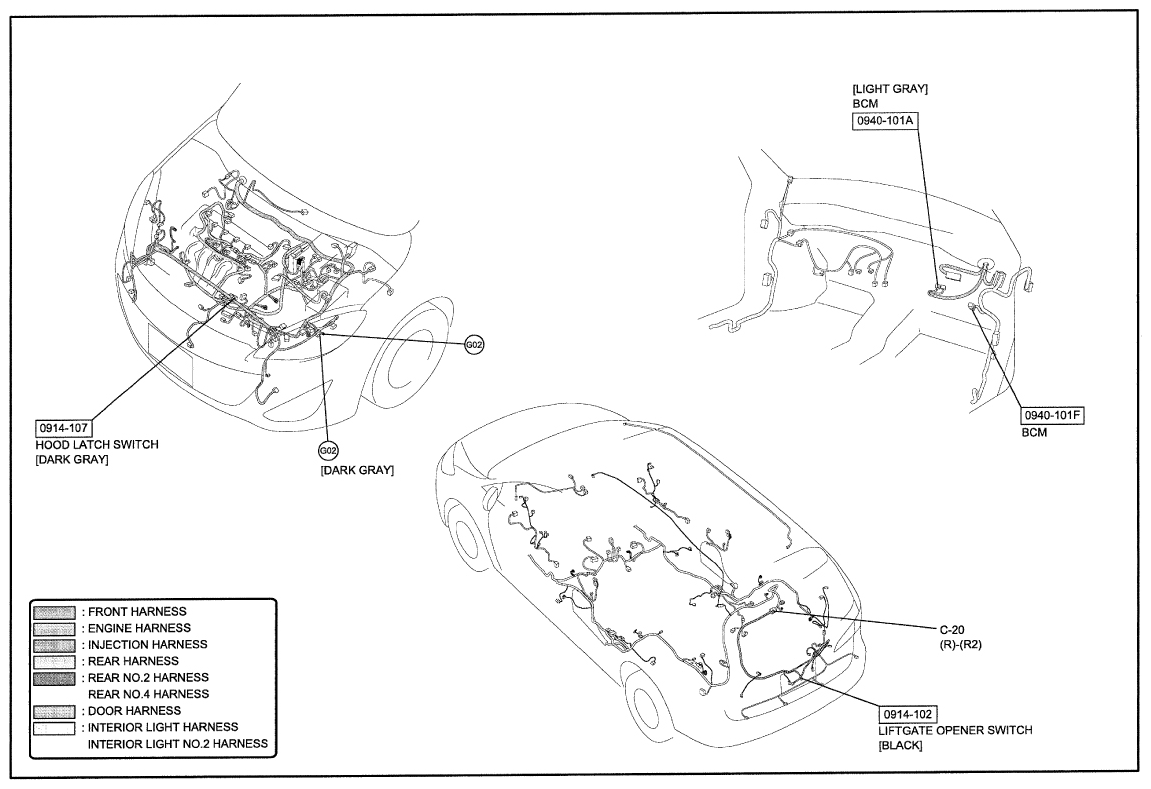

Fig 6: Door Lock System Wiring Diagram - 0914-1c (2 Of 2)

Fig 7: Door Lock System Wiring Diagram - 0914-1d (1 Of 2)

Fig 8: Door Lock System Wiring Diagram - 0914-1d (2 Of 2)

Fig 9: Door Lock System Wiring Diagram - 0914-1e (1 Of 2)

Fig 10: Door Lock System Wiring Diagram - 0914-1e (2 Of 2)

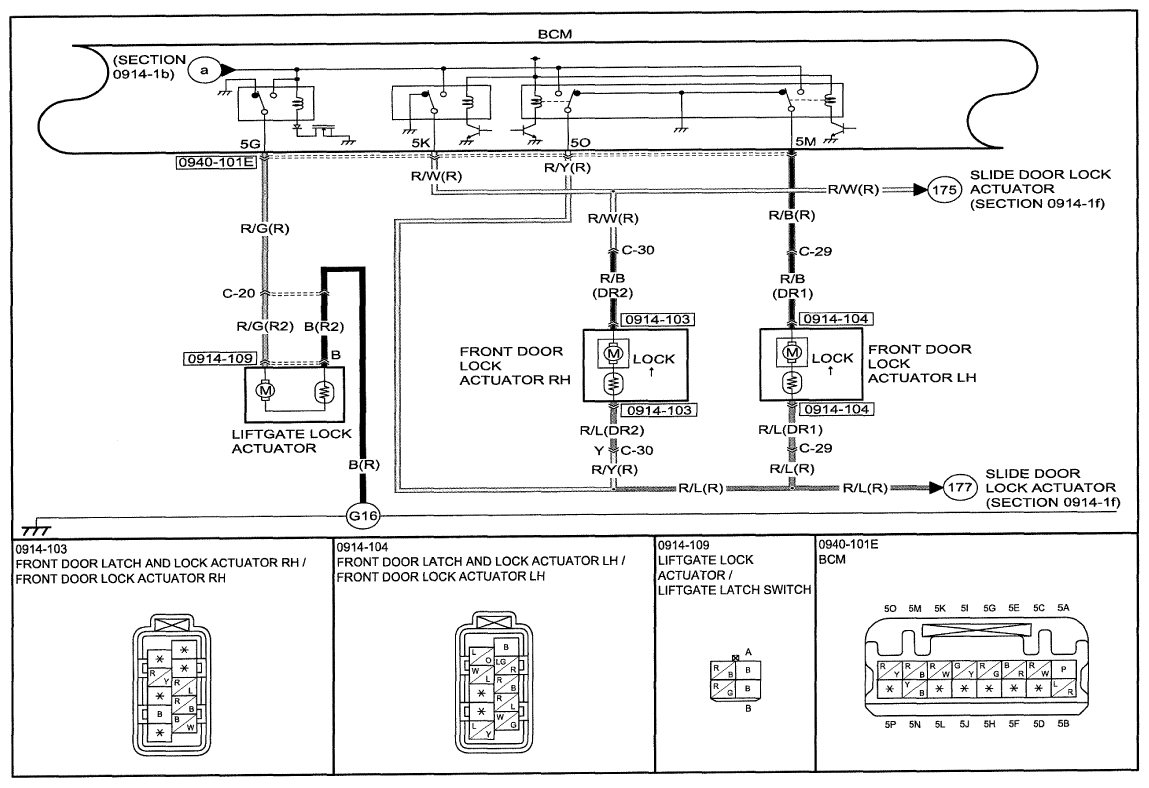

Fig 11: Door Lock System Wiring Diagram - 0914-1f (1 Of 2)

Fig 12: Door Lock System Wiring Diagram - 0914-1f (2 Of 2)

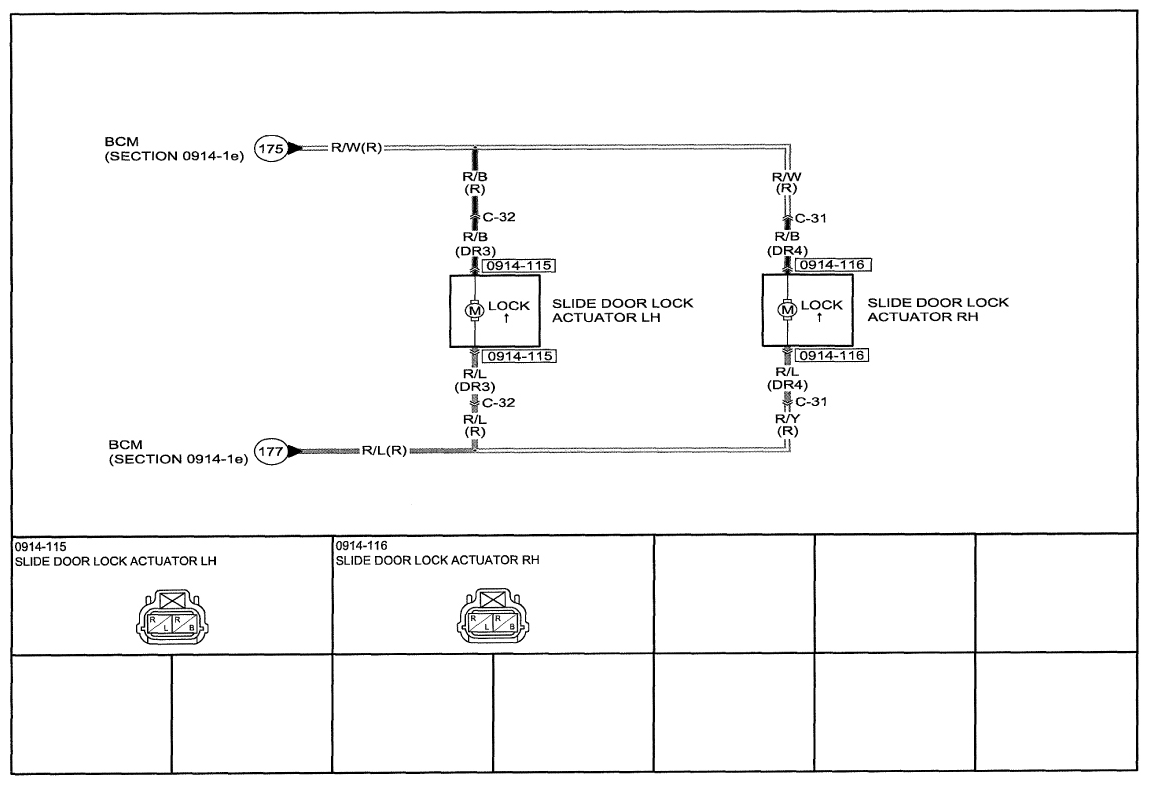

Fig 13: Door Lock System Wiring Diagram - 0914-1g (1 Of 2)

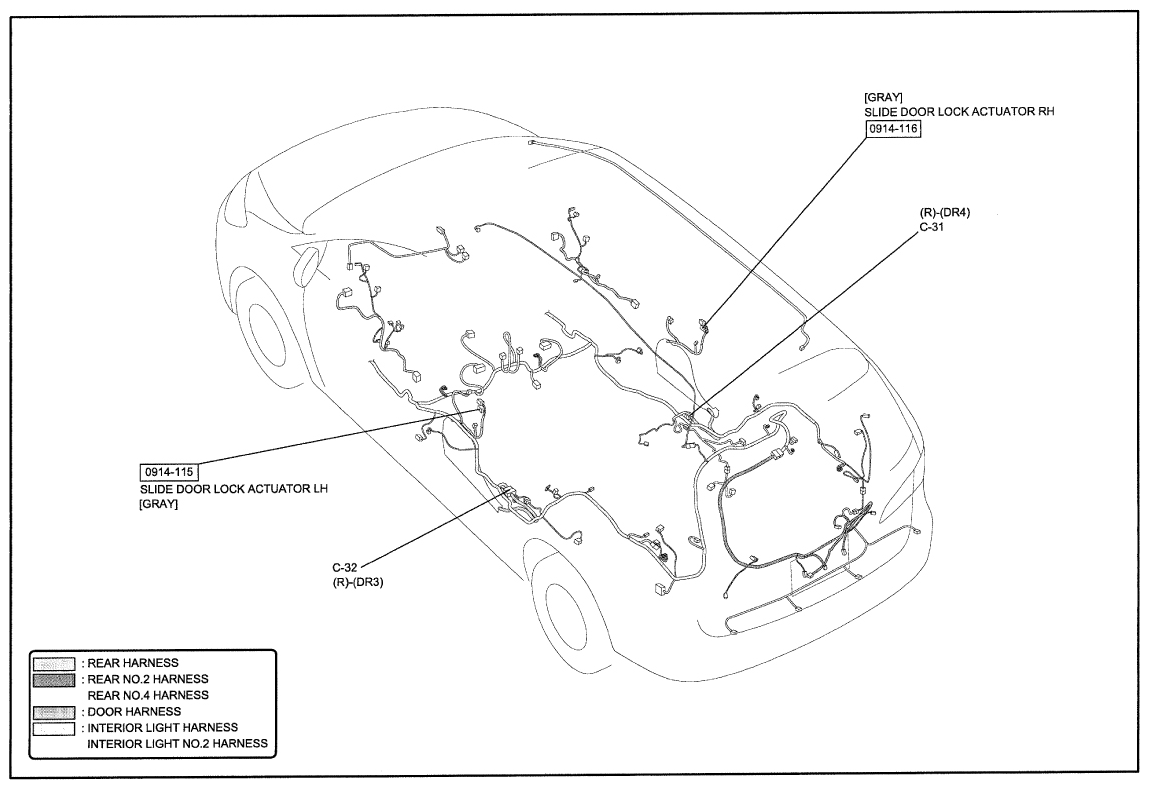

Fig 14: Door Lock System Wiring Diagram - 0914-1g (2 Of 2)
