Turn And Hazard Warning Light

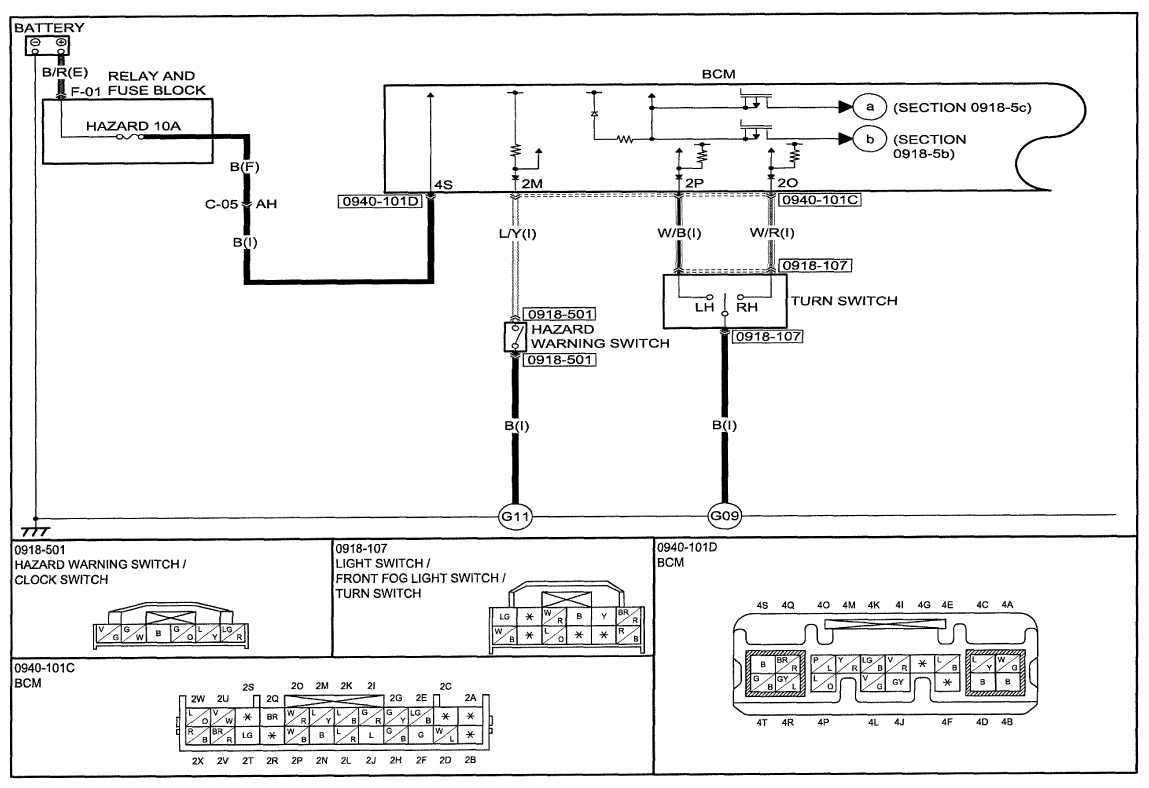

Fig 1: Turn And Hazard Warning Light System Wiring Diagram - 0918-5a (1 Of 2)

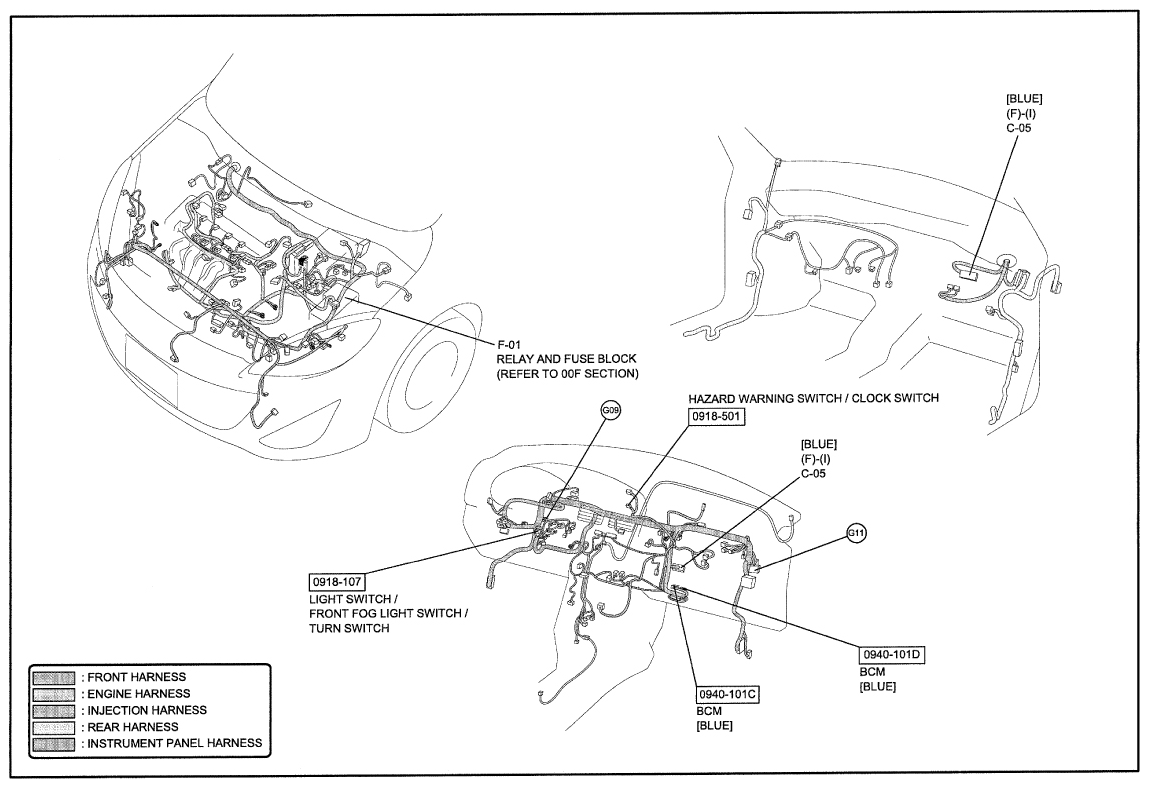

Fig 2: Turn And Hazard Warning Light System Wiring Diagram - 0918-5a (2 Of 2)

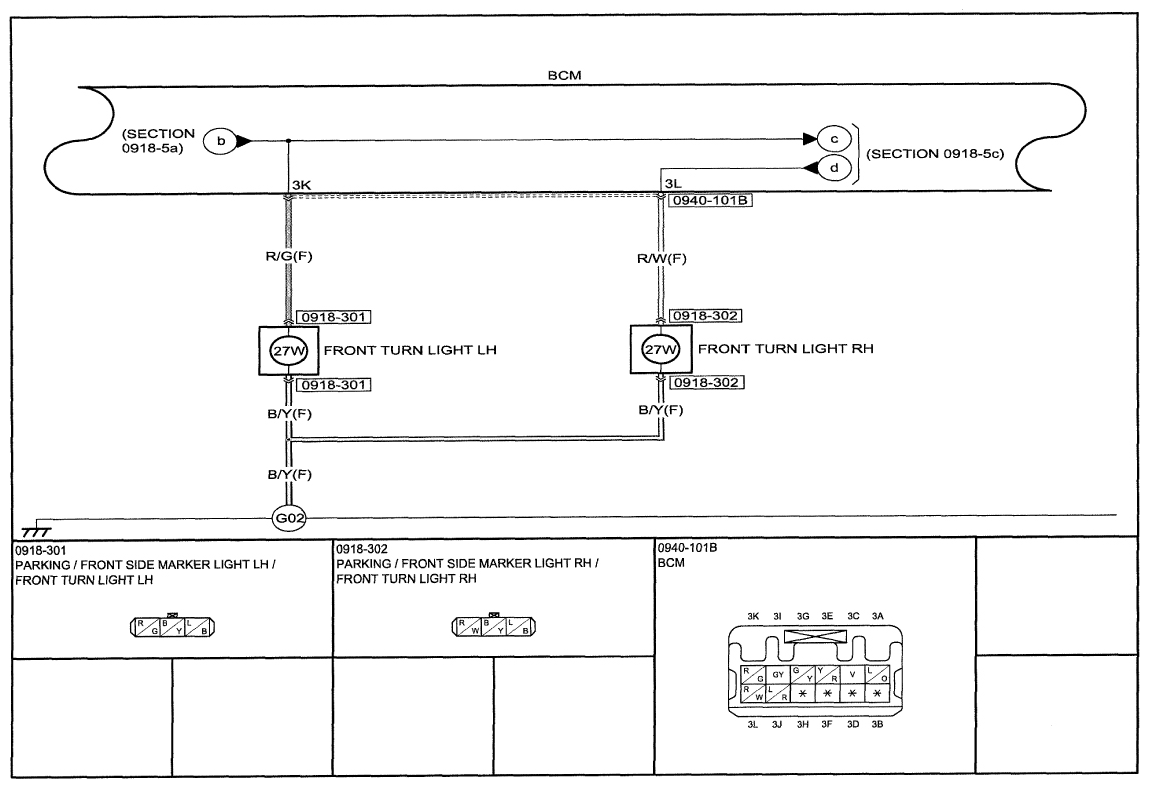

Fig 3: Turn And Hazard Warning Light System Wiring Diagram - 0918-5b (1 Of 2)

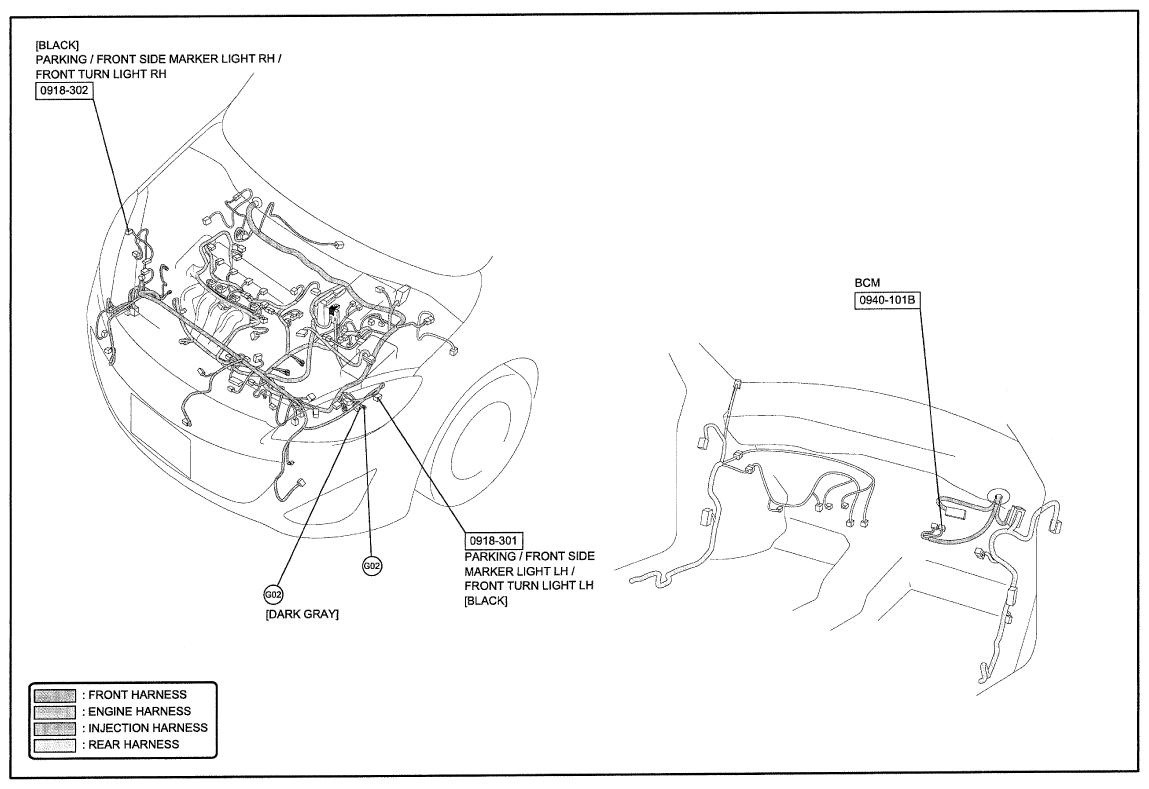

Fig 4: Turn And Hazard Warning Light System Wiring Diagram - 0918-5b (2 Of 2)

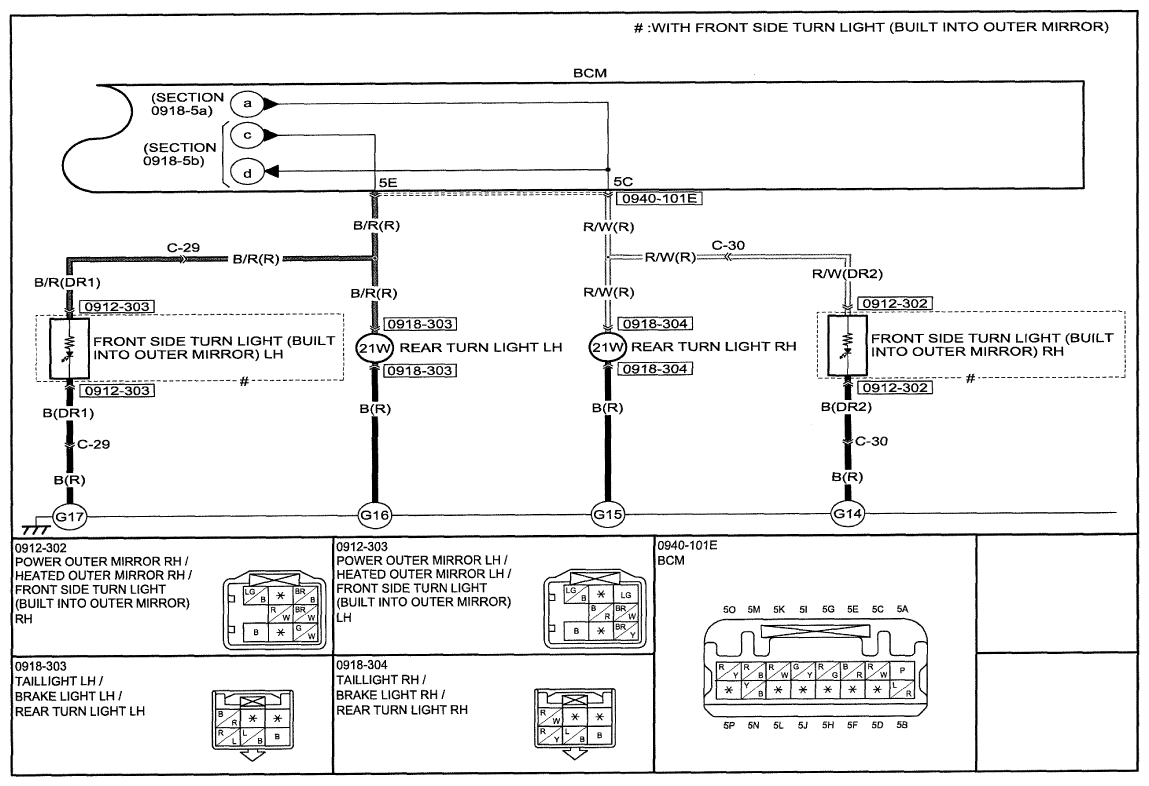

Fig 5: Turn And Hazard Warning Light System Wiring Diagram - 0918-5c (1 Of 2)

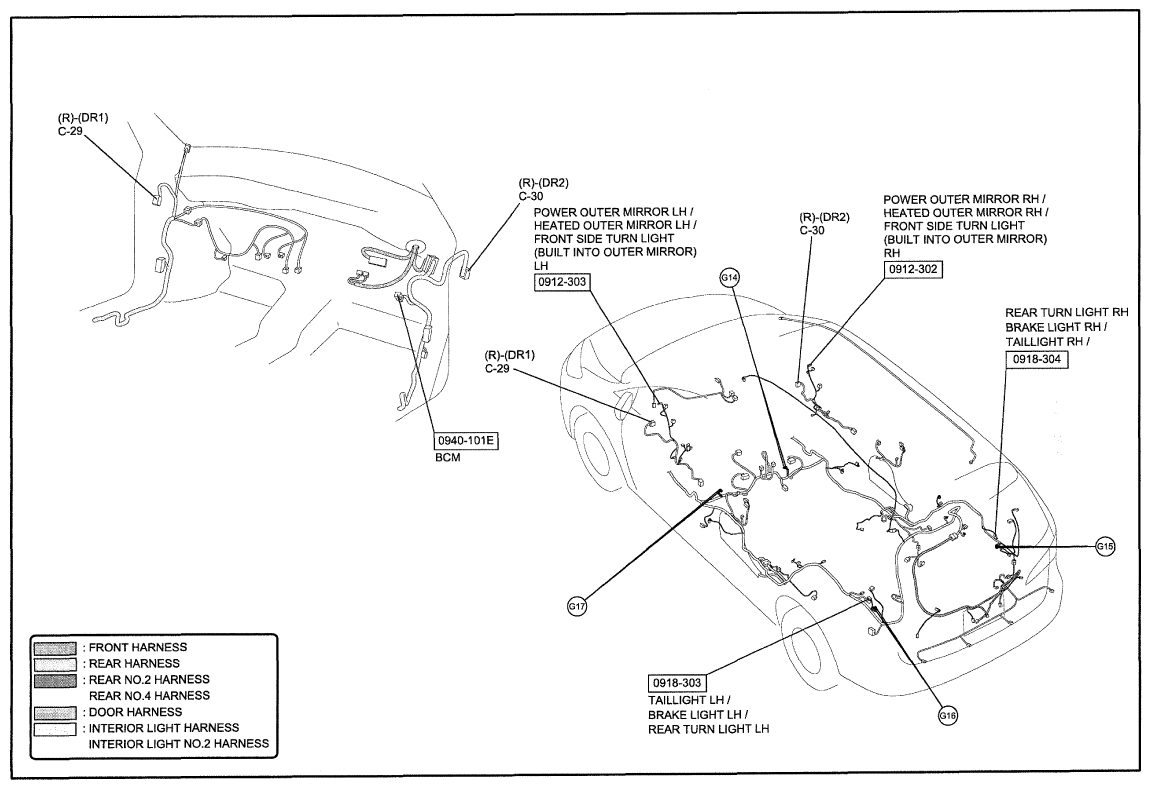

Fig 6: Turn And Hazard Warning Light System Wiring Diagram - 0918-5c (2 Of 2)
