Taillight/Parking Light/License Plate Light

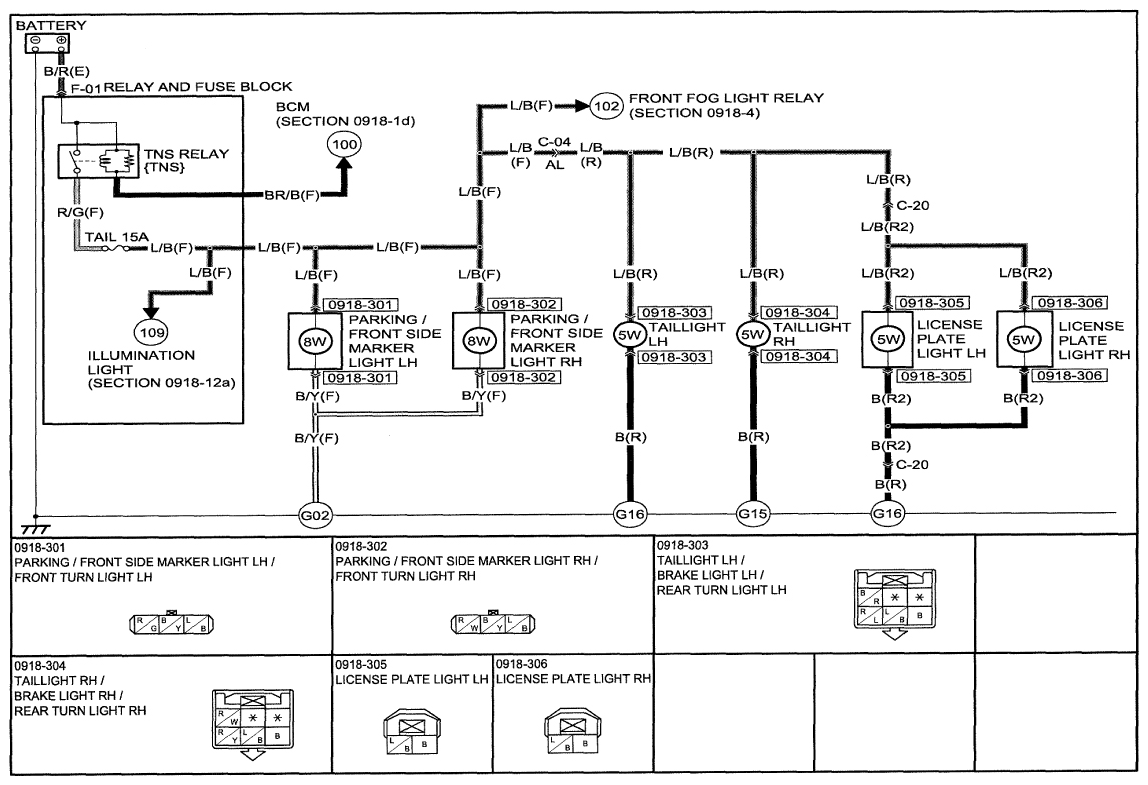

Fig 1: Taillight / Parking Light / License Plate Light System Wiring Diagram - 0918-3 (1 Of 2)
G09125101
Fig 2: Taillight / Parking Light / License Plate Light System Wiring Diagram - 0918-3 (2 Of 2)
G09125102
