Brake Light/High-Mount Brake Light

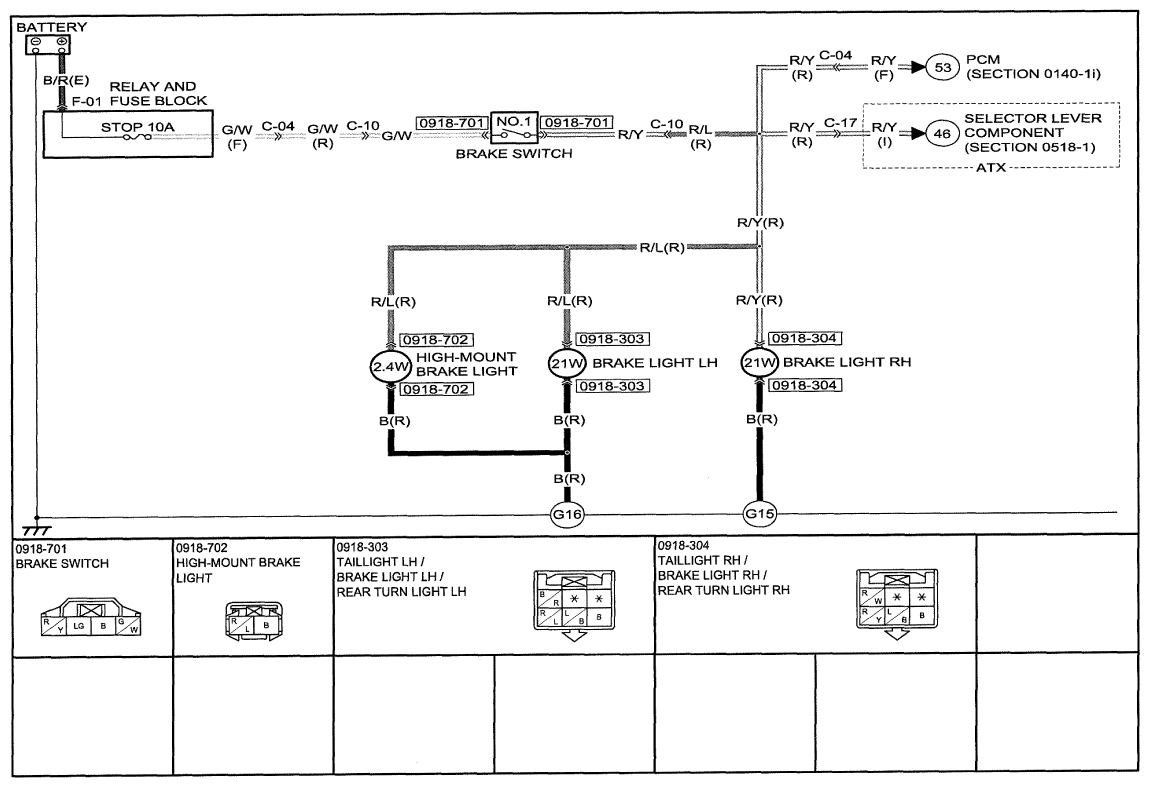

Fig 1: Brake Light / High-Mount Brake Light System Wiring Diagram - 0918-7 (1 Of 2)
G09125113

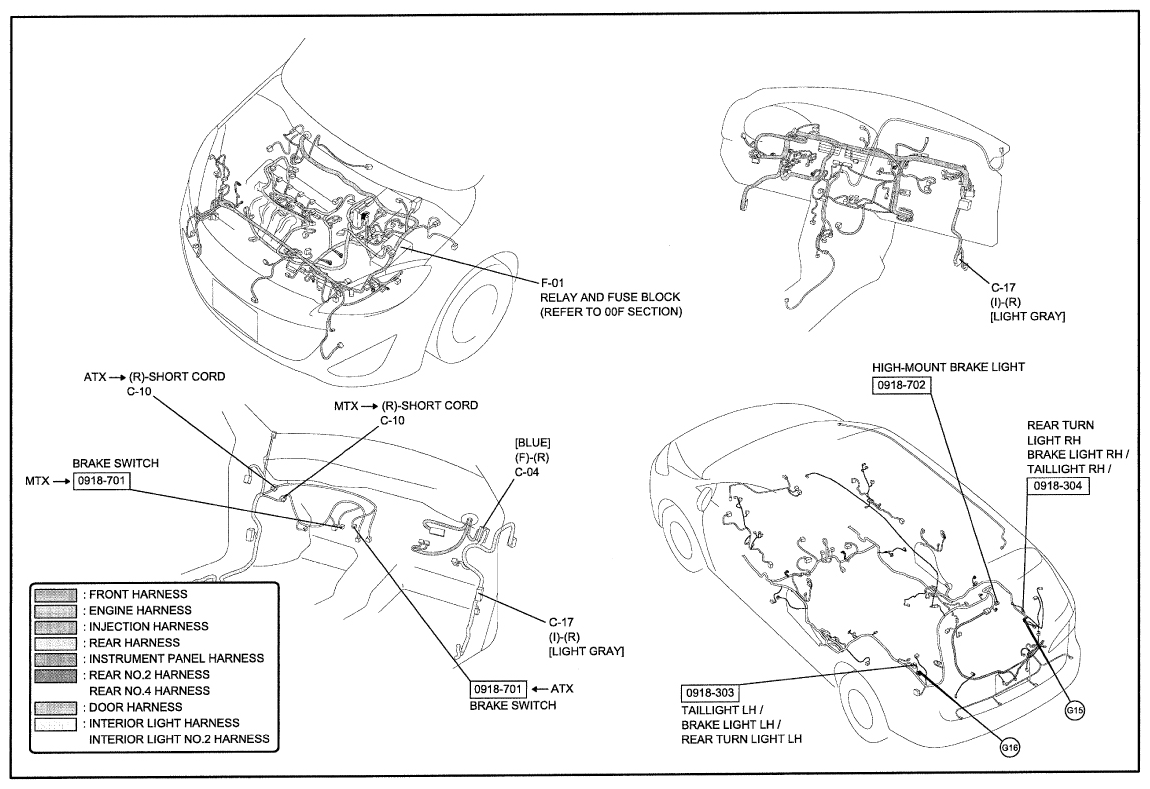

Fig 2: Brake Light / High-Mount Brake Light System Wiring Diagram - 0918-7 (2 Of 2)
G09125114
