Information Display
Information Display

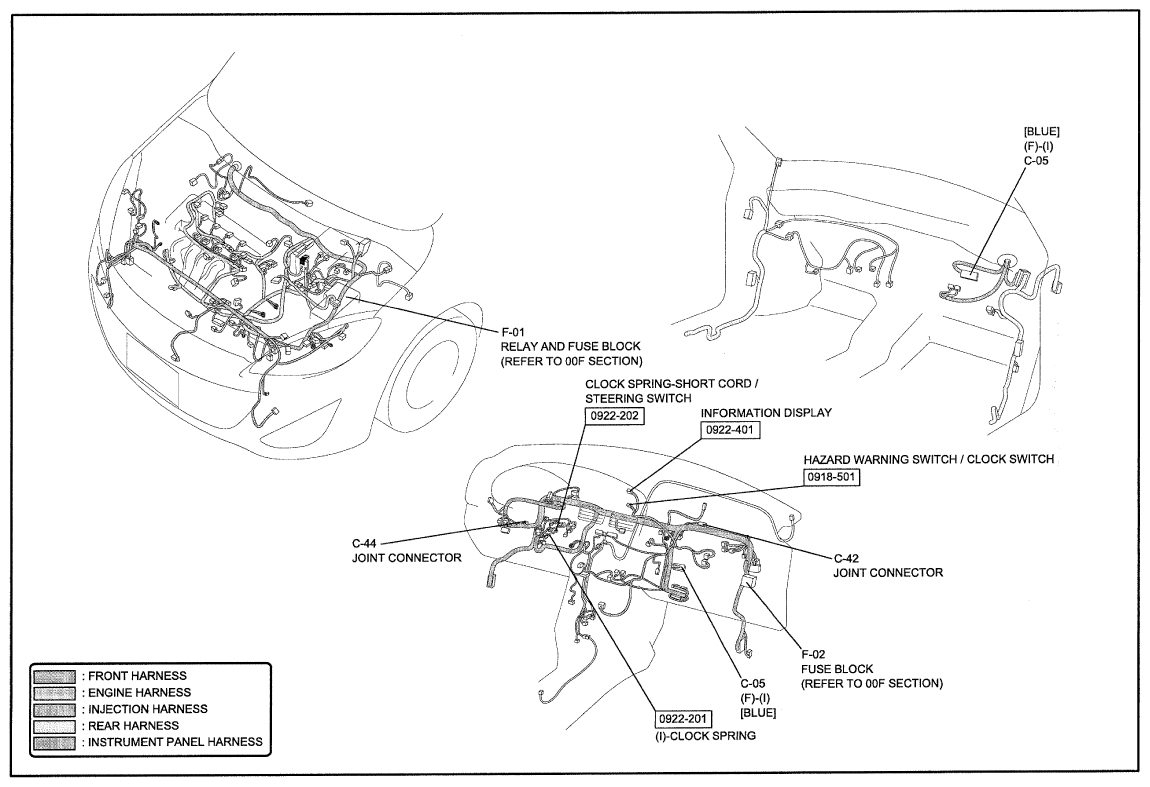

Fig 1: Information Display System Wiring Diagram - 0922-4a (1 Of 2)

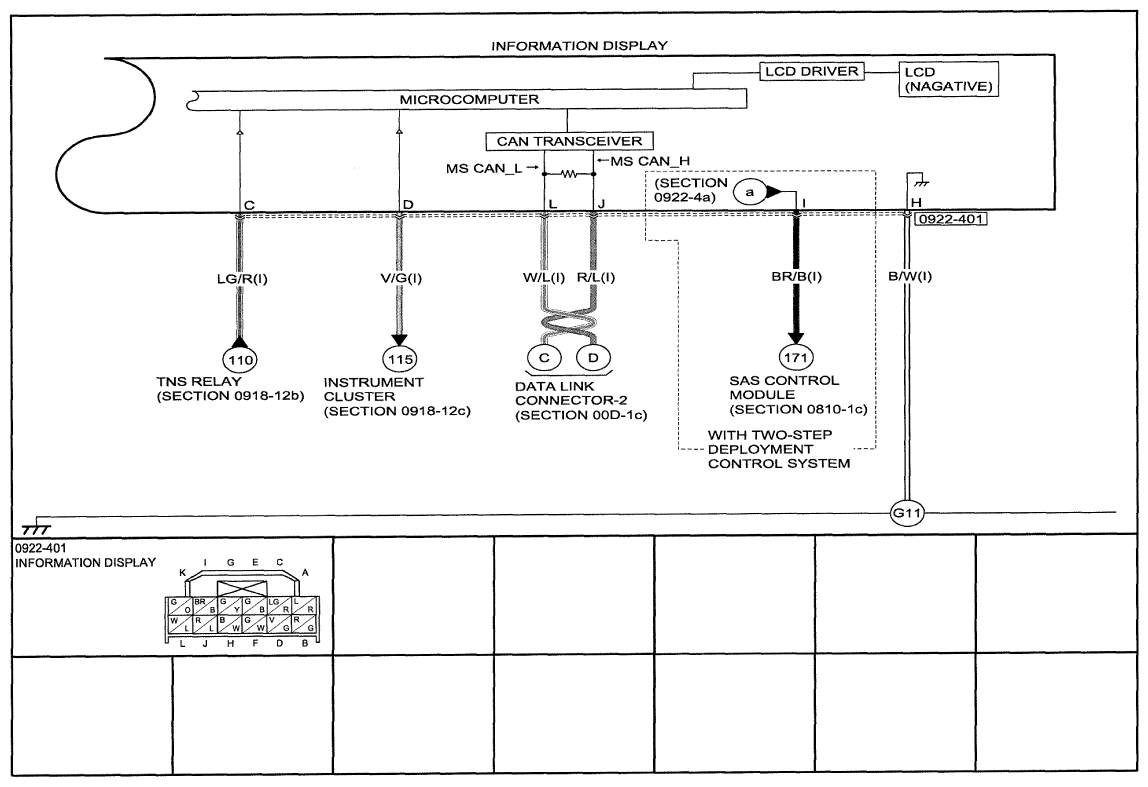

Fig 2: Information Display System Wiring Diagram - 0922-4a (2 Of 2)

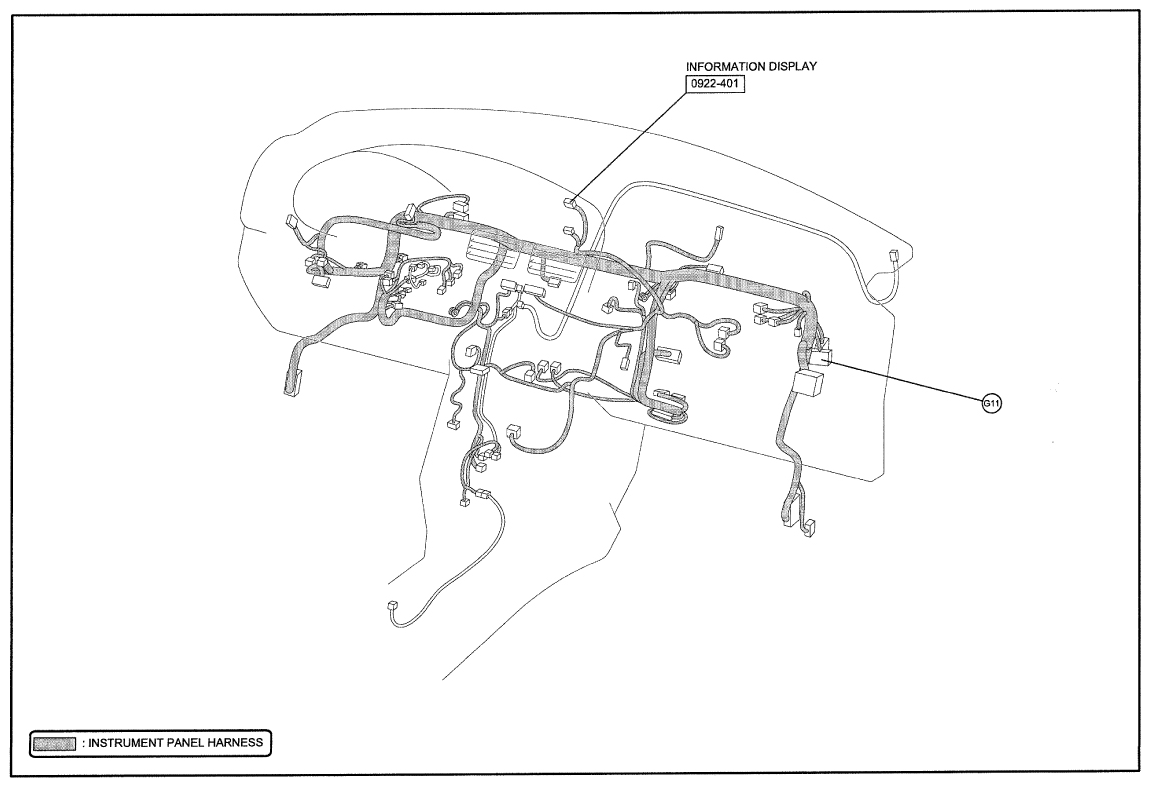

Fig 3: Information Display System Wiring Diagram - 0922-4b (1 Of 2)

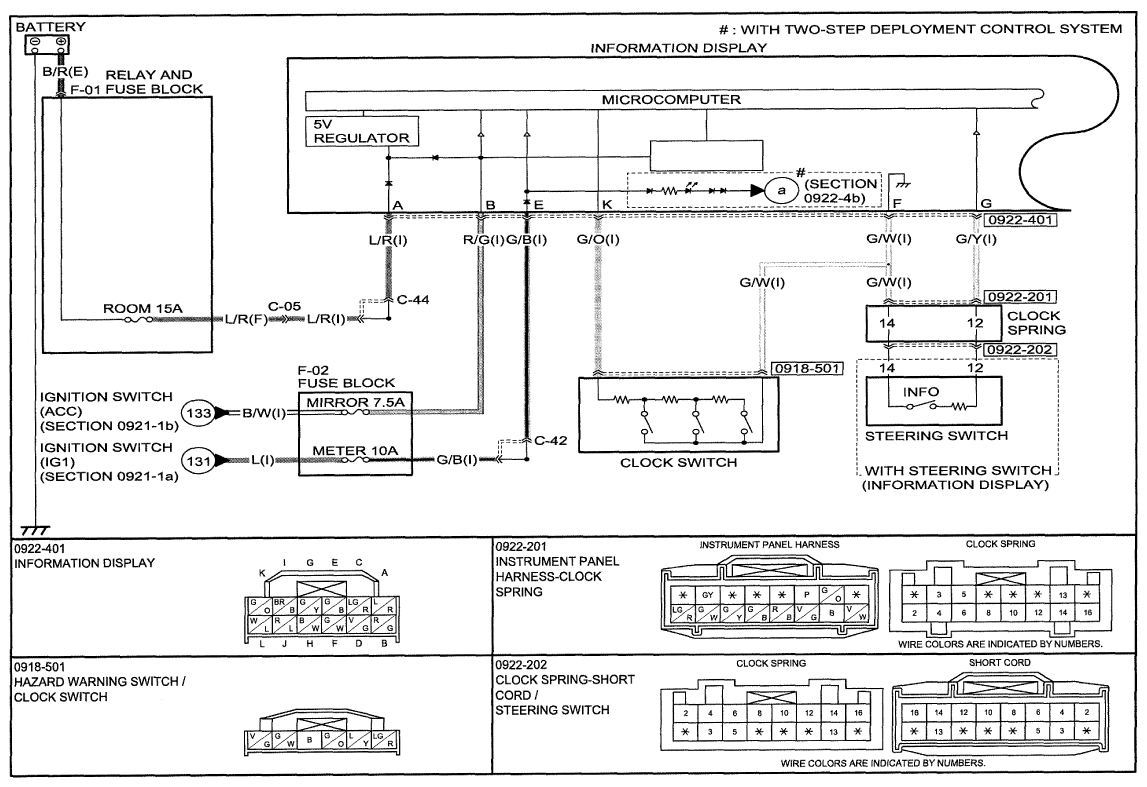

Fig 4: Information Display System Wiring Diagram - 0922-4b (2 Of 2)
