Repair and Diagnosis (Single Page)
>>
Electrical
>>
Fuses & Circuit Breakers
>>
OEM Wiring System
>>
General Information
>>
Reading Wiring Diagrams
>>
Routing Diagram
Routing Diagram

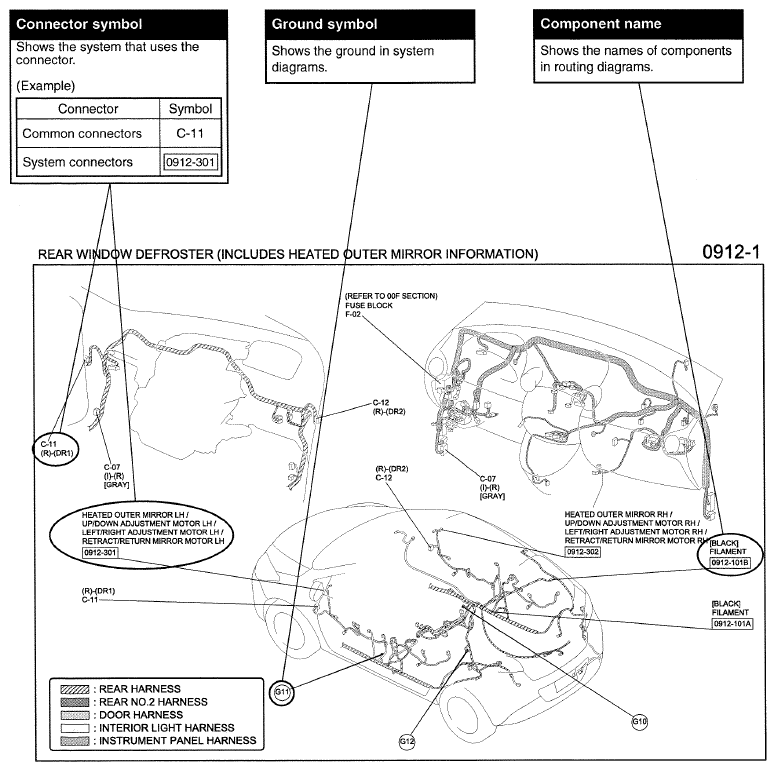

The routing diagram shows where electrical components are on the system circuit diagram by call out line and connector symbols.
Fig 1: Example Of Wiring Diagrams
