Wiper And Washer
Fig 1: Wiper And Washer System Wiring Diagram - 0919-2a (1 Of 2)
Fig 2: Wiper And Washer System Wiring Diagram - 0919-2a (2 Of 2)

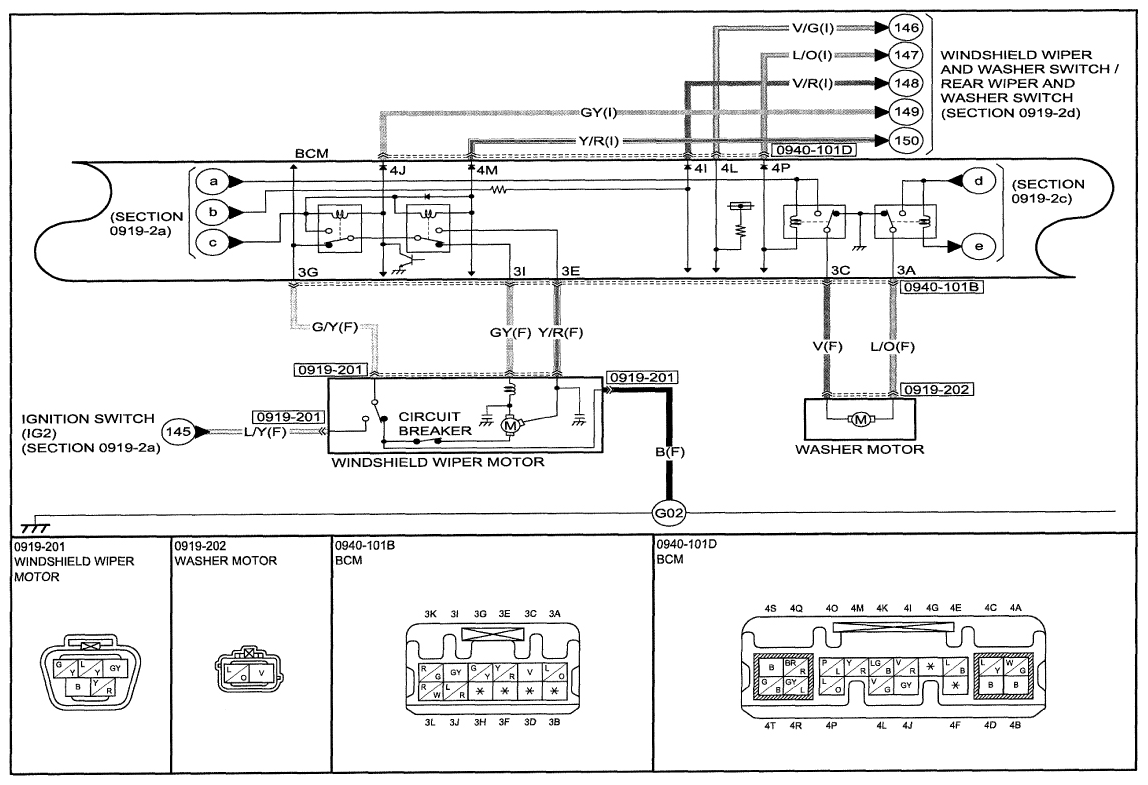

Fig 3: Wiper And Washer System Wiring Diagram - 0919-2b (1 Of 2)

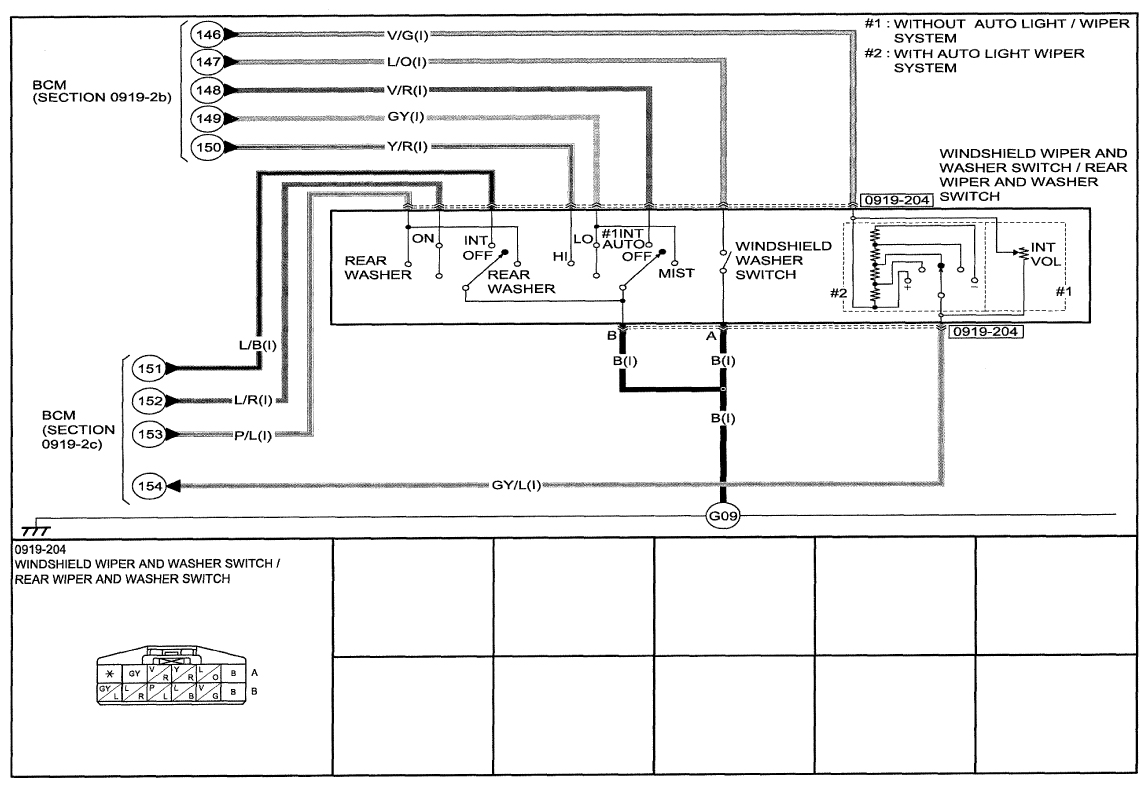

Fig 4: Wiper And Washer System Wiring Diagram - 0919-2b (2 Of 2)
Fig 5: Wiper And Washer System Wiring Diagram - 0919-2c (1 Of 2)
Fig 6: Wiper And Washer System Wiring Diagram - 0919-2c (2 Of 2)
Fig 7: Wiper And Washer System Wiring Diagram - 0919-2d (1 Of 2)
Fig 8: Wiper And Washer System Wiring Diagram - 0919-2d (2 Of 2)
