Body & Accessories: Sunroof

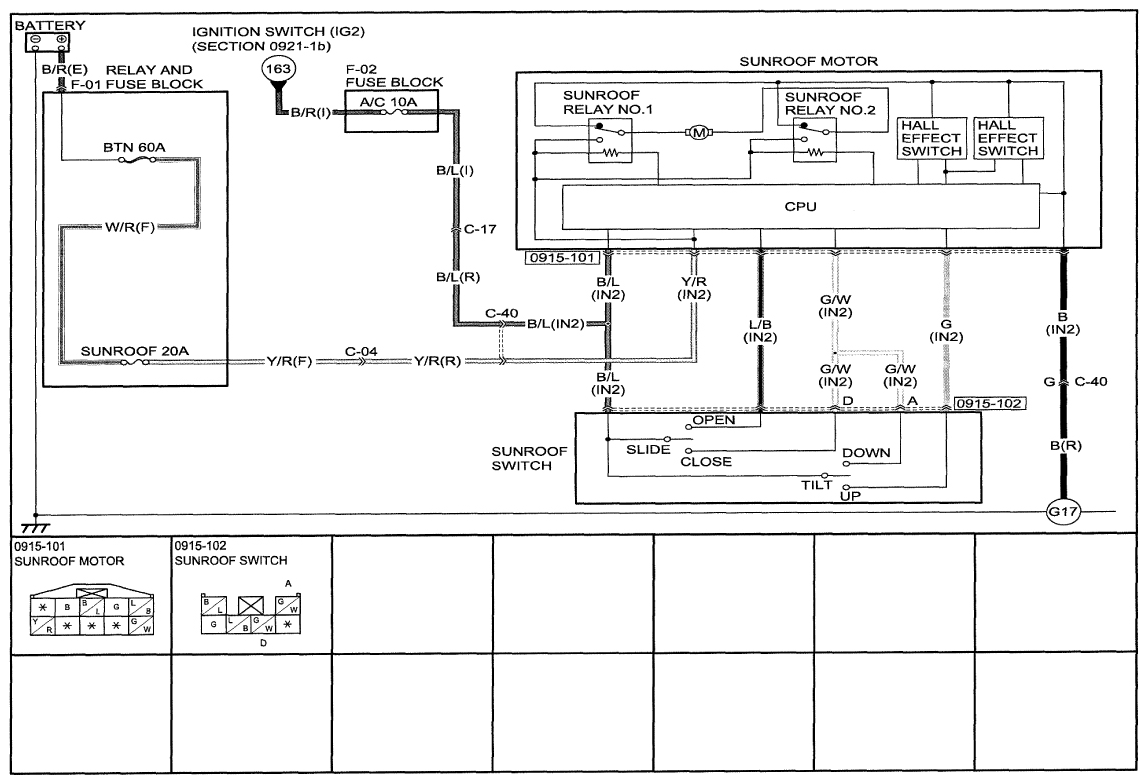

Fig 1: Sunroof System Wiring Diagram - 0915-1 (1 Of 2)

G09125089

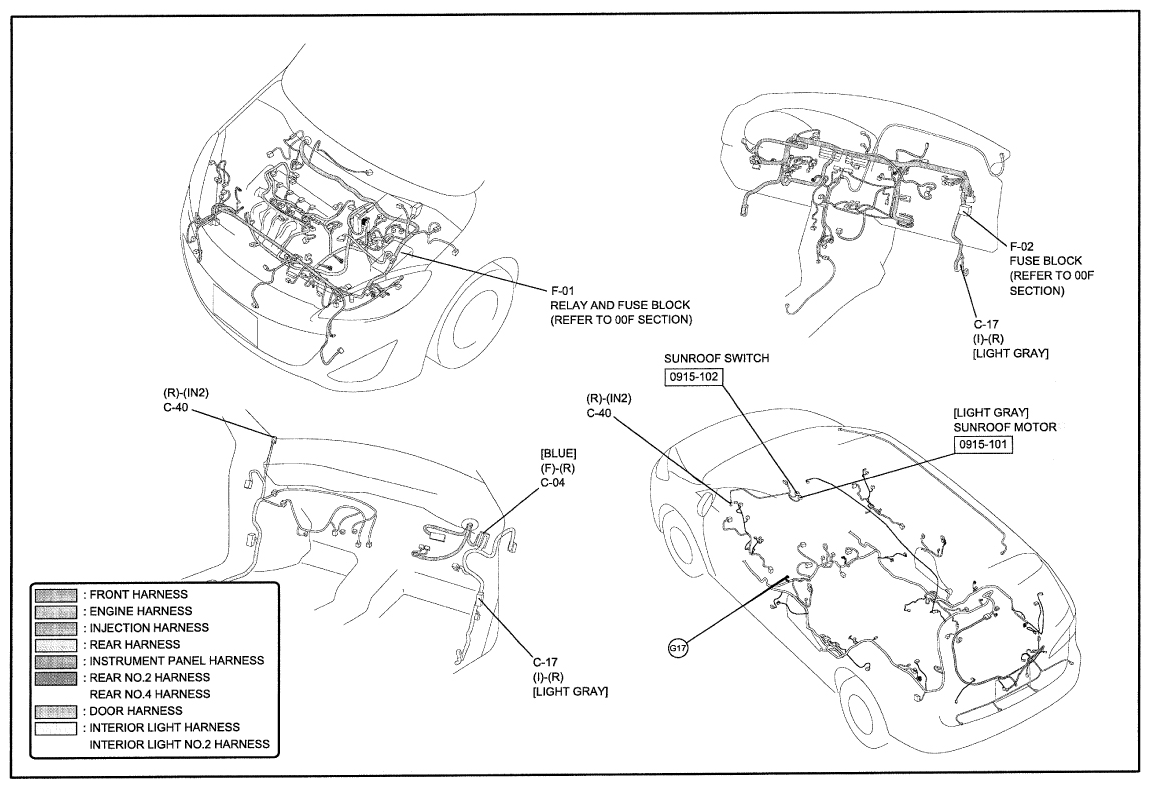

Fig 2: Sunroof System Wiring Diagram - 0915-1 (2 Of 2)

G09125090
