Instrumentation/Driver Info: Horn

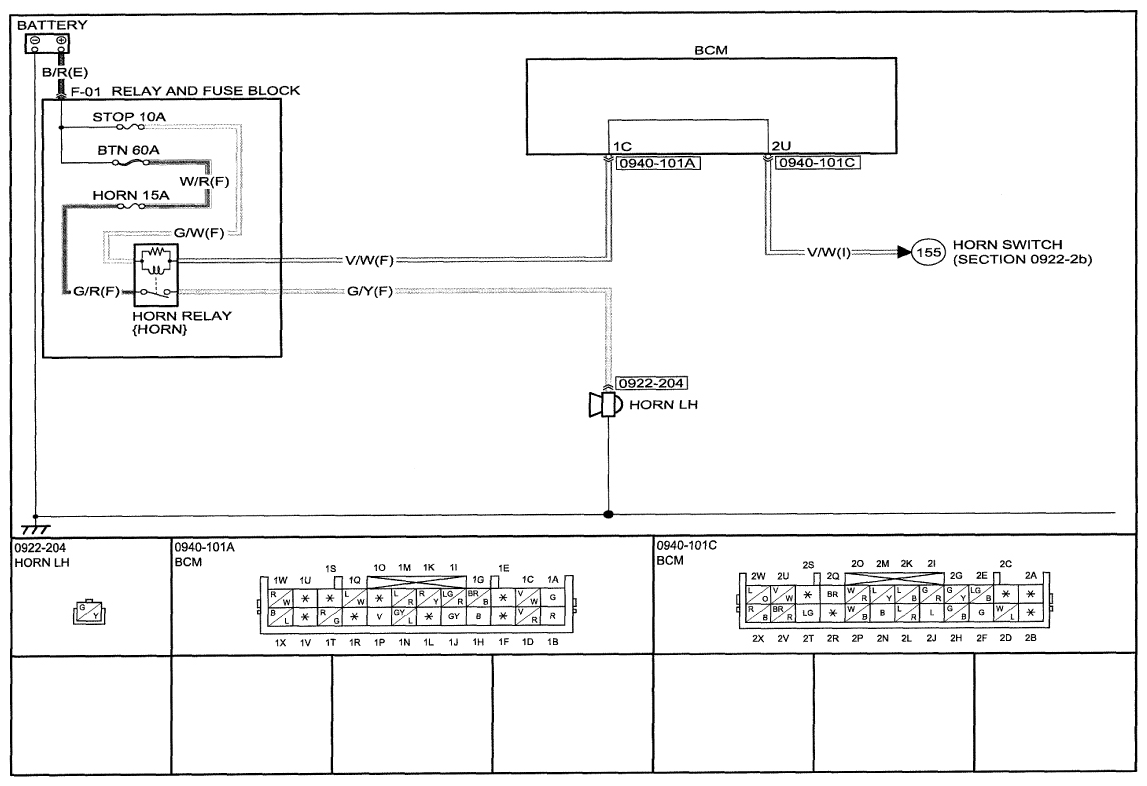

Fig 1: Horn System Wiring Diagram - 0922-2a (1 Of 2)
G09125173

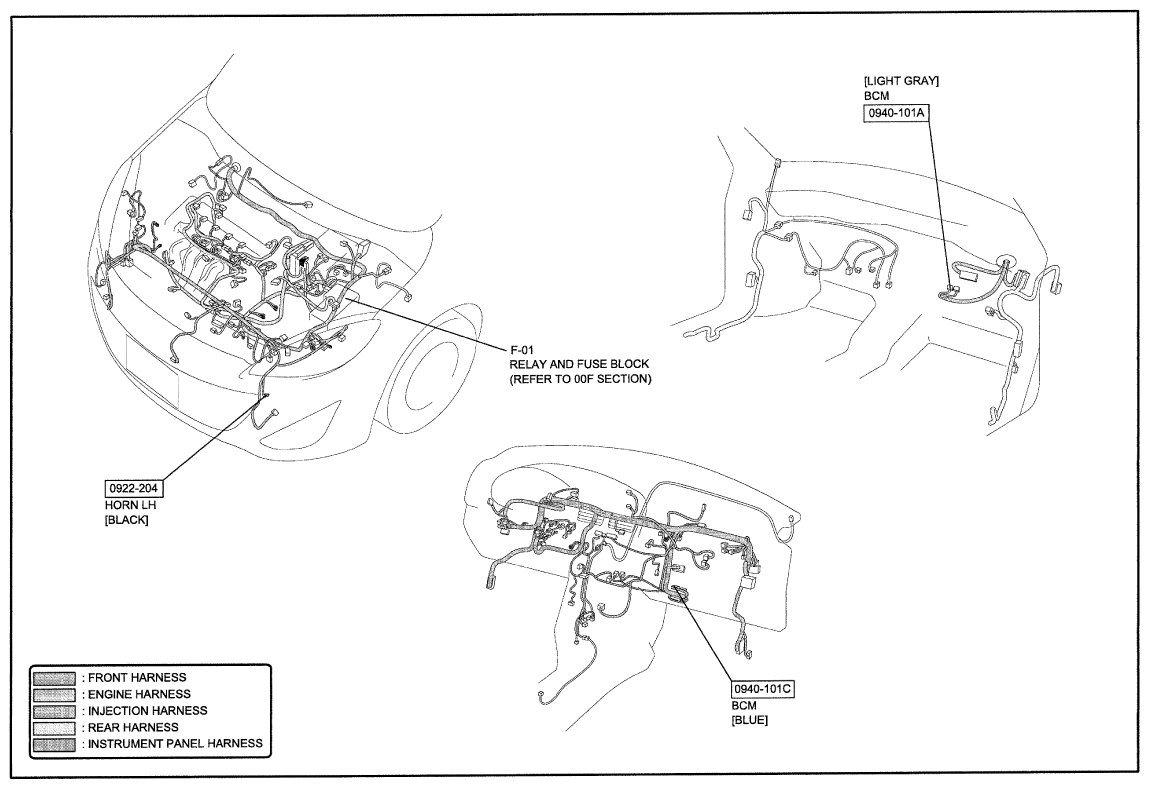

Fig 2: Horn System Wiring Diagram - 0922-2a (2 Of 2)
G09125174

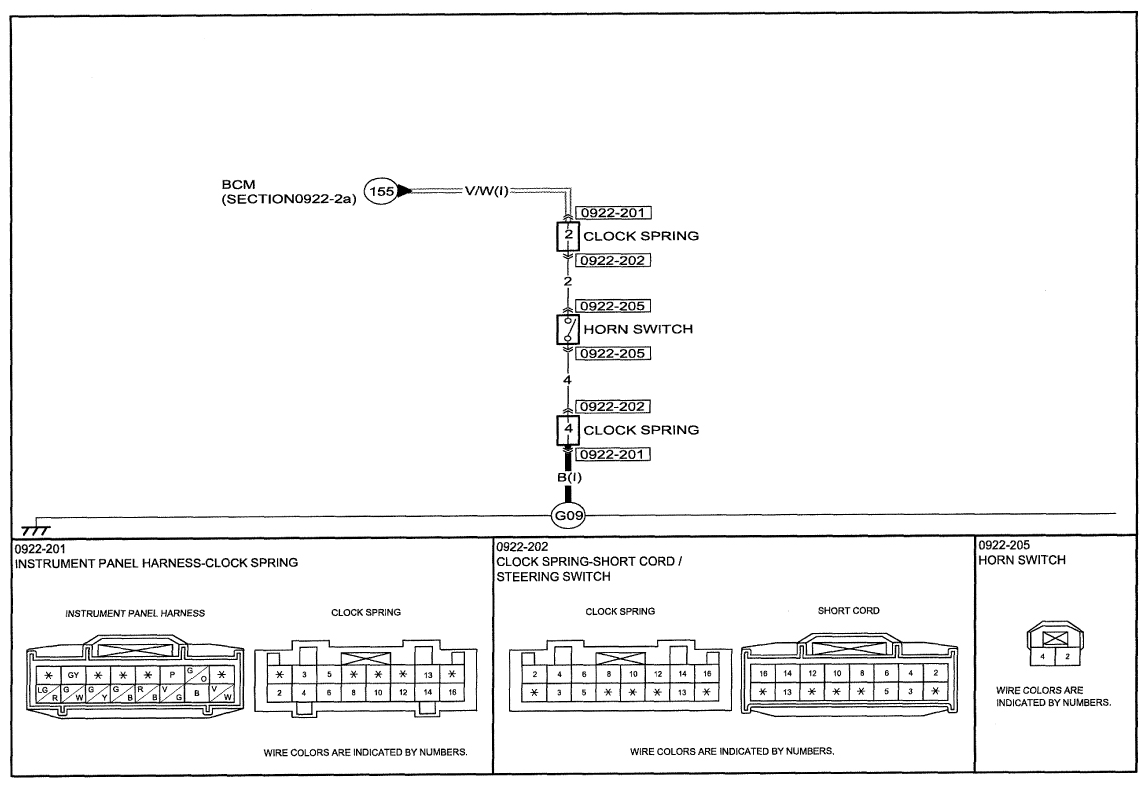

Fig 3: Horn System Wiring Diagram - 0922-2b (1 Of 2)
G09125175

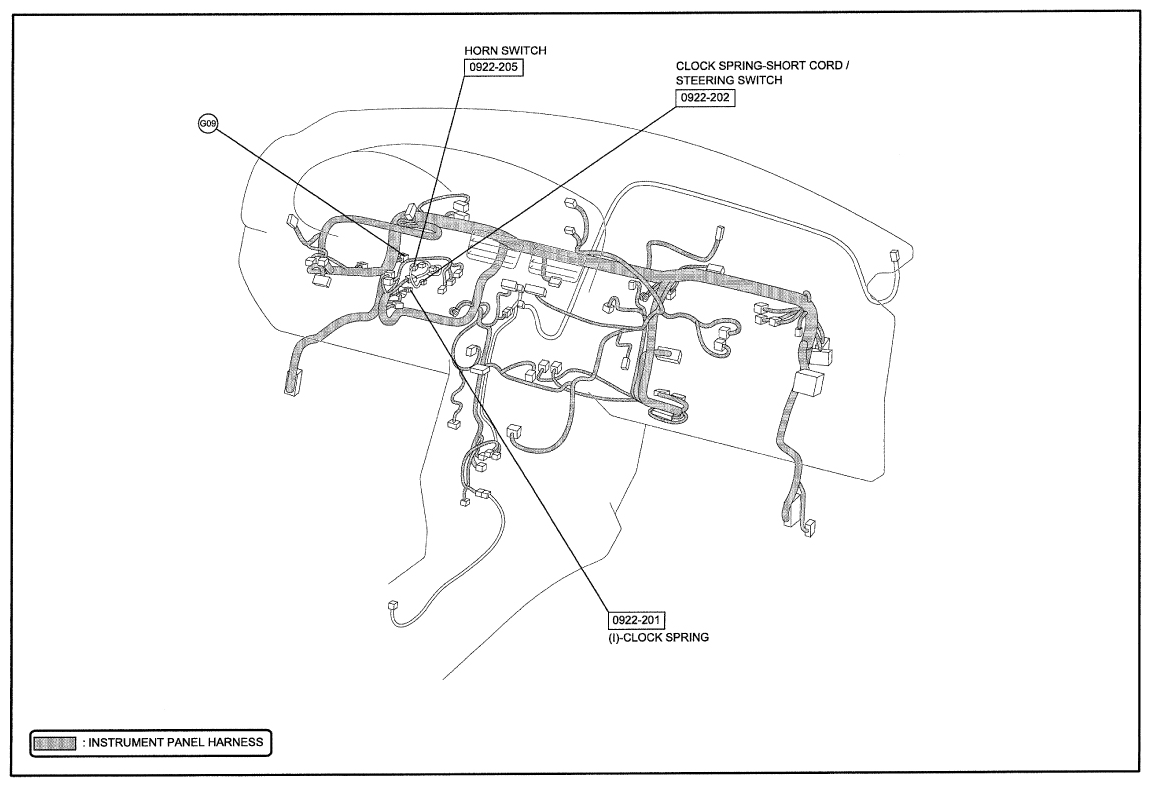

Fig 4: Horn System Wiring Diagram - 0922-2b (2 Of 2)
G09125176
