Glove Compartment Removal/Installation

  1. Pull the stay damper in the direction (1) shown in the figure, and detach the hook A between the glove compartment and the stay damper.
    CAUTION:
    • If the glove compartment is closed without being joined to the stay damper, the stay damper may be damaged. Verify that the stay damper is joined to the glove compartment before closing the glove compartment.
  2. Pull up the hook B in the direction of arrow (2) and remove it in the direction of arrow (3) shown in the figure.
  3. Detach the hook C in the direction of arrow (4) from the dashboard and remove the glove compartment.

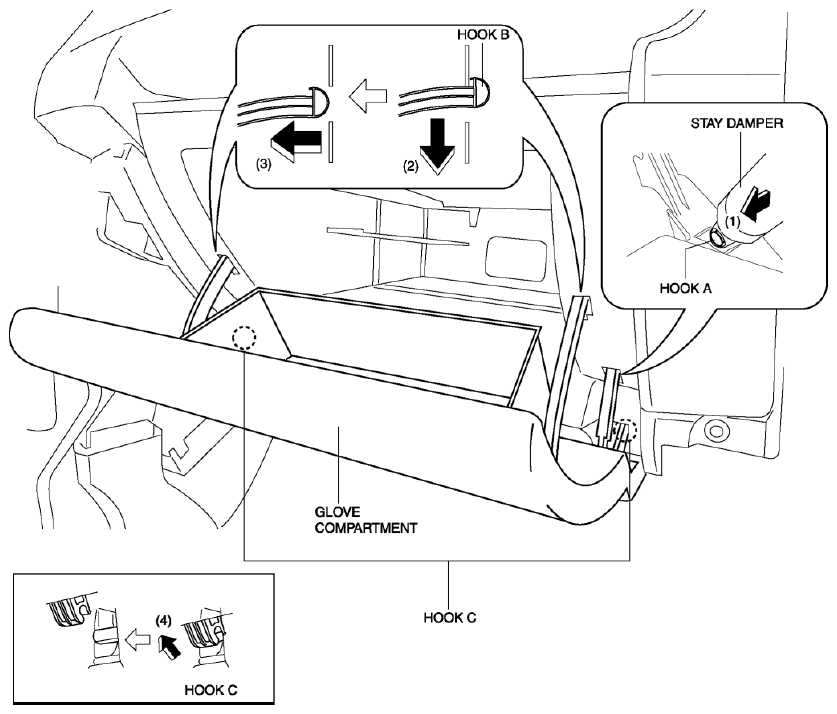

    Fig 1: Detaching Hook C From Dashboard
    G08153250
  4. Remove the glove compartment.
  5. Install in the reverse order of removal.
