Connection Condition Verification

  1. Launch the on-board diagnostic test mode. (See DTC INSPECTION [BLUETOOTH SYSTEM (HANDS-FREE TELEPHONE SYSTEM)] .)
  2. Press SEEK/TRACK down button to display the software version.

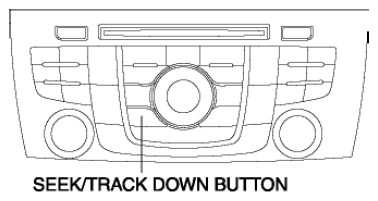

    Fig 1: Identifying Seek/Track Down Button
    G08152603
  3. Press the SEEK/TRACK down button.
  4. Verify the connected unit.
    Fig 2: Display Connected Unit
    G08152604
  5. Switch the ignition OFF (LOCK) to stop the on-board diagnostic test mode.
