Without Using M-MDS (On-board Diagnostic Test Mode)

  1. Launch the on-board diagnostic test mode. (See DTC INSPECTION [BLUETOOTH SYSTEM (HANDS-FREE TELEPHONE SYSTEM)] .)
  2. While pressing the AUTO-M button, simultaneously press the PRESET 4 button for 2 s or more  .

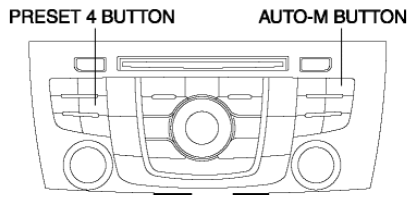

    Fig 1: Identifying Preset 4 And Auto-M Buttons
    G08152596
  3. Switch the ignition OFF (LOCK) to stop the on-board diagnostic test mode.
