Clutch Pedal Position Sensor / Switch: Testing and Inspection

CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [MZR 2.3 DISI Turbo]

Continuity Inspection

1. Verify that the CPP switch is installed properly. Service and Repair

2. Remove the battery cover. Removal and Replacement

3. Disconnect the negative battery cable. Removal and Replacement

4. Disconnect the CPP switch connector. Service and Repair

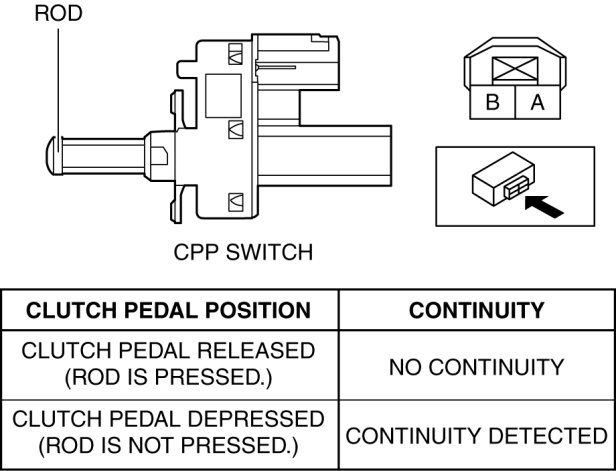

5. Verify that the continuity between CPP switch terminals A and B when the clutch pedal is depressed and when it is released is according to the following table:






- If not as verified, replace the CPP switch. Service and Repair
