Oil Pressure Switch Removal

OIL PRESSURE SWITCH REMOVAL

MZR 2.0, MZR 2.5, MZR 2.3 DISI Turbo

WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

1. Disconnect the negative battery cable.

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

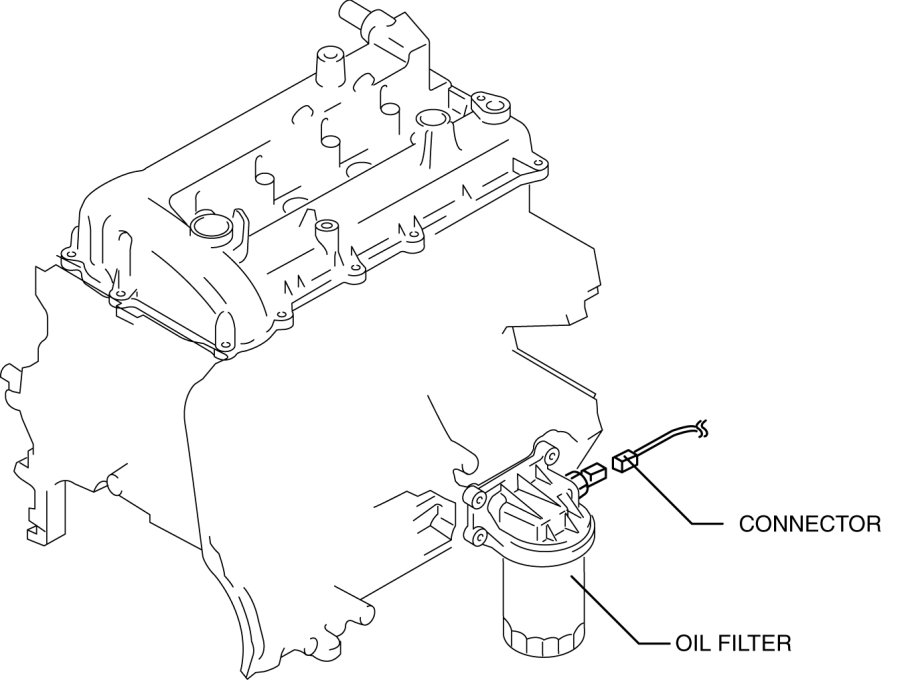

3. Disconnect the connector.

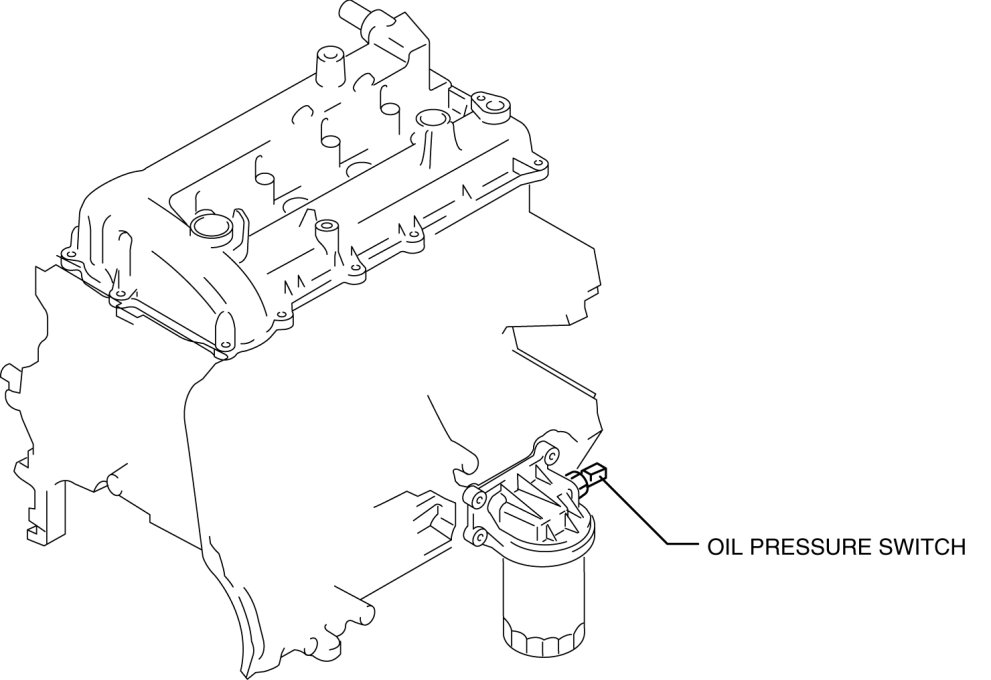

4. Remove the oil pressure switch.





SKYACTIV-G 2.0

WARNING:
- A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

1. Disconnect the negative battery cable.

2. Remove the aerodynamic under cover No.2. Aerodynamic Under Cover No. 2 Removal/Installation

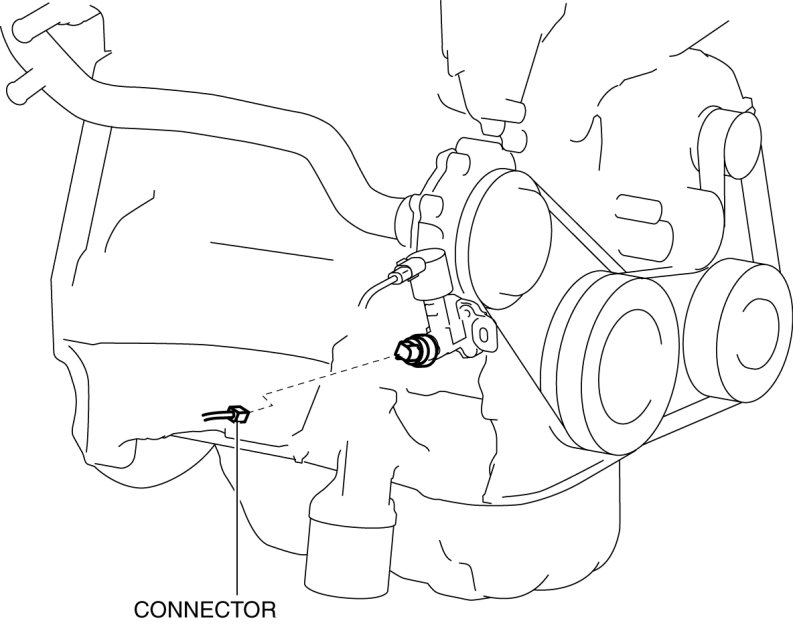

3. Disconnect the connector.

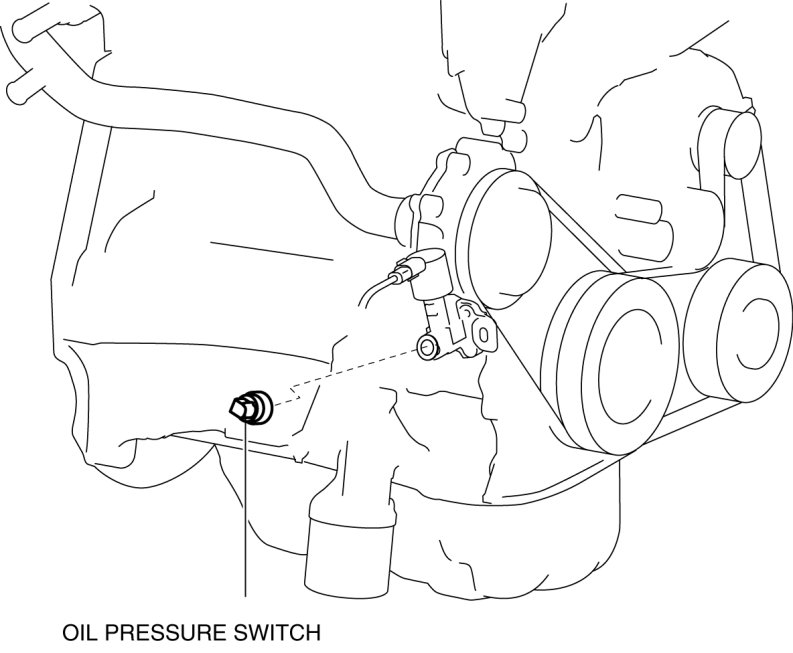

4. Remove the oil pressure switch.
