AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the AFS OFF switch. AFS (Adaptive Front Lighting System) OFF Switch Removal/Installation

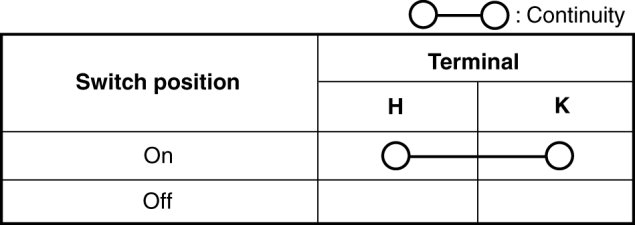

3. Verify that the continuity between the AFS OFF switch terminals is as indicated in the table.






- If the continuity is not as indicated in the table, replace the AFS OFF switch.

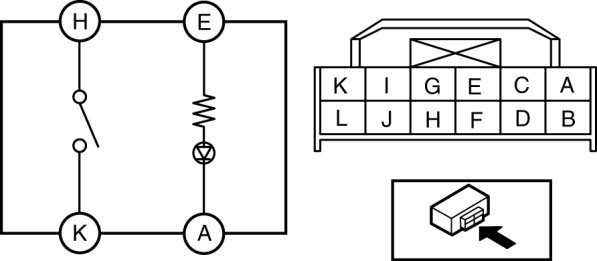

4. Apply battery positive voltage to AFS OFF switch terminal E, and connect terminal A to ground.

5. Verify that the LED illuminates.

- If there is any malfunction, replace the AFS OFF switch.
