AFS (Adaptive Front Lighting System) OFF Switch Removal/Installation

AFS (ADAPTIVE FRONT LIGHTING SYSTEM) OFF SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

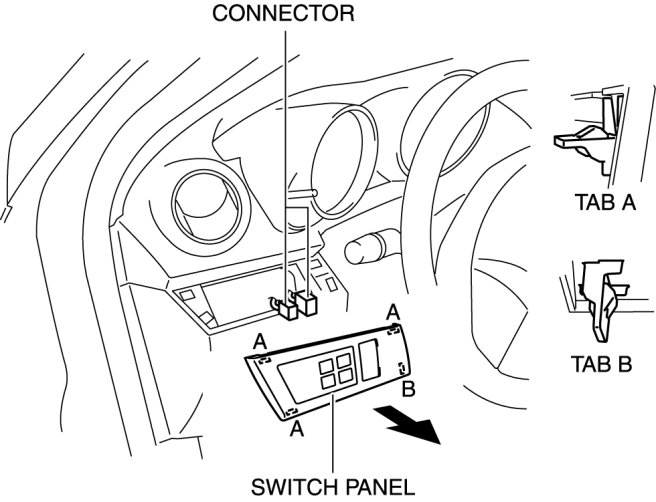

2. Remove the switch panel in the direction of the arrow shown in the figure.






3. Disconnect the connector.

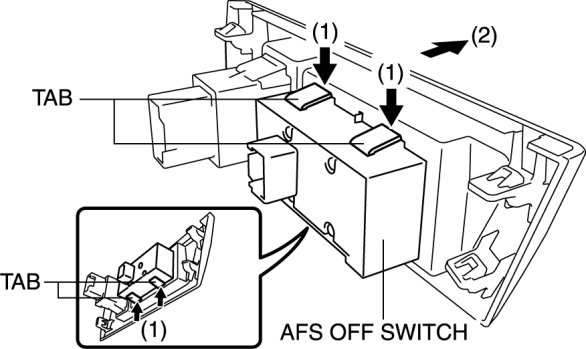

4. Remove the AFS OFF switch in the direction of the arrow (2) shown in the figure while pressing the tabs in the direction of the arrow (1).






5. Remove the AFS OFF switch.

6. Install in the reverse order of removal.
