Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0740-1b (Heater And Air Conditioner System (Manual A/C))

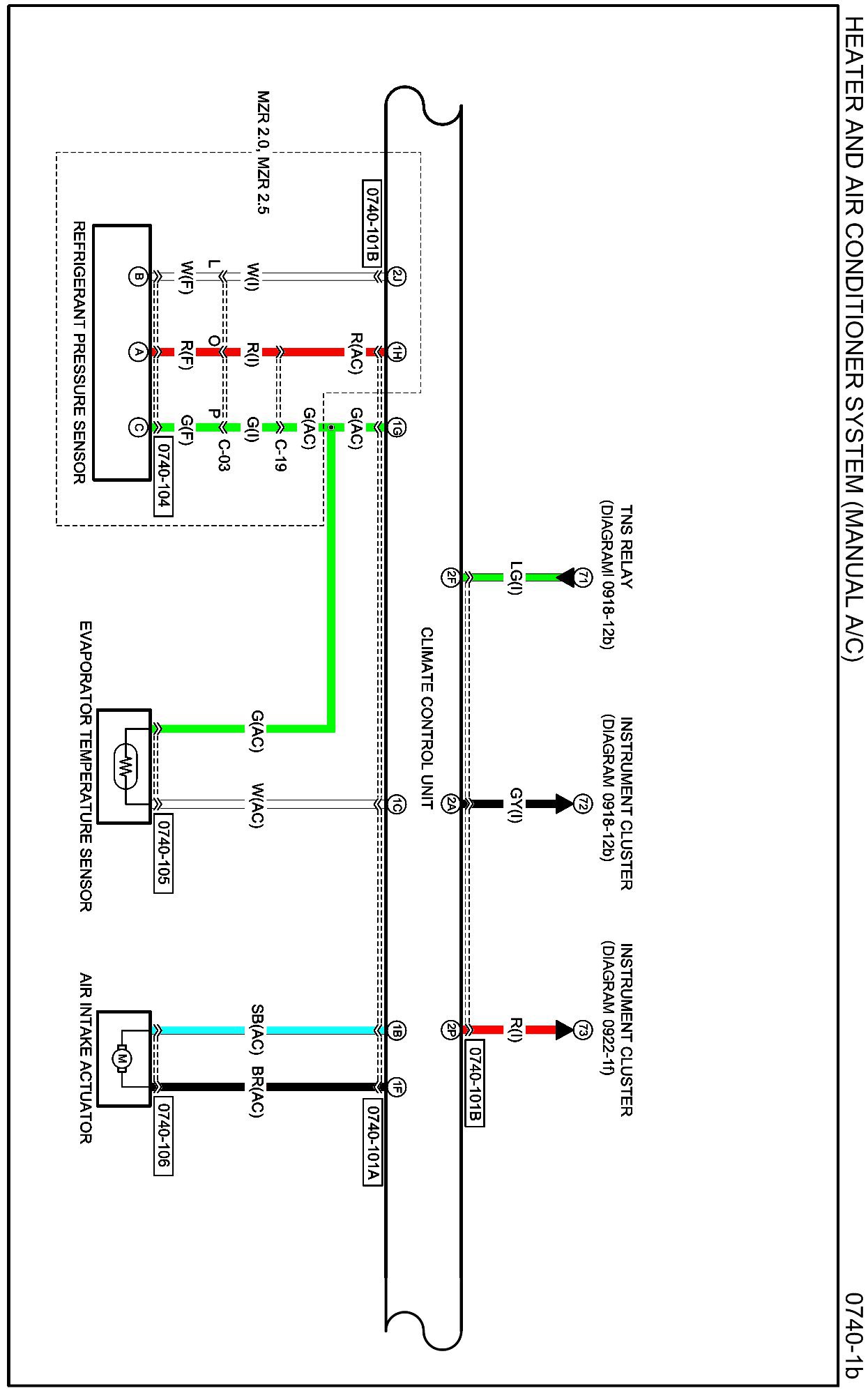

Diagram 0740-1b (Heater And Air Conditioner System (Manual A/C))

Diagram 0740-1b:
