Home >> Mazda >> 2012 >> Mazdaspeed3 L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Connectors >> C-39 (Door No.1 Harness-Short Cord)

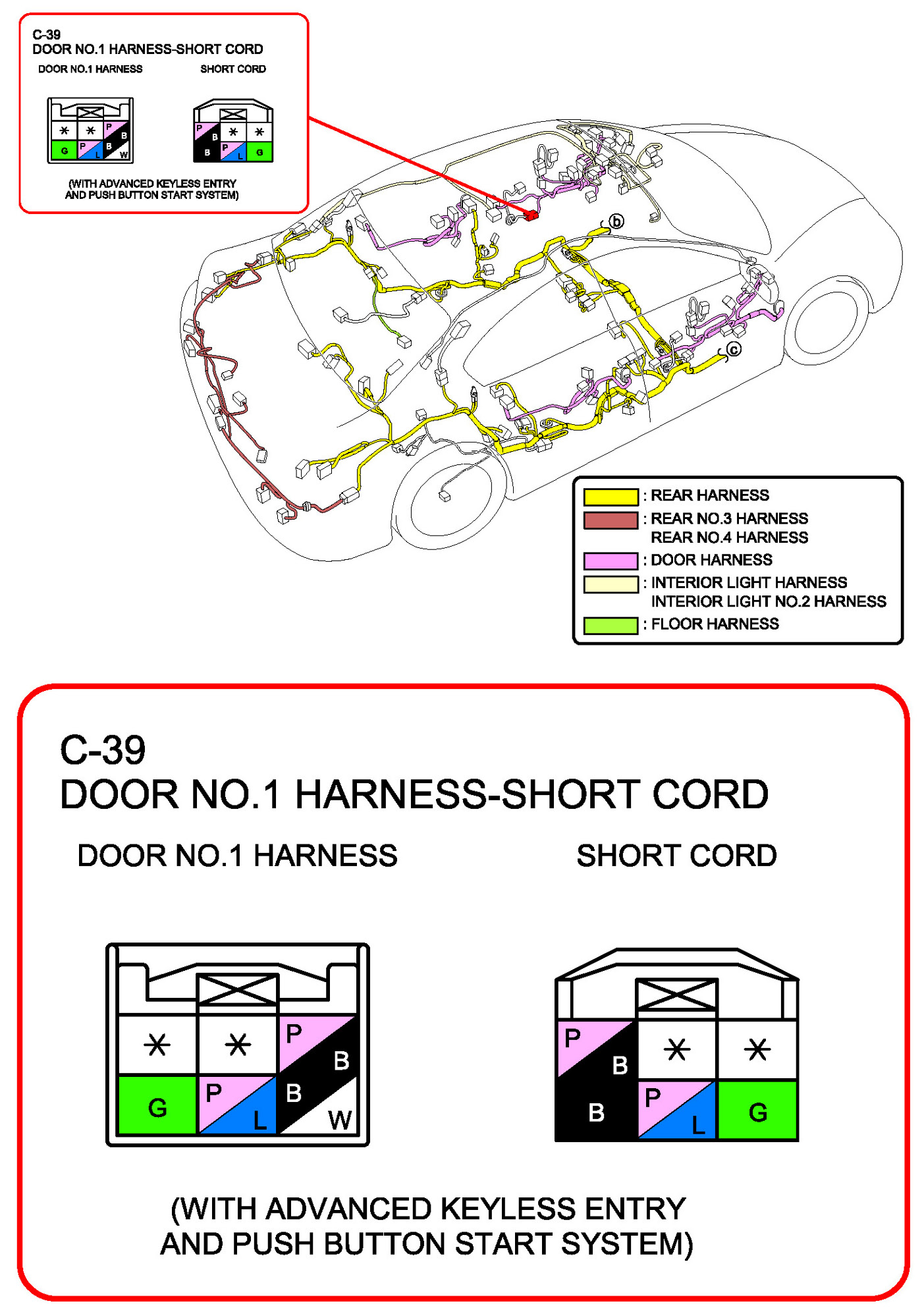

C-39 (Door No.1 Harness-Short Cord)
