Power Liftgate (PLG) Rear Switch Inspection

POWER LIFTGATE (PLG) REAR SWITCH INSPECTION

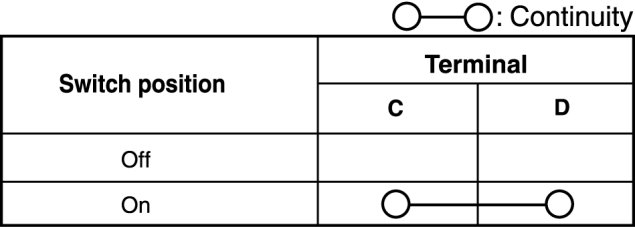

1. Verify that the continuity between the PLG rear switch terminals is as indicated in the table.






- If not as indicated in the table, replace the PLG rear switch.

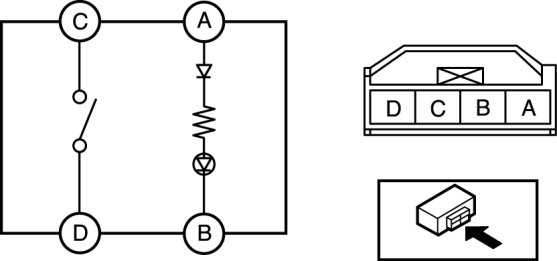

2. Apply battery voltage to PLG rear switch terminal A, and connect terminal B to ground.

3. Verify that the LED illuminates.

- If there is any malfunction, replace the PLG rear switch.
