Power Liftgate (PLG) Front Switch Removal/Installation





POWER LIFTGATE (PLG) FRONT SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. (Driver's side) Dashboard Under Cover Removal/Installation

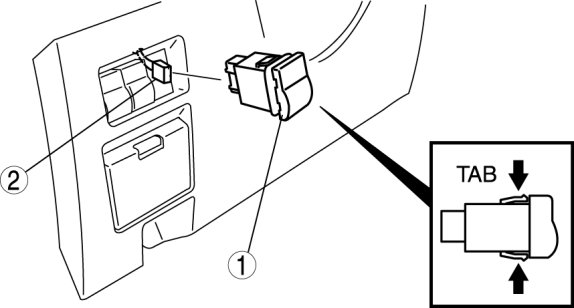

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
