Hazard Warning Switch: Testing and Inspection

HAZARD WARNING SWITCH INSPECTION

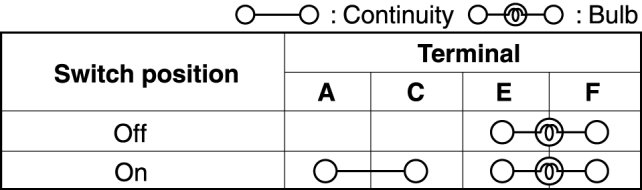

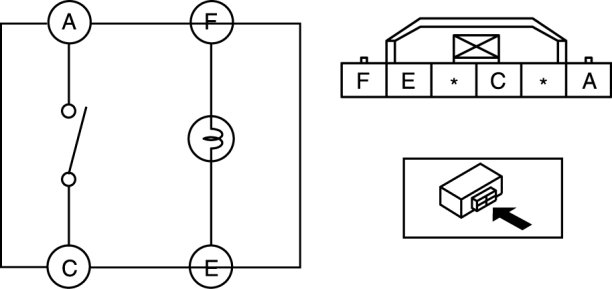

1. Verify that the continuity between the hazard warning switch terminals is as indicated in the table.






- If not as indicated in the table, replace the hazard warning switch.
