Hazard Warning Switch: Service and Repair

HAZARD WARNING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Indicator Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Center panel Center Panel Removal/Installation

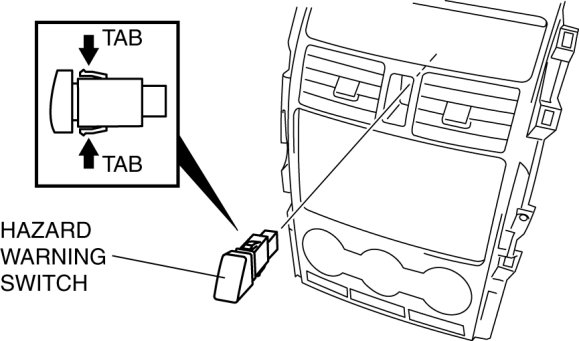

3. Remove in hazard warning switch.






4. Install in the reverse order of removal.
