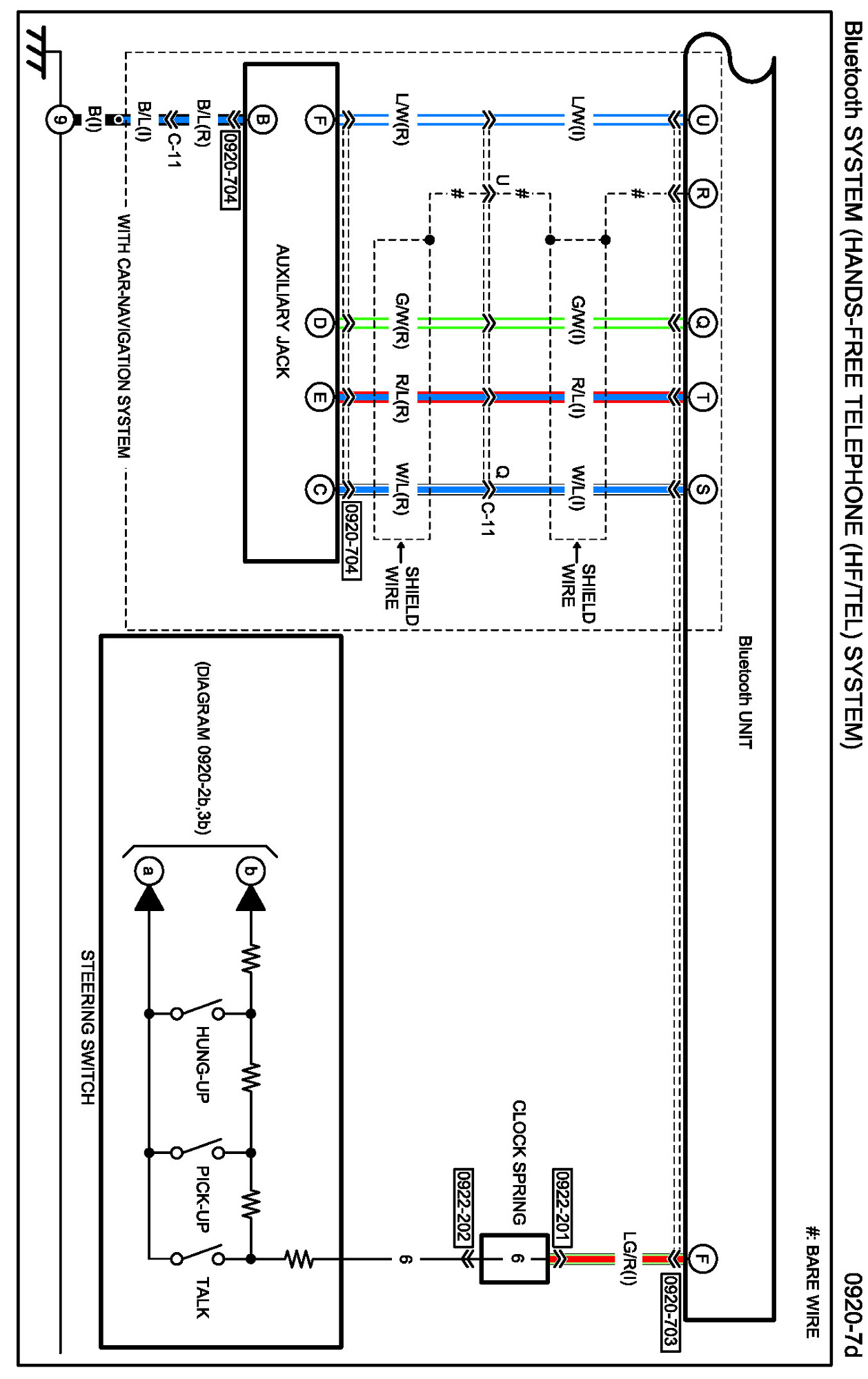

Diagram 0920-7d (Bluetooth System (Hands-Free Telephone (HF/TEL) System))
Diagram 0920-7d (Bluetooth System (Hands-Free Telephone (HF/TEL) System))
Diagram 0920-7d:
