Rear Door Limiter: Service and Repair

REAR DOOR CHECKER REMOVAL/INSTALLATION

1. Fully close the rear door glass.

2. Disconnect the negative battery cable.

3. Remove the following parts:
a. Inner sail garnish Inner Sail Garnish Removal/Installation

b. Rear door trim Rear Door Trim Removal/Installation

c. Rear door speaker Rear Door Speaker Removal/Installation

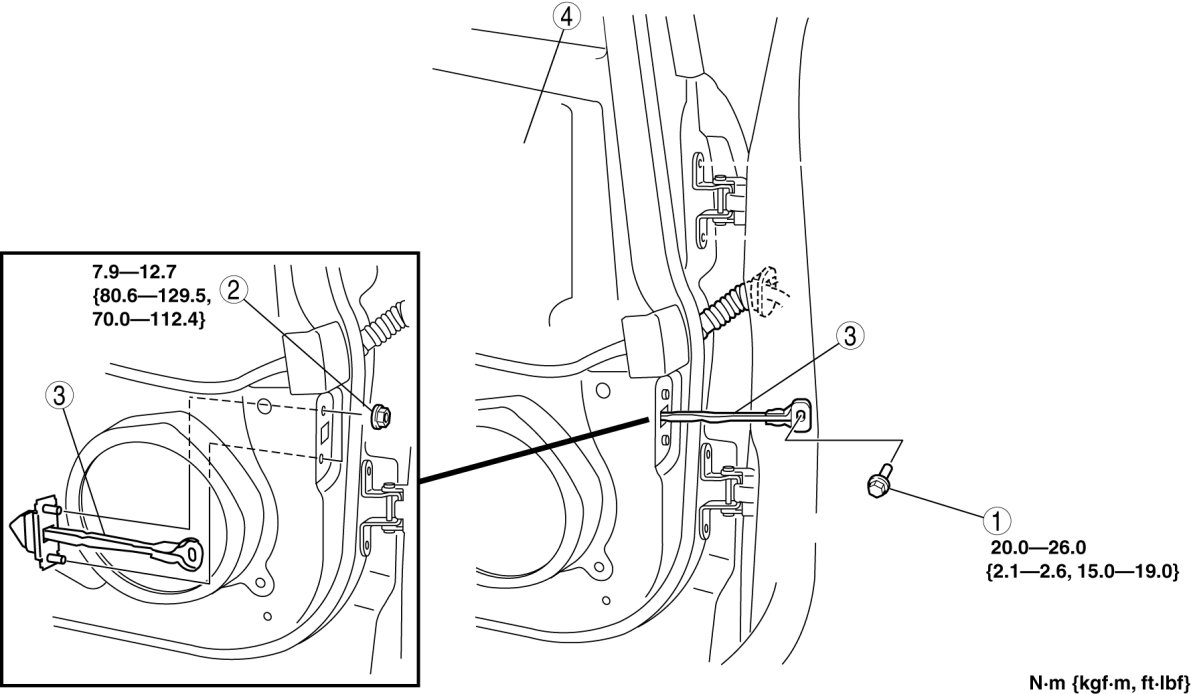

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
