Rear Door Latch: Service and Repair

REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Inner sail garnish. Inner Sail Garnish Removal/Installation

b. Rear door trim Rear Door Trim Removal/Installation

c. Rear door speaker Rear Door Speaker Removal/Installation

d. Rear door glass Service and Repair

e. Rear door module panel Rear Door Module Panel Removal/Installation

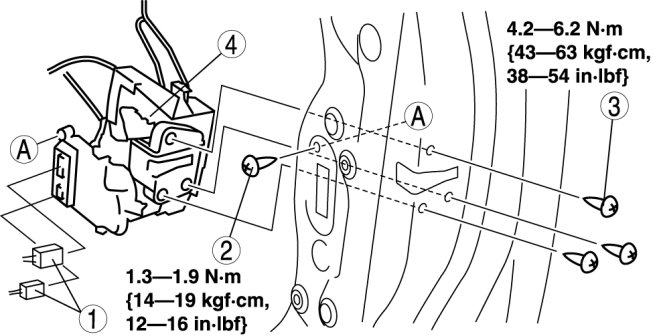

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
