Rear Wiper Motor Removal/Installation

REAR WIPER MOTOR REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Rear wiper arm and blade Rear Wiper Arm And Blade Removal/Installation

b. Liftgate upper trim

c. Liftgate side trim

d. Liftgate lower trim

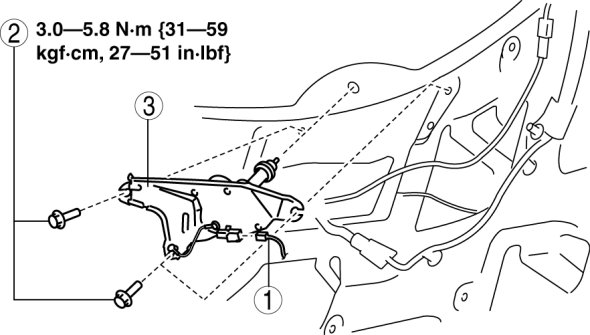

3. Remove in the order indicated in the table.










4. Install in the reverse order of removal.
