Headlamp Alignment Switch: Testing and Inspection





HEADLIGHT LEVELING SWITCH INSPECTION

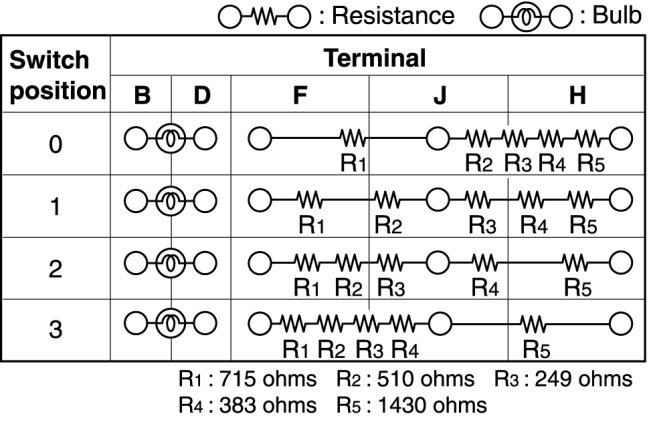

1. Verify that continuity between the headlight leveling switch terminals is as indicated in the table.






- If not as indicated in the table, replace the headlight leveling switch.
