Headlamp Alignment Switch: Service and Repair

HEADLIGHT LEVELING SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover. (Driver side) Dashboard Under Cover Removal/Installation

3. Remove the hood release lever. Service and Repair

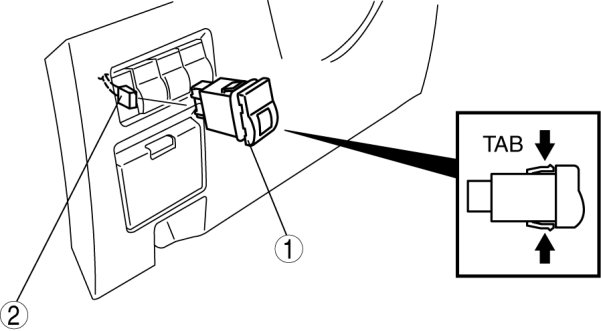

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.
