Fog/Driving Lamp Switch: Testing and Inspection

FRONT FOG LIGHT SWITCH INSPECTION

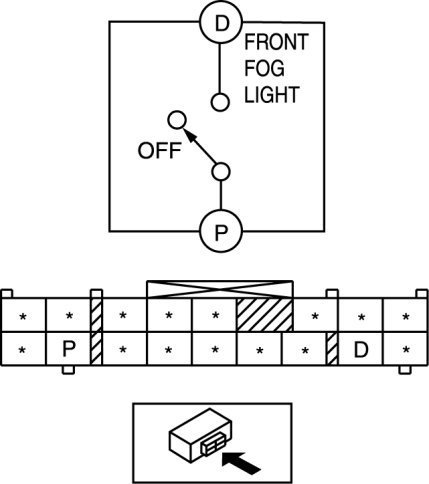

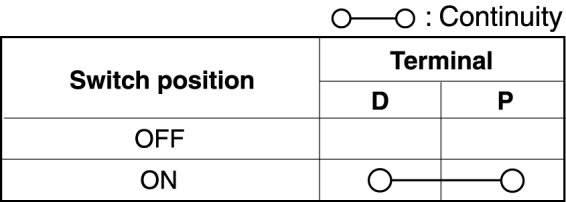

1. Verify that continuity between the front fog light switch terminals is as indicated in the table.
