Power Seat Switch Inspection





POWER SEAT SWITCH INSPECTION

1. Disconnect the power seat switch connector.

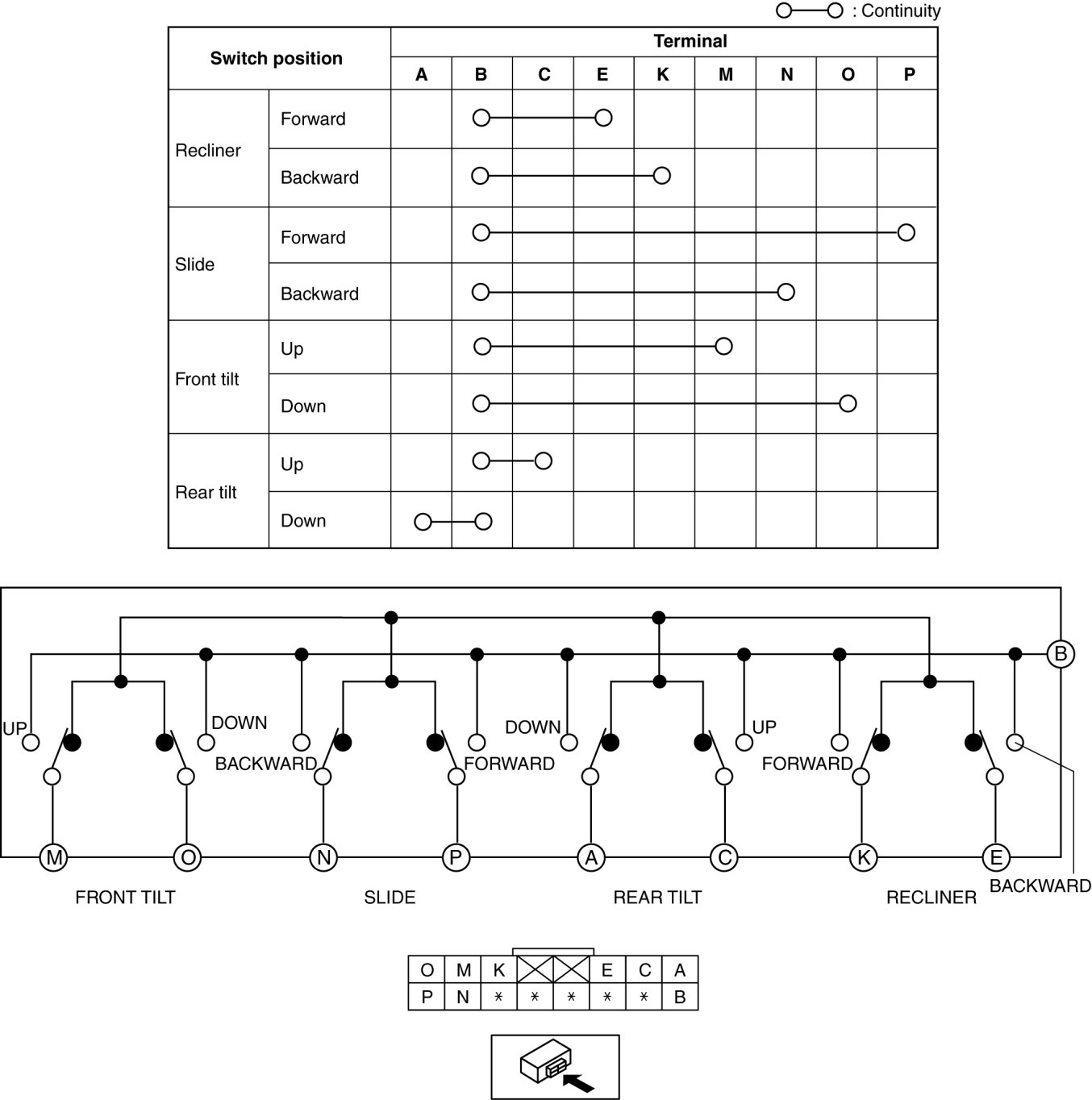

2. Inspect for continuity between the power seat switch connector terminals using an ohmmeter.

- If not as specified, replace the power seat switch.
