Lumbar Support Switch Inspection

LUMBAR SUPPORT SWITCH INSPECTION

1. Disconnect the lumbar support switch connector.

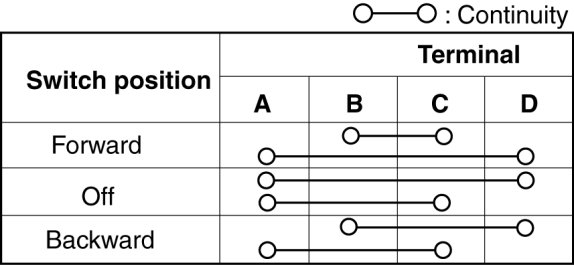

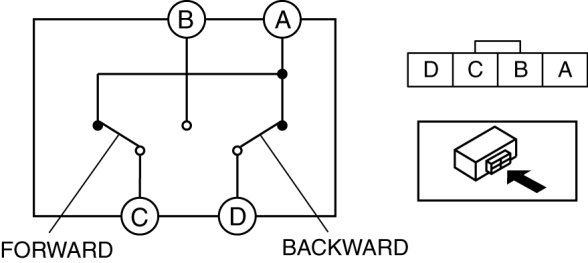

2. Inspect for continuity between the lumbar support switch connector terminals.






- If not as specified, replace the lumbar support switch.
