General Procedures (Suspension)

GENERAL PROCEDURES (SUSPENSION)

Wheels and Tires Removal/Installation

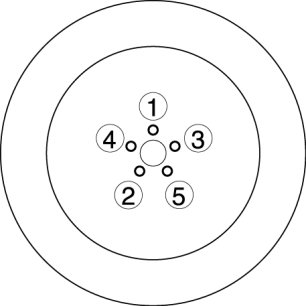

1. When installing the wheels and tires, tighten the wheel nuts in a criss-cross pattern to the following tightening torque.






Tightening torque
- 107.8-147.0 Nm {11.0-14.9 kgf-m, 79.6-108.4 ft-lbf}
