Drive Belt Tensioner: Testing and Inspection

DRIVE BELT AUTO TENSIONER INSPECTION [MZI-3.7]

1. Remove the engine cover. Engine Cover Removal/Installation

2. Remove the front wheel and tire (RH). Service and Repair

3. Remove the splash shield (RH).

4. Remove the generator and A/C drive belt. Service and Repair

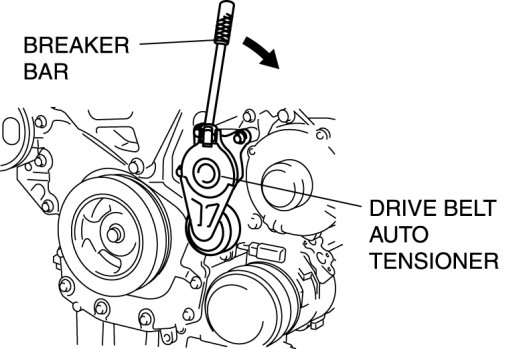

5. Verify that the drive belt auto tensioner moves smoothly in the operational direction.

- Replace the drive belt auto tensioner if necessary.





Tightening torque
- 8.9-12.1 Nm {91-123 kgf-cm, 79-107 in-lbf}

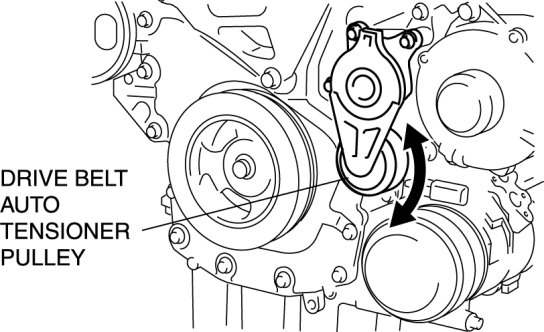

6. Turn the drive belt auto tensioner pulley by hand and verify that it rotates smoothly.

- Replace the drive belt auto tensioner if necessary.





Tightening torque
- 8.9-12.1 Nm {91-123 kgf-cm, 79-107 in-lbf}

7. Install in the reverse order of removal.
