Home >> Mazda >> 2012 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0918-8 (Trailer Tow)

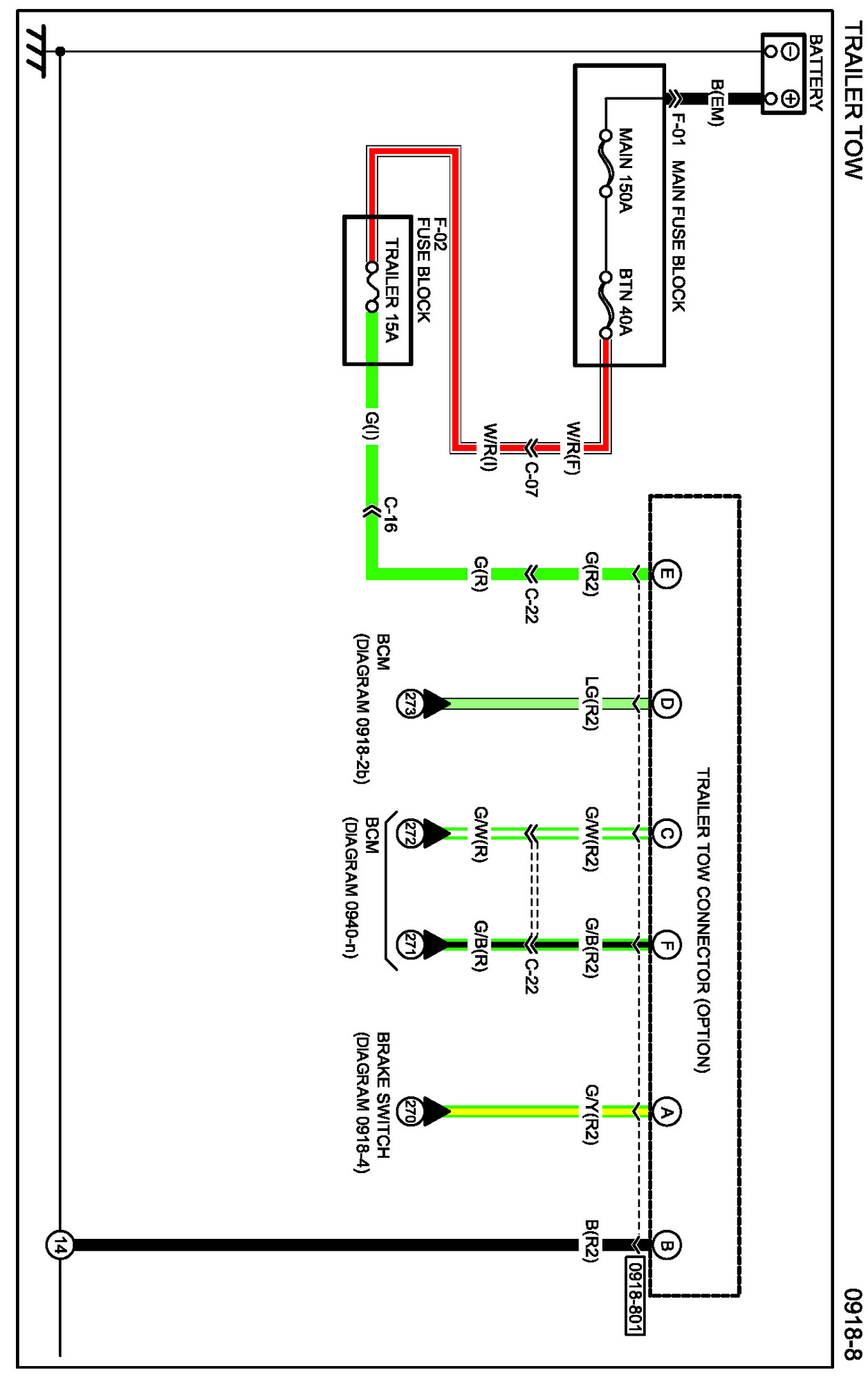

Diagram 0918-8 (Trailer Tow)

Diagram 0918-8:
