Home >> Mazda >> 2012 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Diagrams By Diagram Name >> Diagram 0913-1 (Seat Warmer)

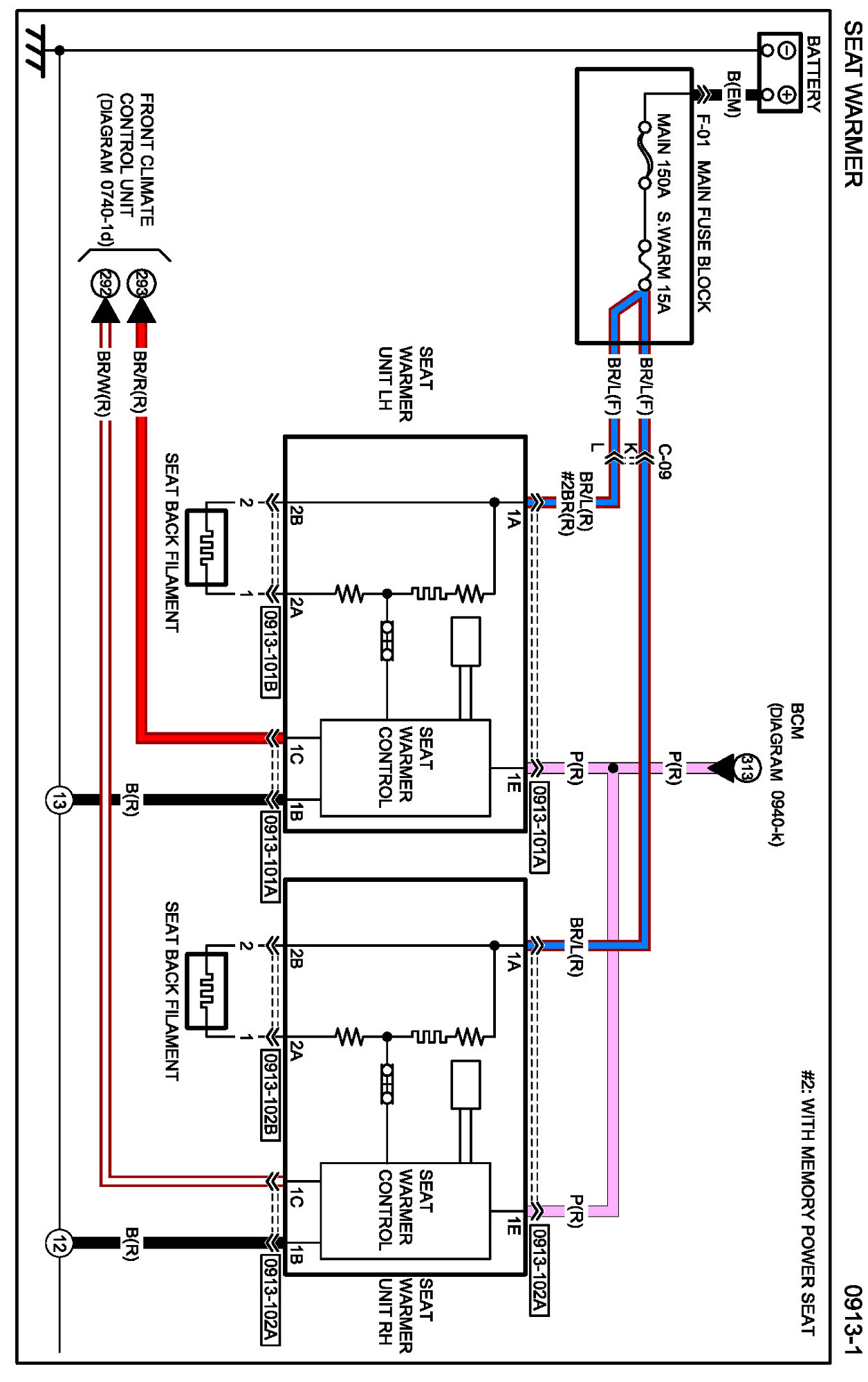

Diagram 0913-1 (Seat Warmer)

Diagram 0913-1:
