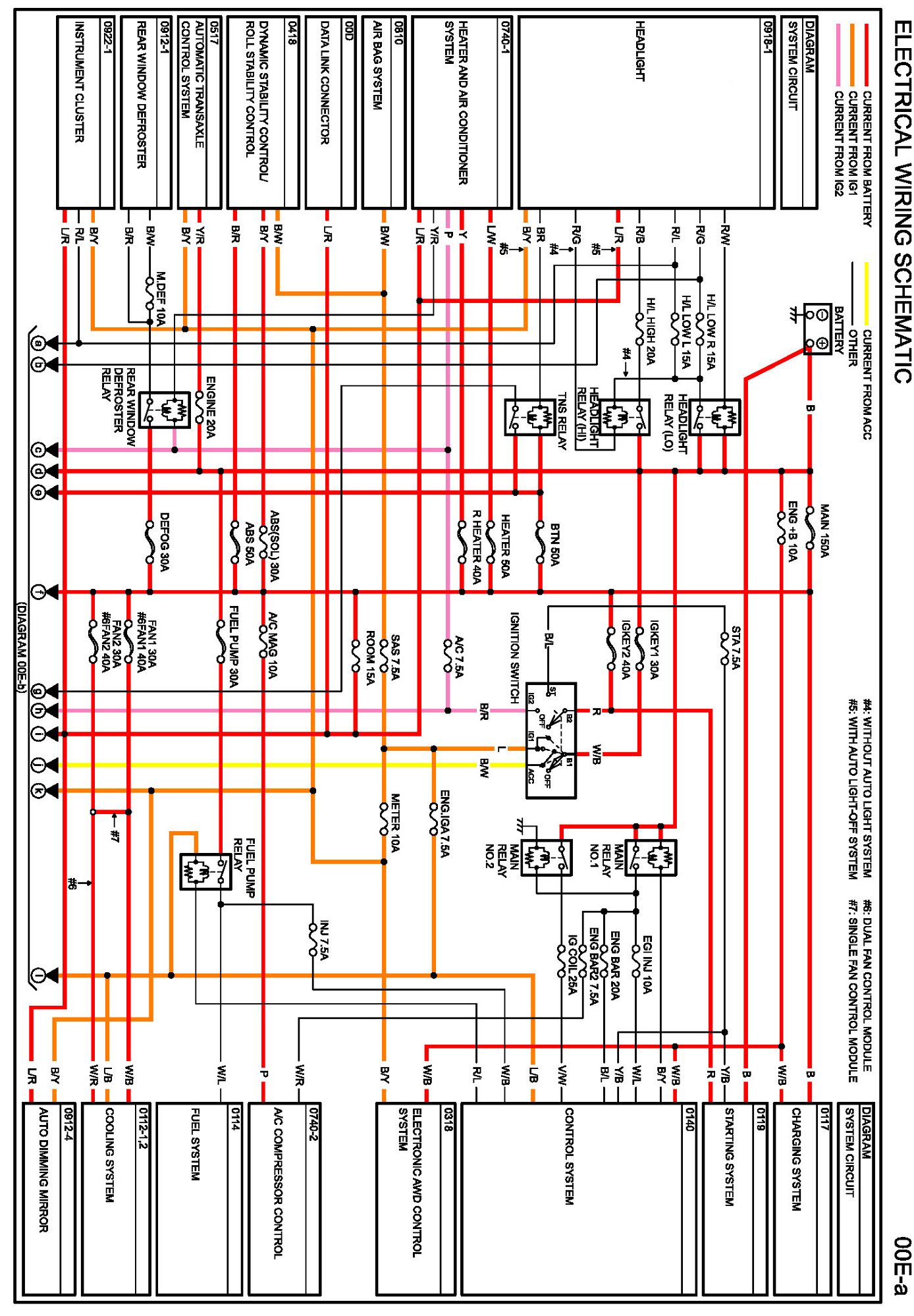

Diagram 00E-a (Electrical Wiring Schematic)
Diagram 00E-a (Electrical Wiring Schematic)
Diagram 00E-a:
