Home >> Mazda >> 2012 >> CX-9 AWD V6-3.7L >> Repair and Diagnosis >> Diagrams >> Connectors >> C-12 (Instrument Panel Harness-Door No.1 Harness)

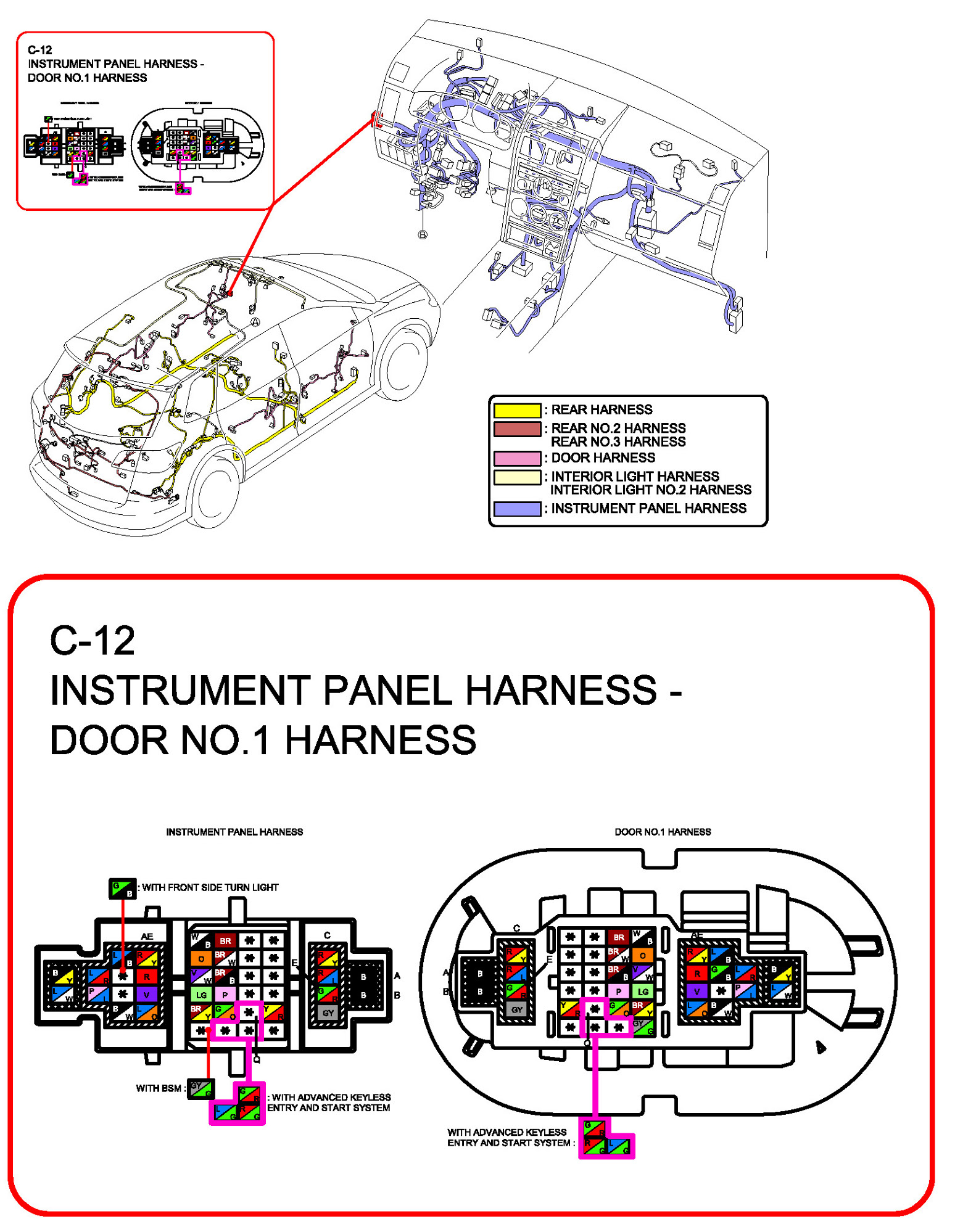

C-12 (Instrument Panel Harness-Door No.1 Harness)
