Cabin Noise Sensor: Service and Repair

(R)

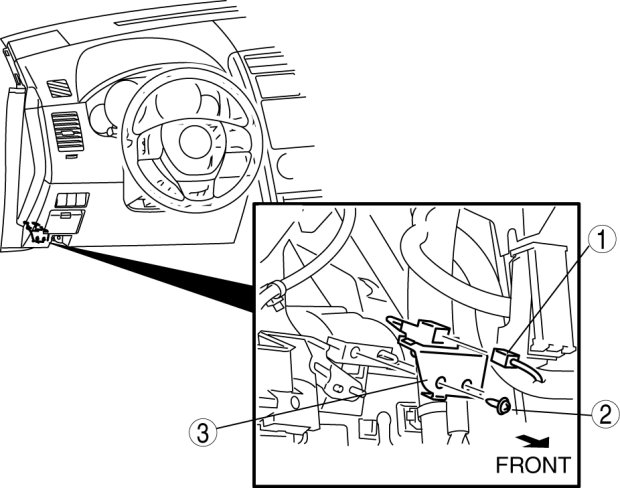

AudioPilot(R)2 MICROPHONE REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

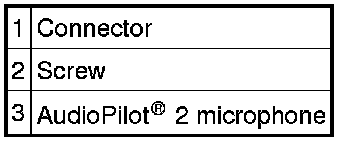

2. Remove in the order indicated in the table.










3. Install in the reverse order of removal.
