Blind Spot Switch: Testing and Inspection

BLIND SPOT MONITORING (BSM) OFF SWITCH INSPECTION

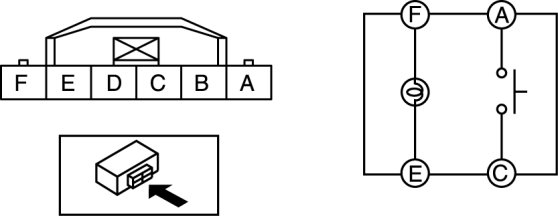

1. Remove the BSM OFF switch. Service and Repair

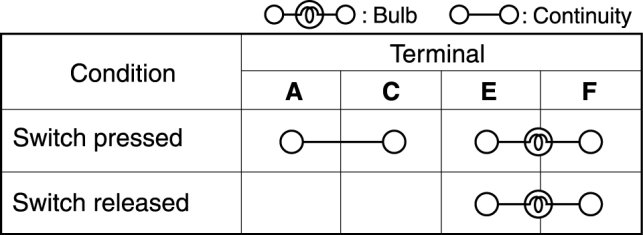

2. Verify that the continuity is as indicated in the table.






- If not as indicated in the table, replace the BSM OFF switch.
