Blind Spot Switch: Service and Repair

BLIND SPOT MONITORING (BSM) OFF SWITCH REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the dashboard under cover (LH). Dashboard Under Cover Removal/Installation

3. Remove the hood release lever. Service and Repair

4. Remove in the order indicated in the table.










5. Install in the reverse order of removal.

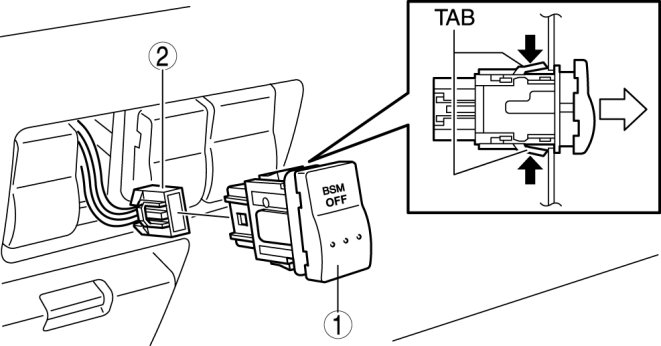

BSM OFF Switch Removal Note

1. Access the BSM OFF switch from behind of the dashboard, and squeeze the tabs of the switch.

2. Remove the BSM OFF switch from the dashboard.
