No. 8 No Sound Sourced By External Devices From Speaker





NO.8 NO SOUND SOURCED BY EXTERNAL DEVICES FROM SPEAKER [REAR ENTERTAINMENT SYSTEM (RES)]

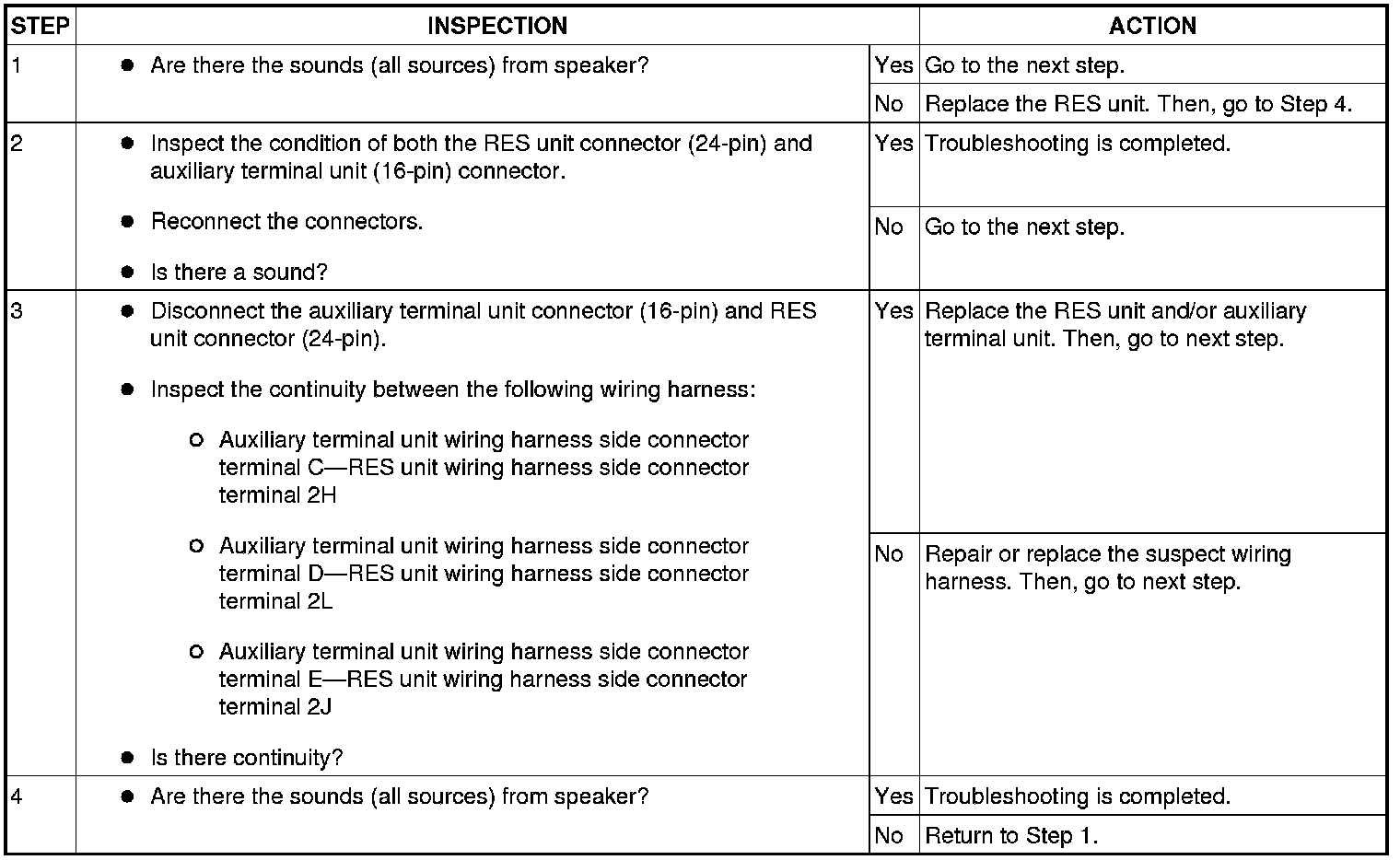

Diagnostic procedure
