Antenna Feeder No. 2 Inspection

ANTENNA FEEDER NO.2 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front scuff plate inner (RH) Front Scuff Plate Removal/Installation

b. Front side trim (RH) Front Side Trim Removal/Installation

c. Liftgate upper trim

3. Disconnect the antenna feeder No.1. Antenna Feeder No. 1 Removal/Installation

4. Disconnect the antenna feeder No.2 connector. Antenna Feeder No. 2 Removal/Installation

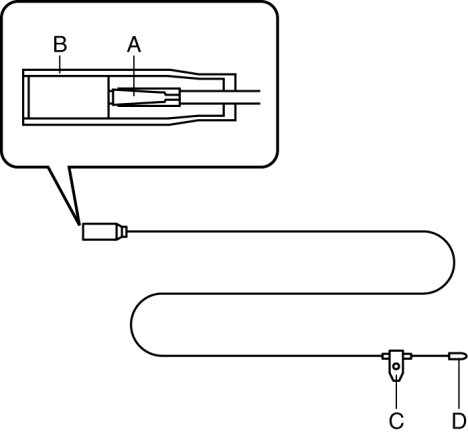

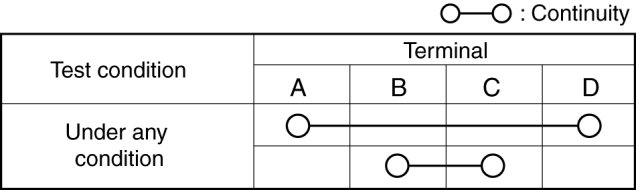

5. Verify that the continuity between antenna feeder No.2 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.2.
