Antenna Feeder No. 1 Inspection

ANTENNA FEEDER NO.1 INSPECTION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Front console box mat Front Console Box Mat Removal/Installation

b. Indicator panel Indicator Panel Removal/Installation

c. Decoration panel Decoration Panel Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Center panel Center Panel Removal/Installation

f. Audio unit (with audio system) Audio Unit Removal/Installation

g. Car-navigation unit (with car-navigation system) Service and Repair

h. Front scuff plate inner (RH) Front Scuff Plate Removal/Installation

i. Front side trim (RH) Front Side Trim Removal/Installation

3. Disconnect the antenna feeder No.2. Antenna Feeder No. 2 Removal/Installation

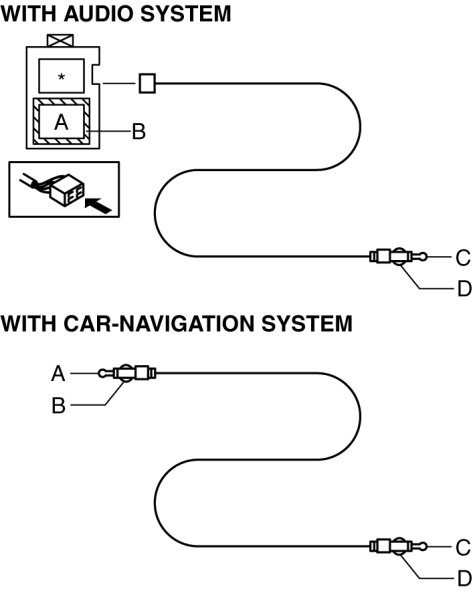

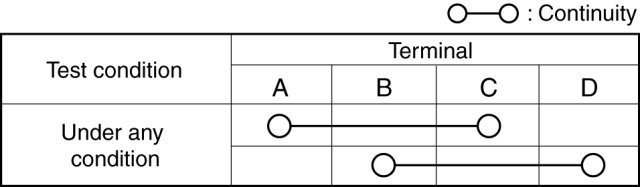

4. Verify that the continuity between antenna feeder No.1 terminals is as indicated in the table.






- If not as indicated in the table, replace antenna feeder No.1.
