Sirius Satellite Radio Antenna Feeder Removal/Installation

SIRIUS SATELLITE RADIO ANTENNA FEEDER REMOVAL/INSTALLATION

NOTE:

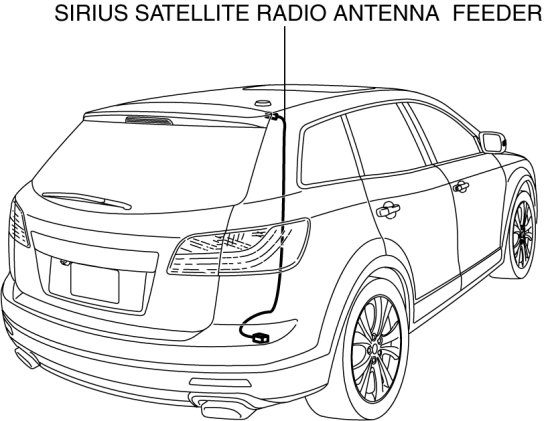

- SIRIUS satellite radio antenna feeder is integrated with the rear wiring harness.

Removal

1. Remove the rear wiring harness.

Installation

CAUTION:
- If the SIRIUS satellite radio antenna feeder is installed with tension on the cable and wiring harness it could result in loosening of the connection areas and poor contact. When installing and connecting the antenna feeder, always make sure there is slack on the cable and wiring harness.

NOTE:
- When installing a new SIRIUS satellite radio antenna feeder, secure it to the vehicle wiring harness along the installation route of the old SIRIUS satellite radio antenna feeder.
