Antenna Feeder No. 1 Removal/Installation

ANTENNA FEEDER NO.1 REMOVAL/INSTALLATION

1. Disconnect the negative battery cable.

2. Remove the following parts:
a. Decoration panel Decoration Panel Removal/Installation

b. Front console box mat Front Console Box Mat Removal/Installation

c. Indicator panel Automatic Transaxle Shift Mechanism Removal/Installation

d. Front console box Front Console Box Removal/Installation

e. Dashboard under cover Dashboard Under Cover Removal/Installation

f. Side wall Side Wall Removal/Installation

g. Console panel Console Panel Removal/Installation

h. Console cover Console Cover Removal/Installation

i. Console Console Removal/Installation

j. Front scuff plate inner Front Scuff Plate Removal/Installation

k. Front side trim Front Side Trim Removal/Installation

l. Glove compartment Service and Repair

m. Hood release lever Service and Repair

n. Lower panel Lower Panel Removal/Installation

o. Column cover Service and Repair

p. Driver-side air bag module Two-Step Deployment Control System Standard Deployment Control System

q. Steering wheel Service and Repair

r. Combination switch Removal and Replacement

s. Center panel Center Panel Removal/Installation

t. Meter hood Meter Hood Removal/Installation

u. Instrument cluster Removal and Replacement

v. Audio unit (with audio system) Audio Unit Removal/Installation

w. Car-navigation unit (with car-navigation system) Service and Repair

x. Steering shaft Service and Repair

y. A-pillar trim A-Pillar Trim Removal/Installation

z. Side panel Side Panel Removal/Installation

3. Disconnect the front door wiring harness connector (Driver side). (See Front Door Module Panel Removal/Installation.)

4. Disconnect the dashboard harness connectors.

5. Remove the brake switch from the brake pedal with the brake switch connector connected. Service and Repair

6. Remove the selector lever component. Automatic Transaxle Shift Mechanism Removal/Installation

7. Remove the windshield wiper arm and blade. Windshield Wiper Arm And Blade Removal/Installation

8. Remove the cowl grille. Cowl Grille Removal/Installation

9. Remove the windshield wiper motor. Windshield Wiper Motor Removal/Installation

10. Remove in the dashboard. Dashboard Removal/Installation

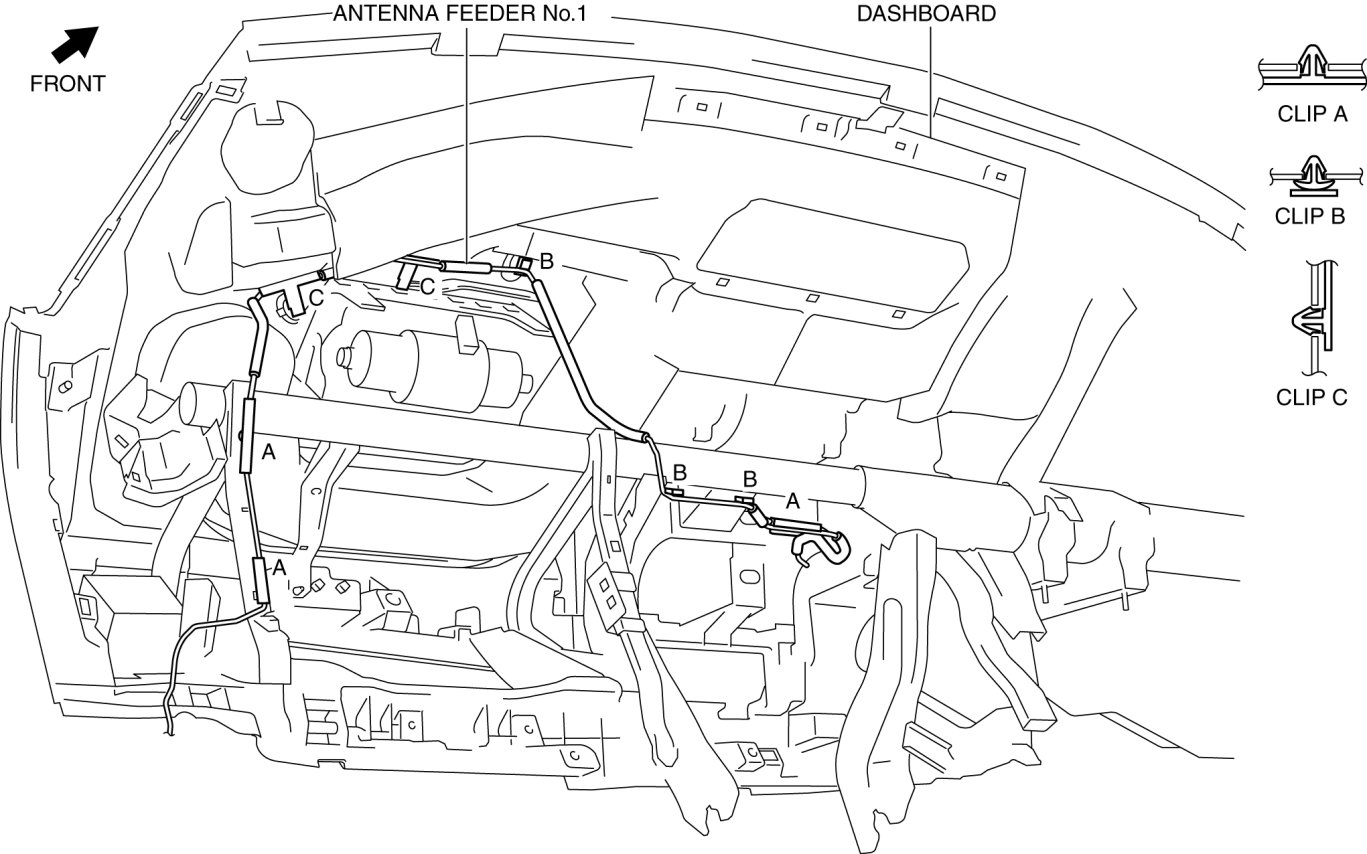

11. Remove in the clip A, B, and C.

12. Remove in the antenna feeder No.1.

13. Install in the reverse order of removal.
